FHRM

Schema FHRM.xsd

schema location:	FHRM.xsd
attribute form default:
element form default:	qualified
targetNamespace:	http://water.eionet.europa.eu/schemas/dir200760ec

Elements	Complex types
FHRM	ArtificialWaterBearingInfrastructure
	CulturalHeritageConsequence
	EconomicActivity

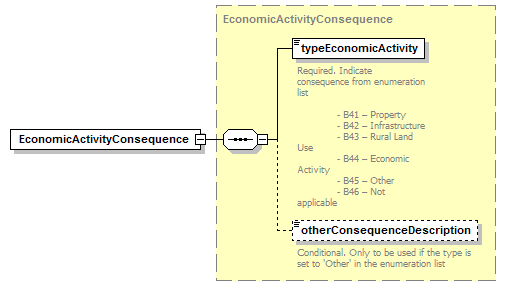

	EconomicActivityConsequence
	Environment
	EnvironmentalConsequences
	EPRTRCodes
	ExposedElement
	FHRM
	FloodHazardMaps
	FloodRiskMap
	Fluvial
	Groundwater

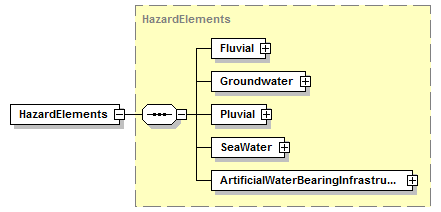

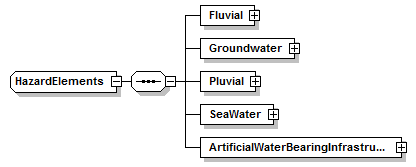

	HazardElements
	High
	HighProbability
	HighScenario

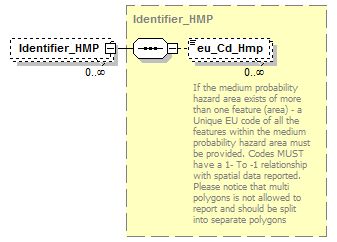

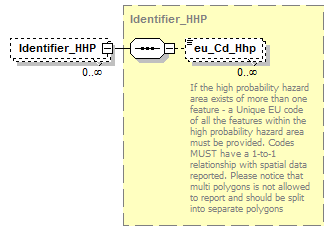

	Identifier_HHP
	Identifier_HLP
	Identifier_HMP
	IEDInstallations
	InhabitantsAffected
	Low
	LowProbability
	Medium
	MediumProbability
	MediumScenario
	NACECodes
	OtherConsequences

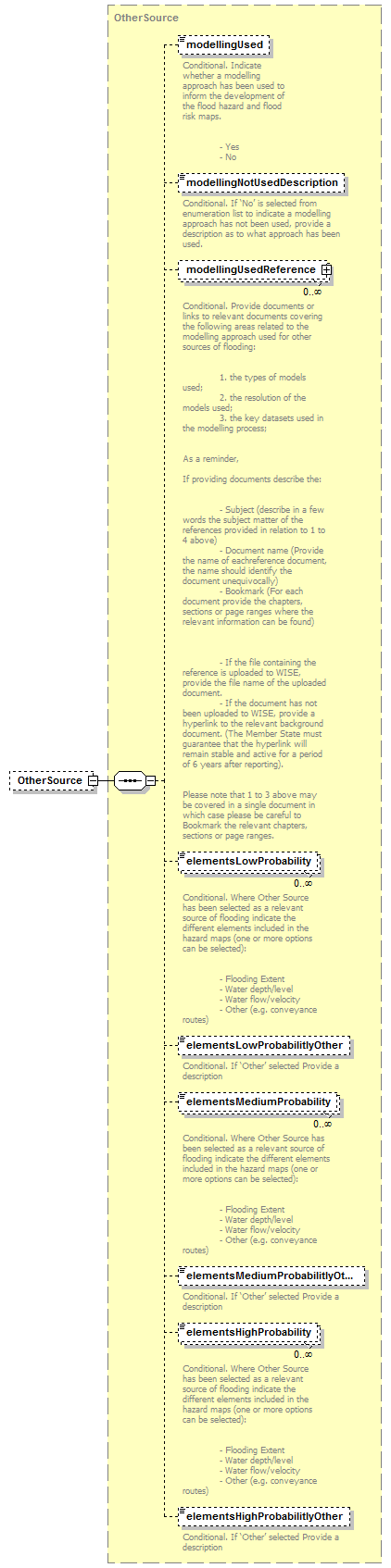

	OtherSource
	OtherTypeofPotentialConsequences
	Pluvial
	Probability
	ProtectedAreas

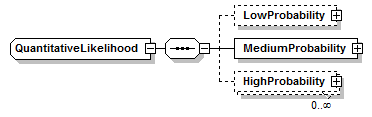

	QuantitativeLikelihood

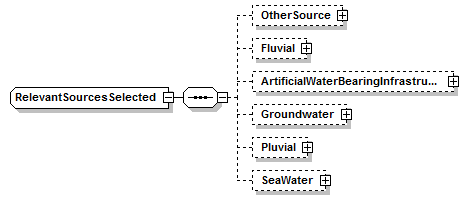

	RelevantSourcesSelected
	SeaWater
	Summary1
	Summary3
	Summary4
	Summary5

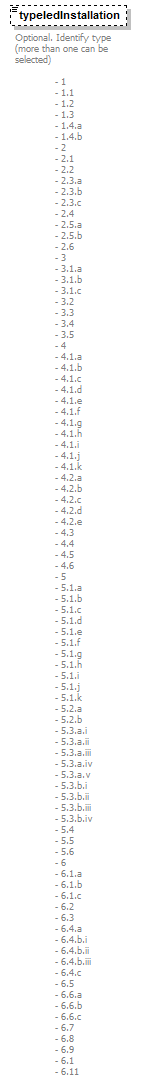

	TypeIEDInstallations
	TypeofFloods

schema location:	common.xsd
attribute form default:
element form default:	qualified
targetNamespace:	http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

Complex types	Simple types
ReferenceType	Article_6.6_Justification_Enum
	Article_6.7_Justification_Enum
	CategoryFloods_Enum
	CharacteristicsofFlooding_Enum
	ClimateChange_Enum
	ConsultationStakeholdersInvolved_Enum
	ConsultationStakeholdersInvolvedMechanisms_Enum
	CoordinateType
	CoordinationFRMPandRBMP_Enum
	CountryCode_enum
	CriteriaForDeterminationFloodRisk_Enum
	CriteriaForExclusionOrInclusion_Enum
	DataConfidentialityClassificationCode_Enum
	DateTypeYearType
	ElementsProbability_Enum
	FeatureUniqueCodeType
	FeatureUniqueCodeTypeEX
	FeatureUniqueEUCodeType
	FloodSourcesMapped_Enum
	GeographicScale_Enum
	HistorialSignificantFloodsCriteria_Enum
	ImpactPublicParticipation_Enum
	InternationalInformationExchange_Enum
	IssuesArticle4.2.d_Enum
	LanguageCode_Enum
	LocalNationalInternationalCoordination_Enum
	MeasureAspect_Enum
	MeasureCodesProgress_Enum
	MeasureType_Enum
	MechanismofFlooding_Enum
	MechanismsOfInternationalCoordination_Enum
	NumberDecimalBaseType
	NumberDecimalType
	NumberExceptionType
	NumberNonNegativeIntegerType
	NumberPercentageBaseType
	NumberPercentageType
	PotentialAdverseConsequencesCriteria_Enum
	PriorityCategories_Enum
	ProtectedAreaType_Enum
	PublicConsultationsMechanisms_Enum
	RelavantSources_Enum
	ReturnperiondandprobabiltiesApproach_Enum
	SourceofFlooding_Enum
	String1000Type
	String100Type
	String2000Type
	String250Type
	String5000Type
	String50Type
	TotalDamageClass_Enum
	TypeCulturalHeritage_Enum
	TypeEconomicActivity_Enum
	TypeEnvironment_Enum
	TypeHumanHealth_Enum
	URLType
	WiseDate
	WiseDateTime
	WiseDateTimeType
	WiseEvolutionTypeValue
	WiseLanguageCode_Enum
	WiseYear
	WiseYearMonth
	YearMonthType
	YesCode
	YesNoCode

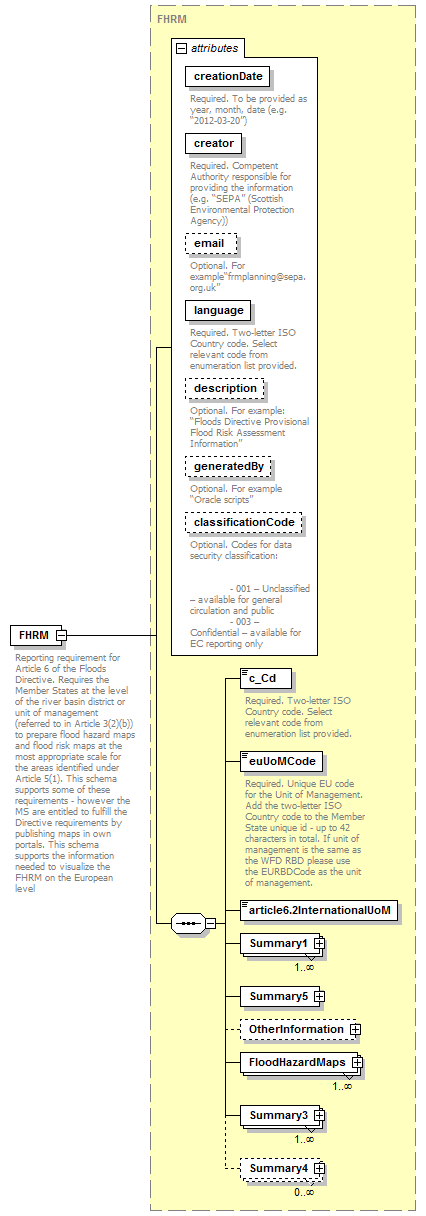

element FHRM

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

c_Cd euUoMCode article6.2InternationalUoM Summary1 Summary5 OtherInformation FloodHazardMaps Summary3 Summary4

Required. To be provided as year, month, date (e.g. “2012-03-20”)

Required. Competent Authority responsible for providing the information (e.g. “SEPA” (Scottish Environmental Protection Agency))

xs:string

optional

documentation

Optional. For example“frmplanning@sepa.org.uk”

Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.

Optional. For example: “Floods Directive Provisional Flood Risk Assessment Information”

Optional. For example “Oracle scripts”

classificationCode

DataConfidentialityClassificationCode_Enum

optional

documentation

Optional. Codes for data security classification:

- 001 – Unclassified – available for general circulation and public
- 003 – Confidential – available for EC reporting only

annotation

documentation

Reporting requirement for Article 6 of the Floods Directive. Requires the Member States at the level of the river basin district or unit of management (referred to in Article 3(2)(b)) to prepare flood hazard maps and flood risk maps at the most appropriate scale for the areas identified under Article 5(1). This schema supports some of these requirements - however the MS are entitled to fulfill the Directive requirements by publishing maps in own portals. This schema supports the information needed to visualize the FHRM on the European level

source

<xs:element name="FHRM" type="FHRM">
<xs:annotation>
<xs:documentation>Reporting requirement for Article 6 of the Floods Directive. Requires the Member States at the level of the river basin district or unit of management (referred to in Article 3(2)(b)) to prepare flood hazard maps and flood risk maps at the most appropriate scale for the areas identified under Article 5(1). This schema supports some of these requirements - however the MS are entitled to fulfill the Directive requirements by publishing maps in own portals. This schema supports the information needed to visualize the FHRM on the European level</xs:documentation>
</xs:annotation>
</xs:element>

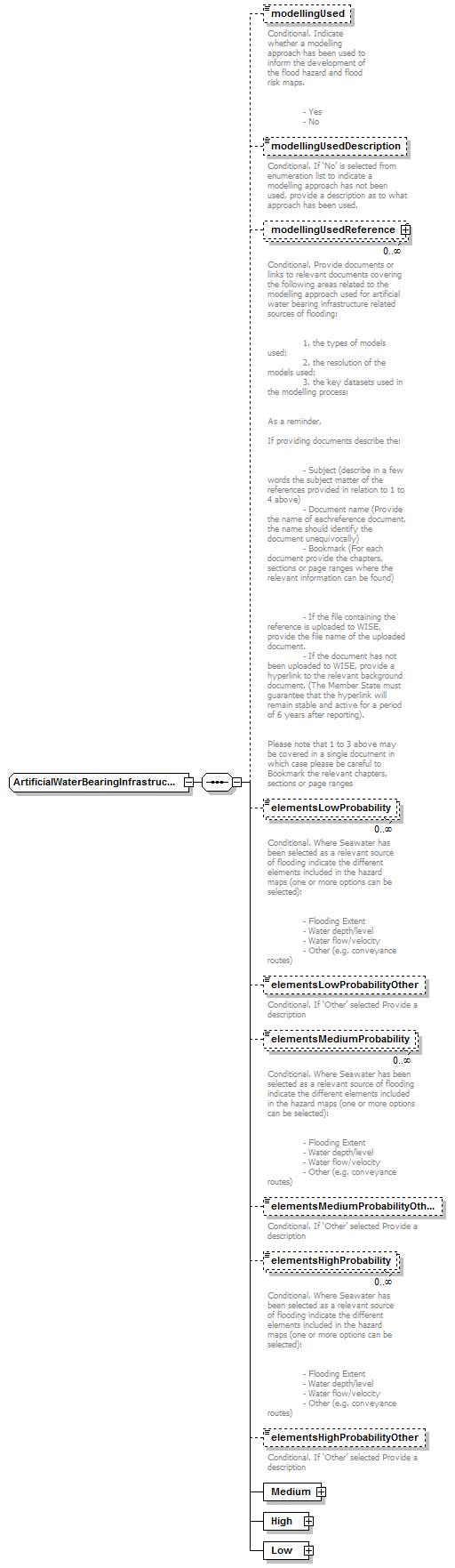

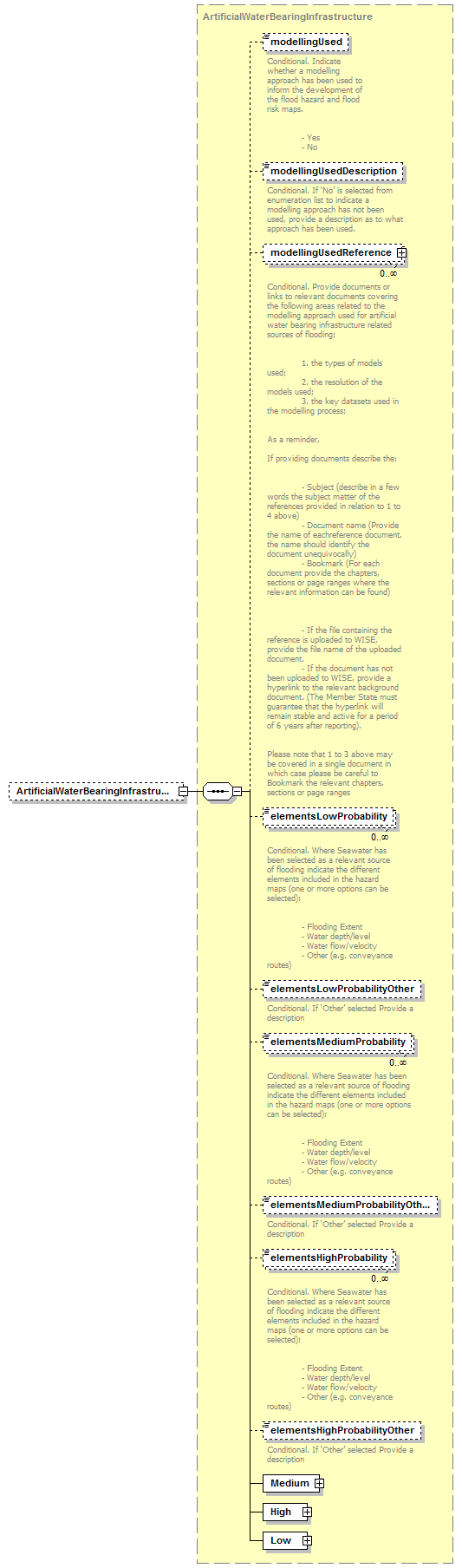

complexType ArtificialWaterBearingInfrastructure

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

modellingUsed modellingUsedDescription modellingUsedReference elementsLowProbability elementsLowProbabilityOther elementsMediumProbability elementsMediumProbabilityOther elementsHighProbability elementsHighProbabilityOther Medium High Low

used by

elements

RelevantSourcesSelected/ArtificialWaterBearingInfrastructure HazardElements/ArtificialWaterBearingInfrastructure

source

element ArtificialWaterBearingInfrastructure/modellingUsed

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

YesNoCode

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
enumeration	Y
enumeration	N
enumeration

annotation

documentation

Conditional. Indicate whether a modelling approach has been used to inform the development of the flood hazard and flood risk maps.

- Yes
- No

source

<xs:element name="modellingUsed" type="fd:YesNoCode" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. Indicate whether a modelling approach has been used to inform the development of the flood hazard and flood risk maps.

- Yes
- No</xs:documentation>
</xs:annotation>
</xs:element>

element ArtificialWaterBearingInfrastructure/modellingUsedDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘No’ is selected from enumeration list to indicate a modelling approach has not been used, provide a description as to what approach has been used.

source

<xs:element name="modellingUsedDescription" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘No’ is selected from enumeration list to indicate a modelling approach has not been used, provide a description as to what approach has been used.</xs:documentation>
</xs:annotation>
</xs:element>

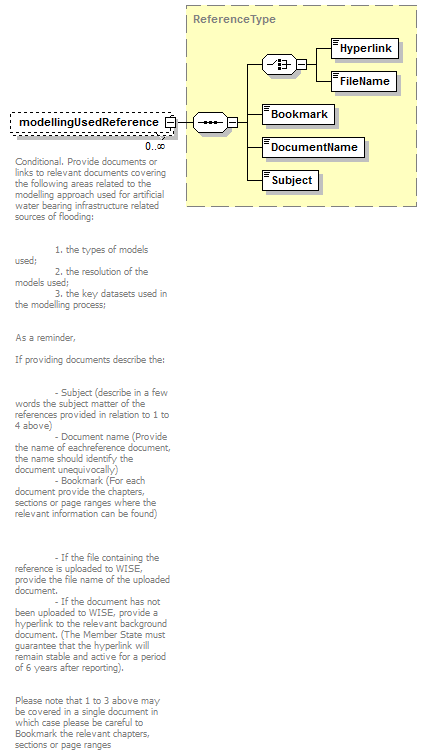

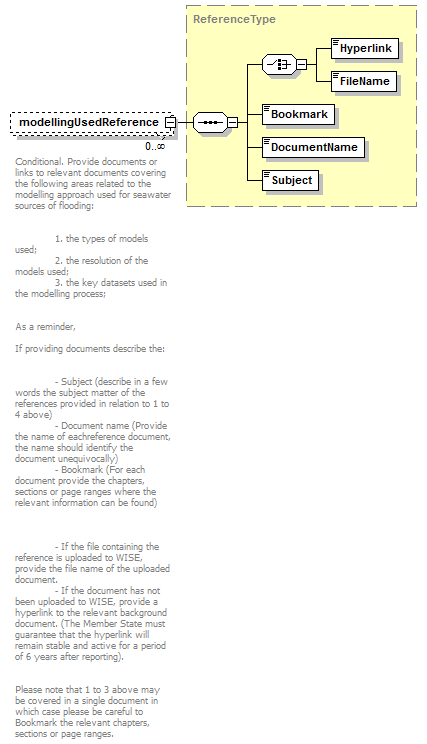

element ArtificialWaterBearingInfrastructure/modellingUsedReference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Conditional. Provide documents or links to relevant documents covering the following areas related to the modelling approach used for artificial water bearing infrastructure related sources of flooding:

1. the types of models used;
2. the resolution of the models used;
3. the key datasets used in the modelling process;

As a reminder,

If providing documents describe the:

- Subject (describe in a few words the subject matter of the references provided in relation to 1 to 4 above)
- Document name (Provide the name of eachreference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the chapters, sections or page ranges where the relevant information can be found)

- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).

Please note that 1 to 3 above may be covered in a single document in which case please be careful to Bookmark the relevant chapters, sections or page ranges

source

<xs:element name="modellingUsedReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Provide documents or links to relevant documents covering the following areas related to the modelling approach used for artificial water bearing infrastructure related sources of flooding:

1. the types of models used;
2. the resolution of the models used;
3. the key datasets used in the modelling process;

As a reminder,

If providing documents describe the:

- Subject (describe in a few words the subject matter of the references provided in relation to 1 to 4 above)
- Document name (Provide the name of eachreference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the chapters, sections or page ranges where the relevant information can be found)

- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).

Please note that 1 to 3 above may be covered in a single document in which case please be careful to Bookmark the relevant chapters, sections or page ranges</xs:documentation>
</xs:annotation>
</xs:element>

element ArtificialWaterBearingInfrastructure/elementsLowProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ElementsProbability_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

Conditional. Where Seawater has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)

source

<xs:element name="elementsLowProbability" type="fd:ElementsProbability_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Where Seawater has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
</xs:element>

element ArtificialWaterBearingInfrastructure/elementsLowProbabilityOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected Provide a description

source

<xs:element name="elementsLowProbabilityOther" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘Other’ selected Provide a description</xs:documentation>
</xs:annotation>
</xs:element>

element ArtificialWaterBearingInfrastructure/elementsMediumProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ElementsProbability_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

source

<xs:element name="elementsMediumProbability" type="fd:ElementsProbability_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Where Seawater has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
</xs:element>

element ArtificialWaterBearingInfrastructure/elementsMediumProbabilityOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected Provide a description

source

<xs:element name="elementsMediumProbabilityOther" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘Other’ selected Provide a description</xs:documentation>
</xs:annotation>
</xs:element>

element ArtificialWaterBearingInfrastructure/elementsHighProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ElementsProbability_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

source

<xs:element name="elementsHighProbability" type="fd:ElementsProbability_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Where Seawater has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
</xs:element>

element ArtificialWaterBearingInfrastructure/elementsHighProbabilityOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected Provide a description

source

<xs:element name="elementsHighProbabilityOther" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘Other’ selected Provide a description</xs:documentation>
</xs:annotation>
</xs:element>

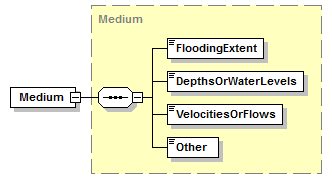

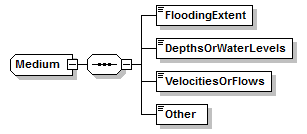

element ArtificialWaterBearingInfrastructure/Medium

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Medium

properties

isRef	0
content	complex

children

FloodingExtent DepthsOrWaterLevels VelocitiesOrFlows Other

source

<xs:element name="Medium" type="Medium"/>

element ArtificialWaterBearingInfrastructure/High

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

High

properties

isRef	0
content	complex

children

FloodingExtent DepthsOrWaterLevels VelocitiesOrFlows Other

source

<xs:element name="High" type="High"/>

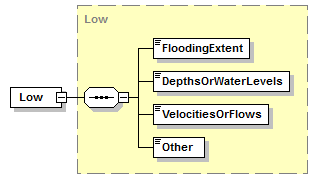

element ArtificialWaterBearingInfrastructure/Low

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Low

properties

isRef	0
content	complex

children

FloodingExtent DepthsOrWaterLevels VelocitiesOrFlows Other

source

<xs:element name="Low" type="Low"/>

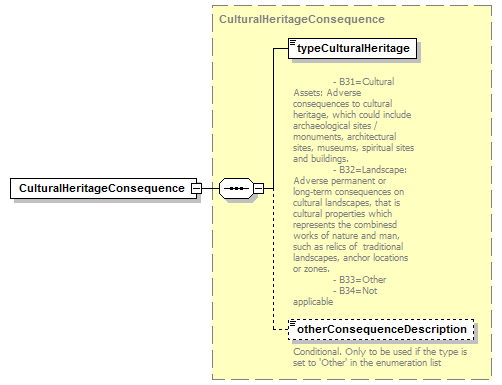

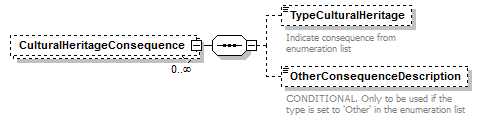

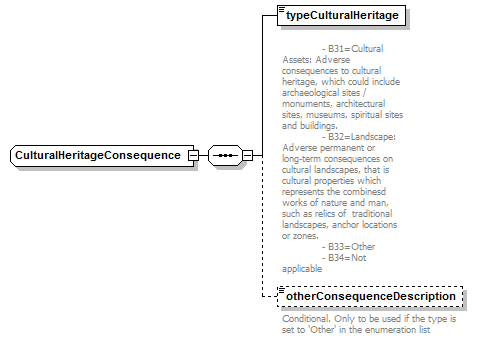

complexType CulturalHeritageConsequence

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

typeCulturalHeritage otherConsequenceDescription

used by

element

OtherConsequences/CulturalHeritageConsequence

source

<xs:complexType name="CulturalHeritageConsequence">
<xs:sequence>
    <xs:element name="typeCulturalHeritage" type="fd:TypeEnvironment_Enum">
      <xs:annotation>
        <xs:documentation>
- B31=Cultural Assets: Adverse consequences to cultural heritage, which could include archaeological sites / monuments, architectural sites, museums, spiritual sites and buildings.
- B32=Landscape: Adverse permanent or long-term consequences on cultural landscapes, that is cultural properties which represents the combinesd works of nature and man, such as relics of traditional landscapes, anchor locations or zones.
- B33=Other
- B34=Not applicable</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherConsequenceDescription" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element CulturalHeritageConsequence/typeCulturalHeritage

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

TypeEnvironment_Enum

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	B20
enumeration	B21 - Waterbody Status
enumeration	B22 - Protected Areas
enumeration	B23 - Pollution Sources
enumeration	B24 - Other potential adverse environmental impacts
enumeration	B25 - Not applicable

annotation

documentation

- B31=Cultural Assets: Adverse consequences to cultural heritage, which could include archaeological sites / monuments, architectural sites, museums, spiritual sites and buildings.
- B32=Landscape: Adverse permanent or long-term consequences on cultural landscapes, that is cultural properties which represents the combinesd works of nature and man, such as relics of traditional landscapes, anchor locations or zones.
- B33=Other
- B34=Not applicable

source

<xs:element name="typeCulturalHeritage" type="fd:TypeEnvironment_Enum">
<xs:annotation>
<xs:documentation>
- B31=Cultural Assets: Adverse consequences to cultural heritage, which could include archaeological sites / monuments, architectural sites, museums, spiritual sites and buildings.
- B32=Landscape: Adverse permanent or long-term consequences on cultural landscapes, that is cultural properties which represents the combinesd works of nature and man, such as relics of traditional landscapes, anchor locations or zones.
- B33=Other
- B34=Not applicable</xs:documentation>
</xs:annotation>
</xs:element>

element CulturalHeritageConsequence/otherConsequenceDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String250Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	250

annotation

documentation

Conditional. Only to be used if the type is set to 'Other' in the enumeration list

source

<xs:element name="otherConsequenceDescription" type="fd:String250Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
</xs:annotation>
</xs:element>

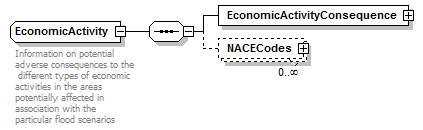

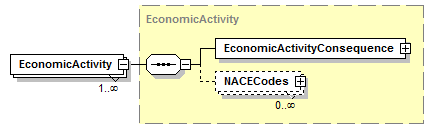

complexType EconomicActivity

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

EconomicActivityConsequence NACECodes

used by

element

ExposedElement/EconomicActivity

annotation

documentation

Information on potential adverse consequences to the different types of economic activities in the areas potentially affected in association with the particular flood scenarios

source

<xs:complexType name="EconomicActivity">
<xs:annotation>
    <xs:documentation>Information on potential adverse consequences to the different types of economic activities in the areas potentially affected in association with the particular flood scenarios</xs:documentation>
</xs:annotation>
<xs:sequence>
    <xs:element name="EconomicActivityConsequence" type="EconomicActivityConsequence"/>
    <xs:element name="NACECodes" type="NACECodes" minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>

element EconomicActivity/EconomicActivityConsequence

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

EconomicActivityConsequence

properties

isRef	0
content	complex

children

typeEconomicActivity otherConsequenceDescription

source

<xs:element name="EconomicActivityConsequence" type="EconomicActivityConsequence"/>

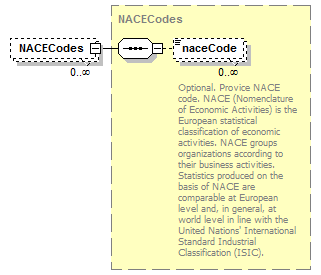

element EconomicActivity/NACECodes

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

NACECodes

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

naceCode

source

<xs:element name="NACECodes" type="NACECodes" minOccurs="0" maxOccurs="unbounded"/>

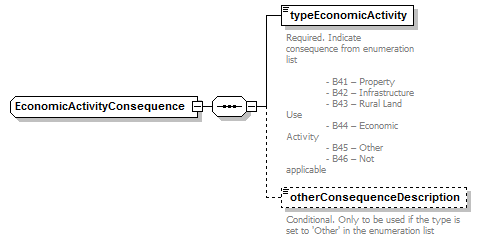

complexType EconomicActivityConsequence

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

typeEconomicActivity otherConsequenceDescription

used by

element

EconomicActivity/EconomicActivityConsequence

source

<xs:complexType name="EconomicActivityConsequence">
<xs:sequence>
    <xs:element name="typeEconomicActivity" type="fd:TypeEconomicActivity_Enum">
      <xs:annotation>
        <xs:documentation>Required. Indicate consequence from enumeration list

- B41 – Property
- B42 – Infrastructure
- B43 – Rural Land Use
- B44 – Economic Activity
- B45 – Other
- B46 – Not applicable</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherConsequenceDescription" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element EconomicActivityConsequence/typeEconomicActivity

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

TypeEconomicActivity_Enum

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	B40
enumeration	B41 - Property
enumeration	B42 - Infrastructure
enumeration	B43 - Rural Land Use
enumeration	B44 - Economic Activity
enumeration	B45 - Other
enumeration	B46 - Not applicable

annotation

documentation

Required. Indicate consequence from enumeration list

- B41 – Property
- B42 – Infrastructure
- B43 – Rural Land Use
- B44 – Economic Activity
- B45 – Other
- B46 – Not applicable

source

<xs:element name="typeEconomicActivity" type="fd:TypeEconomicActivity_Enum">
<xs:annotation>
<xs:documentation>Required. Indicate consequence from enumeration list

- B41 – Property
- B42 – Infrastructure
- B43 – Rural Land Use
- B44 – Economic Activity
- B45 – Other
- B46 – Not applicable</xs:documentation>
</xs:annotation>
</xs:element>

element EconomicActivityConsequence/otherConsequenceDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String250Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	250

annotation

documentation

Conditional. Only to be used if the type is set to 'Other' in the enumeration list

source

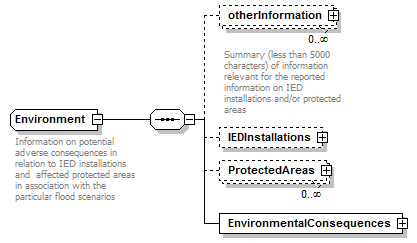

complexType Environment

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

otherInformation IEDInstallations ProtectedAreas EnvironmentalConsequences

used by

element

ExposedElement/Environment

annotation

documentation

Information on potential adverse consequences in relation to IED installations and affected protected areas in association with the particular flood scenarios

source

<xs:complexType name="Environment">
<xs:annotation>
    <xs:documentation>Information on potential adverse consequences in relation to IED installations and affected protected areas in association with the particular flood scenarios</xs:documentation>
</xs:annotation>
<xs:sequence>
    <xs:element name="otherInformation" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Summary (less than 5000 characters) of information relevant for the reported information on IED installations and/or protected areas</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="IEDInstallations" type="IEDInstallations" minOccurs="0"/>
    <xs:element name="ProtectedAreas" type="ProtectedAreas" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="EnvironmentalConsequences" type="EnvironmentalConsequences"/>
</xs:sequence>
</xs:complexType>

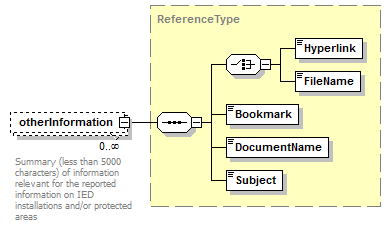

element Environment/otherInformation

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Summary (less than 5000 characters) of information relevant for the reported information on IED installations and/or protected areas

source

<xs:element name="otherInformation" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Summary (less than 5000 characters) of information relevant for the reported information on IED installations and/or protected areas</xs:documentation>
</xs:annotation>
</xs:element>

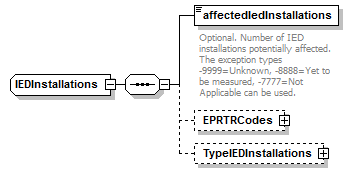

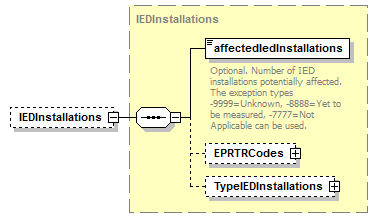

element Environment/IEDInstallations

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

IEDInstallations

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

affectedIedInstallations EPRTRCodes TypeIEDInstallations

source

<xs:element name="IEDInstallations" type="IEDInstallations" minOccurs="0"/>

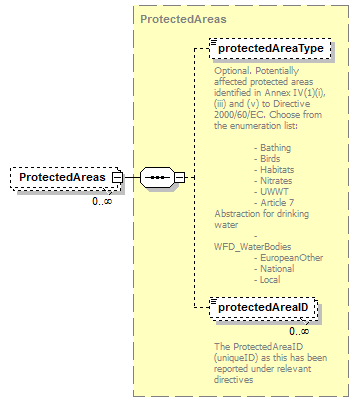

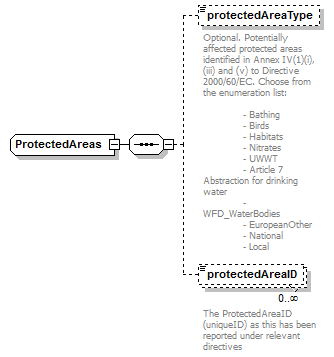

element Environment/ProtectedAreas

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ProtectedAreas

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

protectedAreaType protectedAreaID

source

<xs:element name="ProtectedAreas" type="ProtectedAreas" minOccurs="0" maxOccurs="unbounded"/>

element Environment/EnvironmentalConsequences

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

EnvironmentalConsequences

properties

isRef	0
content	complex

children

typeEnvironment otherConsequenceDescription

source

<xs:element name="EnvironmentalConsequences" type="EnvironmentalConsequences"/>

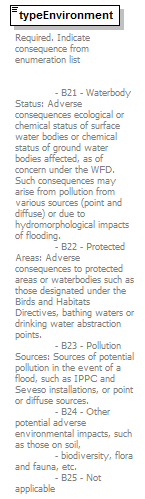

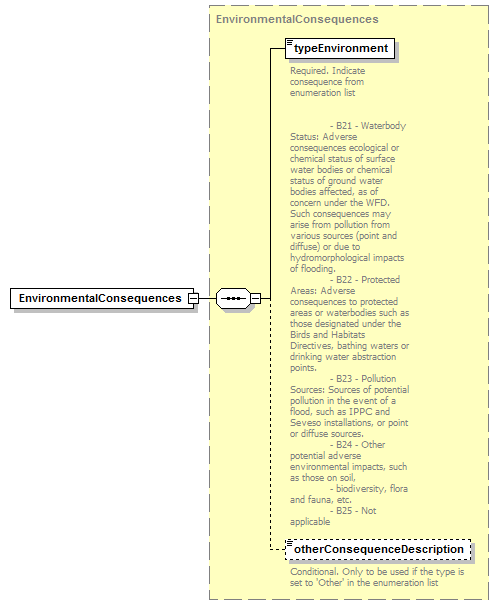

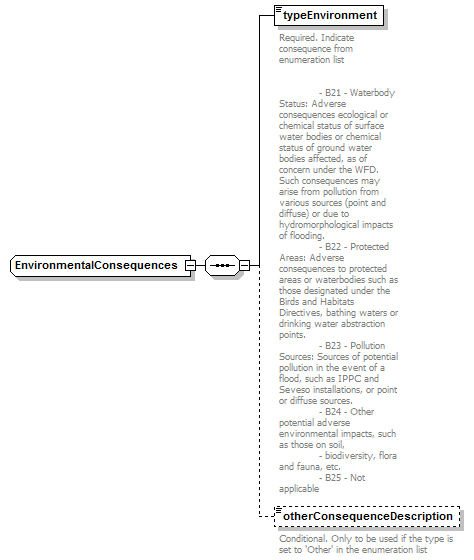

complexType EnvironmentalConsequences

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

typeEnvironment otherConsequenceDescription

used by

element

Environment/EnvironmentalConsequences

source

<xs:complexType name="EnvironmentalConsequences">
<xs:sequence>
    <xs:element name="typeEnvironment" type="fd:TypeEnvironment_Enum">
      <xs:annotation>
        <xs:documentation>Required. Indicate consequence from enumeration list

- B21 - Waterbody Status: Adverse consequences ecological or chemical status of surface water bodies or chemical status of ground water bodies affected, as of concern under the WFD. Such consequences may arise from pollution from various sources (point and diffuse) or due to hydromorphological impacts of flooding.
- B22 - Protected Areas: Adverse consequences to protected areas or waterbodies such as those designated under the Birds and Habitats Directives, bathing waters or drinking water abstraction points.
- B23 - Pollution Sources: Sources of potential pollution in the event of a flood, such as IPPC and Seveso installations, or point or diffuse sources.
- B24 - Other potential adverse environmental impacts, such as those on soil,
- biodiversity, flora and fauna, etc.
- B25 - Not applicable</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherConsequenceDescription" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element EnvironmentalConsequences/typeEnvironment

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

TypeEnvironment_Enum

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	B20
enumeration	B21 - Waterbody Status
enumeration	B22 - Protected Areas
enumeration	B23 - Pollution Sources
enumeration	B24 - Other potential adverse environmental impacts
enumeration	B25 - Not applicable

annotation

documentation

Required. Indicate consequence from enumeration list

- B21 - Waterbody Status: Adverse consequences ecological or chemical status of surface water bodies or chemical status of ground water bodies affected, as of concern under the WFD. Such consequences may arise from pollution from various sources (point and diffuse) or due to hydromorphological impacts of flooding.
- B22 - Protected Areas: Adverse consequences to protected areas or waterbodies such as those designated under the Birds and Habitats Directives, bathing waters or drinking water abstraction points.
- B23 - Pollution Sources: Sources of potential pollution in the event of a flood, such as IPPC and Seveso installations, or point or diffuse sources.
- B24 - Other potential adverse environmental impacts, such as those on soil,
- biodiversity, flora and fauna, etc.
- B25 - Not applicable

source

<xs:element name="typeEnvironment" type="fd:TypeEnvironment_Enum">
<xs:annotation>
<xs:documentation>Required. Indicate consequence from enumeration list

- B21 - Waterbody Status: Adverse consequences ecological or chemical status of surface water bodies or chemical status of ground water bodies affected, as of concern under the WFD. Such consequences may arise from pollution from various sources (point and diffuse) or due to hydromorphological impacts of flooding.
- B22 - Protected Areas: Adverse consequences to protected areas or waterbodies such as those designated under the Birds and Habitats Directives, bathing waters or drinking water abstraction points.
- B23 - Pollution Sources: Sources of potential pollution in the event of a flood, such as IPPC and Seveso installations, or point or diffuse sources.
- B24 - Other potential adverse environmental impacts, such as those on soil,
- biodiversity, flora and fauna, etc.
- B25 - Not applicable</xs:documentation>
</xs:annotation>
</xs:element>

element EnvironmentalConsequences/otherConsequenceDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String250Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	250

annotation

documentation

Conditional. Only to be used if the type is set to 'Other' in the enumeration list

source

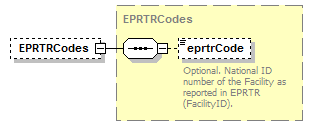

complexType EPRTRCodes

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

IEDInstallations/EPRTRCodes

source

<xs:complexType name="EPRTRCodes">
<xs:sequence>
    <xs:element name="eprtrCode" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. National ID number of the Facility as reported in EPRTR (FacilityID).</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element EPRTRCodes/eprtrCode

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String250Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	250

annotation

documentation

Optional. National ID number of the Facility as reported in EPRTR (FacilityID).

source

<xs:element name="eprtrCode" type="fd:String250Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. National ID number of the Facility as reported in EPRTR (FacilityID).</xs:documentation>
</xs:annotation>
</xs:element>

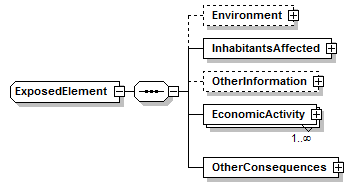

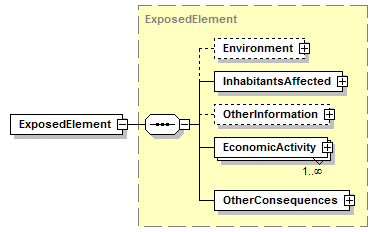

complexType ExposedElement

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

Environment InhabitantsAffected OtherInformation EconomicActivity OtherConsequences

used by

element

FloodRiskMap/ExposedElement

source

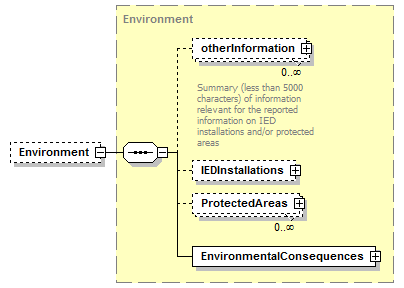

element ExposedElement/Environment

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Environment

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

otherInformation IEDInstallations ProtectedAreas EnvironmentalConsequences

source

<xs:element name="Environment" type="Environment" minOccurs="0"/>

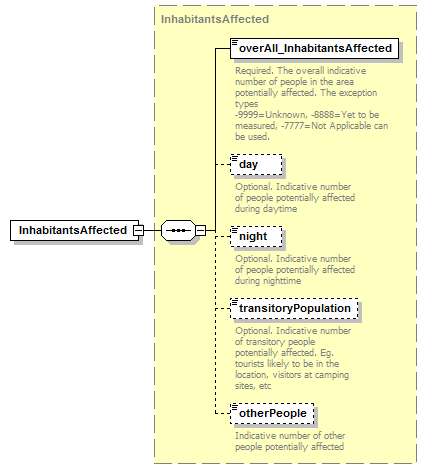

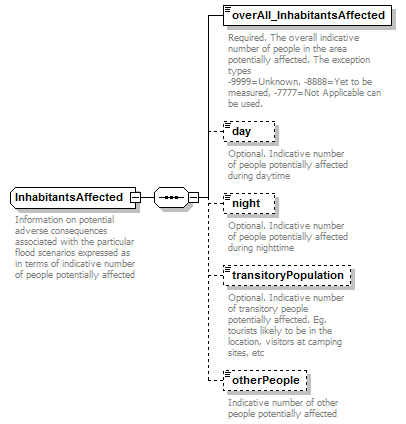

element ExposedElement/InhabitantsAffected

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

InhabitantsAffected

properties

isRef	0
content	complex

children

overAll_InhabitantsAffected day night transitoryPopulation otherPeople

source

<xs:element name="InhabitantsAffected" type="InhabitantsAffected"/>

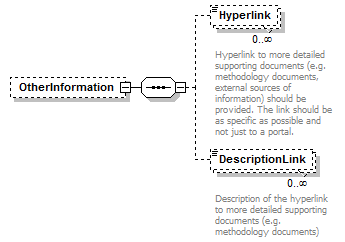

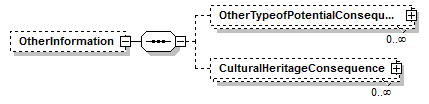

element ExposedElement/OtherInformation

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

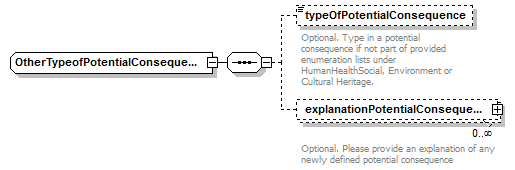

OtherTypeofPotentialConsequences CulturalHeritageConsequence

source

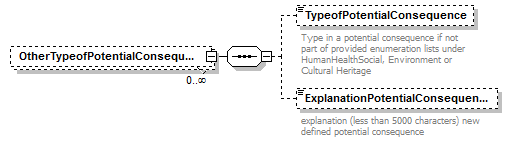

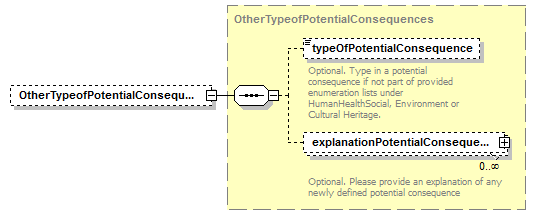

element ExposedElement/OtherInformation/OtherTypeofPotentialConsequences

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

TypeofPotentialConsequence ExplanationPotentialConsequence

source

<xs:element name="OtherTypeofPotentialConsequences" minOccurs="0" maxOccurs="unbounded">
<xs:complexType>
    <xs:sequence>
      <xs:element name="TypeofPotentialConsequence" type="xs:string" minOccurs="0">
        <xs:annotation>
          <xs:documentation>Type in a potential consequence if not part of provided enumeration lists under HumanHealthSocial, Environment or Cultural Heritage</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="ExplanationPotentialConsequence" type="xs:string" minOccurs="0">
        <xs:annotation>
          <xs:documentation>explanation (less than 5000 characters) new defined potential consequence</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
</xs:complexType>
</xs:element>

element ExposedElement/OtherInformation/OtherTypeofPotentialConsequences/TypeofPotentialConsequence

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

Type in a potential consequence if not part of provided enumeration lists under HumanHealthSocial, Environment or Cultural Heritage

source

<xs:element name="TypeofPotentialConsequence" type="xs:string" minOccurs="0">
<xs:annotation>
<xs:documentation>Type in a potential consequence if not part of provided enumeration lists under HumanHealthSocial, Environment or Cultural Heritage</xs:documentation>
</xs:annotation>
</xs:element>

element ExposedElement/OtherInformation/OtherTypeofPotentialConsequences/ExplanationPotentialConsequence

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

explanation (less than 5000 characters) new defined potential consequence

source

<xs:element name="ExplanationPotentialConsequence" type="xs:string" minOccurs="0">
<xs:annotation>
<xs:documentation>explanation (less than 5000 characters) new defined potential consequence</xs:documentation>
</xs:annotation>
</xs:element>

element ExposedElement/OtherInformation/CulturalHeritageConsequence

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

TypeCulturalHeritage OtherConsequenceDescription

source

<xs:element name="CulturalHeritageConsequence" minOccurs="0" maxOccurs="unbounded">
<xs:complexType>
    <xs:sequence>
      <xs:element name="TypeCulturalHeritage" type="xs:string" minOccurs="0">
        <xs:annotation>
          <xs:documentation>Indicate consequence from enumeration list</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="OtherConsequenceDescription" type="xs:string" minOccurs="0">
        <xs:annotation>
          <xs:documentation>CONDITIONAL. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
</xs:complexType>
</xs:element>

element ExposedElement/OtherInformation/CulturalHeritageConsequence/TypeCulturalHeritage

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

Indicate consequence from enumeration list

source

<xs:element name="TypeCulturalHeritage" type="xs:string" minOccurs="0">
<xs:annotation>
<xs:documentation>Indicate consequence from enumeration list</xs:documentation>
</xs:annotation>
</xs:element>

element ExposedElement/OtherInformation/CulturalHeritageConsequence/OtherConsequenceDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

CONDITIONAL. Only to be used if the type is set to 'Other' in the enumeration list

source

<xs:element name="OtherConsequenceDescription" type="xs:string" minOccurs="0">
<xs:annotation>
<xs:documentation>CONDITIONAL. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
</xs:annotation>
</xs:element>

element ExposedElement/EconomicActivity

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

EconomicActivity

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

EconomicActivityConsequence NACECodes

source

<xs:element name="EconomicActivity" type="EconomicActivity" maxOccurs="unbounded"/>

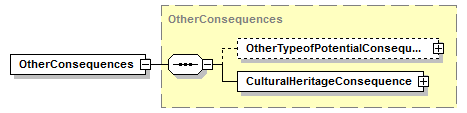

element ExposedElement/OtherConsequences

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

OtherConsequences

properties

isRef	0
content	complex

children

OtherTypeofPotentialConsequences CulturalHeritageConsequence

source

<xs:element name="OtherConsequences" type="OtherConsequences"/>

complexType FHRM

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

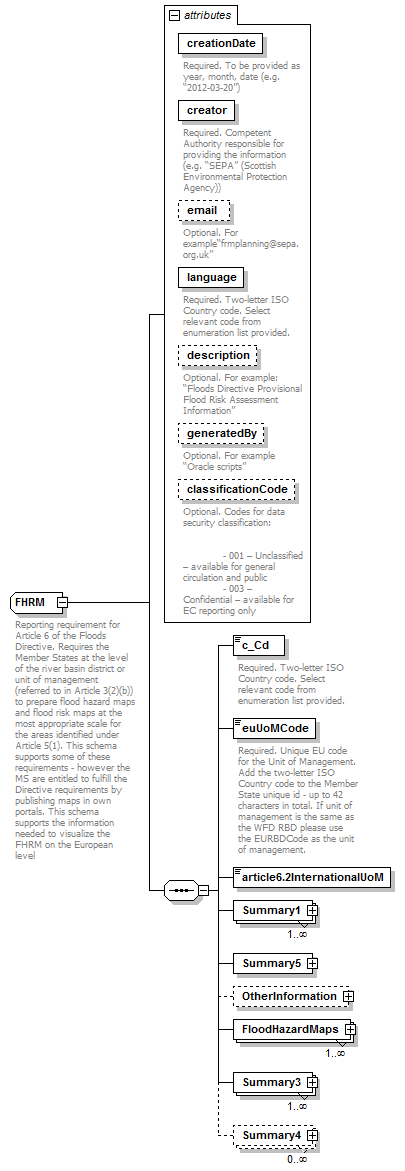

c_Cd euUoMCode article6.2InternationalUoM Summary1 Summary5 OtherInformation FloodHazardMaps Summary3 Summary4

Required. To be provided as year, month, date (e.g. “2012-03-20”)

Required. Competent Authority responsible for providing the information (e.g. “SEPA” (Scottish Environmental Protection Agency))

xs:string

optional

documentation

Optional. For example“frmplanning@sepa.org.uk”

Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.

Optional. For example: “Floods Directive Provisional Flood Risk Assessment Information”

Optional. For example “Oracle scripts”

classificationCode

DataConfidentialityClassificationCode_Enum

optional

documentation

Optional. Codes for data security classification:

- 001 – Unclassified – available for general circulation and public
- 003 – Confidential – available for EC reporting only

annotation

documentation

source

attribute FHRM/@creationDate

type

xs:string

properties

isRef	0
use	required

annotation

documentation

Required. To be provided as year, month, date (e.g. “2012-03-20”)

source

<xs:attribute name="creationDate" type="xs:string" use="required">
<xs:annotation>
<xs:documentation>Required. To be provided as year, month, date (e.g. “2012-03-20”)</xs:documentation>
</xs:annotation>
</xs:attribute>

attribute FHRM/@creator

type

xs:string

properties

isRef	0
use	required

annotation

documentation

Required. Competent Authority responsible for providing the information (e.g. “SEPA” (Scottish Environmental Protection Agency))

source

<xs:attribute name="creator" type="xs:string" use="required">
<xs:annotation>
<xs:documentation>Required. Competent Authority responsible for providing the information (e.g. “SEPA” (Scottish Environmental Protection Agency))</xs:documentation>
</xs:annotation>
</xs:attribute>

attribute FHRM/@email

type

xs:string

properties

isRef	0
use	optional

annotation

documentation

Optional. For example“frmplanning@sepa.org.uk”

source

<xs:attribute name="email" type="xs:string" use="optional">
<xs:annotation>
<xs:documentation>Optional. For example“frmplanning@sepa.org.uk”</xs:documentation>
</xs:annotation>
</xs:attribute>

attribute FHRM/@language

type

LanguageCode_Enum

properties

isRef	0
use	required

facets

Kind	Value	annotation
enumeration	bg
enumeration	es
enumeration	cs
enumeration	da
enumeration	de
enumeration	et
enumeration	el
enumeration	en
enumeration	fr
enumeration	ga
enumeration	hr
enumeration	ic
enumeration	it
enumeration	lv
enumeration	lt
enumeration	hu
enumeration	mt
enumeration	nl
enumeration	no
enumeration	pl
enumeration	pt
enumeration	ro
enumeration	sk
enumeration	sl
enumeration	sr
enumeration	tr
enumeration	fi
enumeration	sv

annotation

documentation

Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.

source

<xs:attribute name="language" type="fd:LanguageCode_Enum" use="required">
<xs:annotation>
<xs:documentation>Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.</xs:documentation>
</xs:annotation>
</xs:attribute>

attribute FHRM/@description

type

xs:string

properties

isRef	0
use	optional

annotation

documentation

Optional. For example: “Floods Directive Provisional Flood Risk Assessment Information”

source

<xs:attribute name="description" type="xs:string" use="optional">
<xs:annotation>
<xs:documentation>Optional. For example: “Floods Directive Provisional Flood Risk Assessment Information”</xs:documentation>
</xs:annotation>
</xs:attribute>

attribute FHRM/@generatedBy

type

xs:string

properties

isRef	0
use	optional

annotation

documentation

Optional. For example “Oracle scripts”

source

<xs:attribute name="generatedBy" type="xs:string" use="optional">
<xs:annotation>
<xs:documentation>Optional. For example “Oracle scripts”</xs:documentation>
</xs:annotation>
</xs:attribute>

attribute FHRM/@classificationCode

type

DataConfidentialityClassificationCode_Enum

properties

isRef	0
use	optional

facets

Kind	Value	annotation
enumeration	001 - Unclassified
enumeration	003 - Confidential

annotation

documentation

Optional. Codes for data security classification:

- 001 – Unclassified – available for general circulation and public
- 003 – Confidential – available for EC reporting only

source

<xs:attribute name="classificationCode" type="fd:DataConfidentialityClassificationCode_Enum" use="optional">
<xs:annotation>
<xs:documentation>Optional. Codes for data security classification:

- 001 – Unclassified – available for general circulation and public
- 003 – Confidential – available for EC reporting only</xs:documentation>
</xs:annotation>
</xs:attribute>

element FHRM/c_Cd

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

CountryCode_enum

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	AT
enumeration	BE
enumeration	BG
enumeration	CH
enumeration	CZ
enumeration	CY
enumeration	DE
enumeration	DK
enumeration	EE
enumeration	EL
enumeration	ES
enumeration	FI
enumeration	FR
enumeration	HR
enumeration	HU
enumeration	IE
enumeration	IS
enumeration	IT
enumeration	LT
enumeration	LU
enumeration	LV
enumeration	MT
enumeration	NO
enumeration	NL
enumeration	PL
enumeration	PT
enumeration	RO
enumeration	SE
enumeration	SI
enumeration	SK
enumeration	TR
enumeration	UK

annotation

documentation

Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.

source

<xs:element name="c_Cd" type="fd:CountryCode_enum">
<xs:annotation>
<xs:documentation>Required. Two-letter ISO Country code. Select relevant code from enumeration list provided. </xs:documentation>
</xs:annotation>
</xs:element>

element FHRM/euUoMCode

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FeatureUniqueEUCodeType

properties

isRef	0
content	simple

facets

Kind	Value	annotation
minLength	3
maxLength	42

annotation

documentation

Required. Unique EU code for the Unit of Management. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total. If unit of management is the same as the WFD RBD please use the EURBDCode as the unit of management.

source

<xs:element name="euUoMCode" type="fd:FeatureUniqueEUCodeType">
<xs:annotation>
<xs:documentation>Required. Unique EU code for the Unit of Management. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total. If unit of management is the same as the WFD RBD please use the EURBDCode as the unit of management.</xs:documentation>
</xs:annotation>
</xs:element>

element FHRM/article6.2InternationalUoM

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

YesNoCode

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	Y
enumeration	N
enumeration

source

<xs:element name="article6.2InternationalUoM" type="fd:YesNoCode"/>

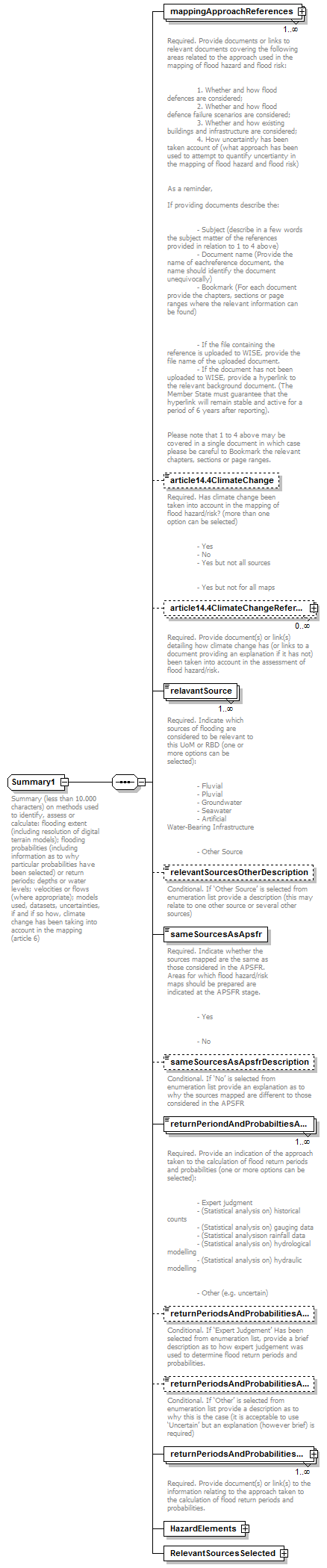

element FHRM/Summary1

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Summary1

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

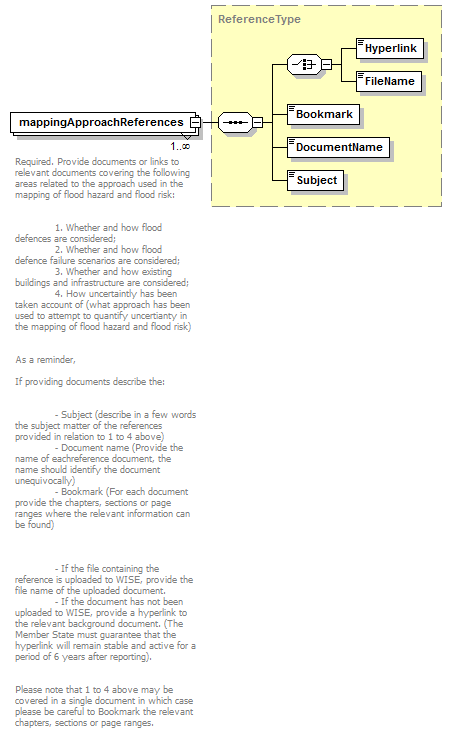

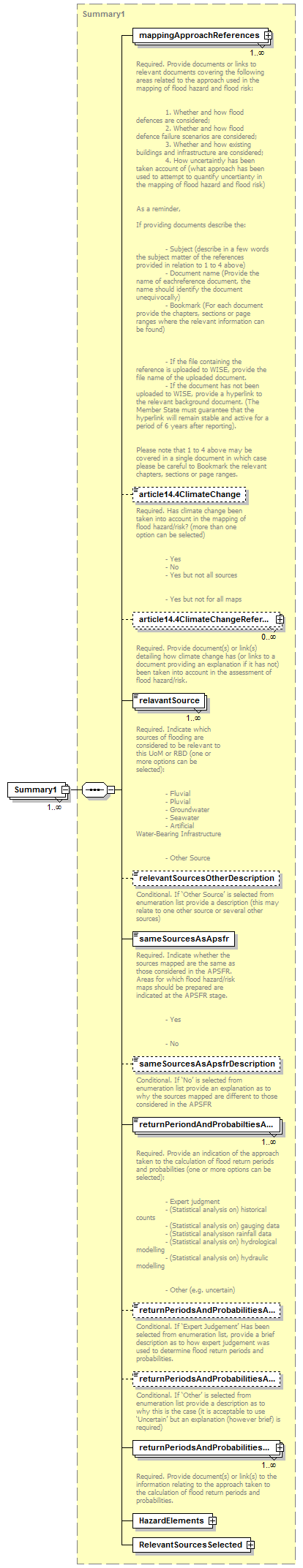

mappingApproachReferences article14.4ClimateChange article14.4ClimateChangeReference relavantSource relevantSourcesOtherDescription sameSourcesAsApsfr sameSourcesAsApsfrDescription returnPeriondAndProbabiltiesApproach returnPeriodsAndProbabilitiesApproachExpertJudgementDescription returnPeriodsAndProbabilitiesApproachOther returnPeriodsAndProbabilitiesApproachReference HazardElements RelevantSourcesSelected

source

<xs:element name="Summary1" type="Summary1" maxOccurs="unbounded"/>

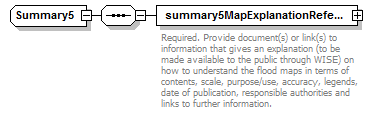

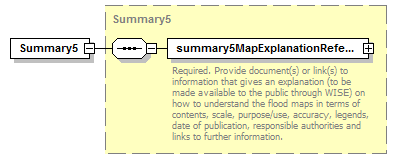

element FHRM/Summary5

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Summary5

properties

isRef	0
content	complex

children

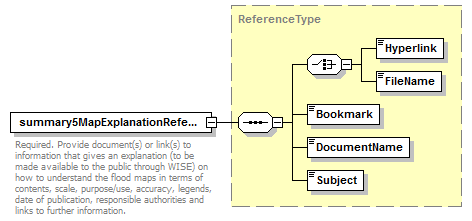

summary5MapExplanationReference

source

<xs:element name="Summary5" type="Summary5"/>

element FHRM/OtherInformation

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Hyperlink DescriptionLink

source

<xs:element name="OtherInformation" minOccurs="0">
<xs:complexType>
    <xs:sequence>
      <xs:element name="Hyperlink" type="xs:string" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Hyperlink to more detailed supporting documents (e.g. methodology documents, external sources of information) should be provided. The link should be as specific as possible and not just to a portal.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="DescriptionLink" type="xs:string" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Description of the hyperlink to more detailed supporting documents (e.g. methodology documents)</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
</xs:complexType>
</xs:element>

element FHRM/OtherInformation/Hyperlink

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

annotation

documentation

Hyperlink to more detailed supporting documents (e.g. methodology documents, external sources of information) should be provided. The link should be as specific as possible and not just to a portal.

source

<xs:element name="Hyperlink" type="xs:string" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Hyperlink to more detailed supporting documents (e.g. methodology documents, external sources of information) should be provided. The link should be as specific as possible and not just to a portal.</xs:documentation>
</xs:annotation>
</xs:element>

element FHRM/OtherInformation/DescriptionLink

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

annotation

documentation

Description of the hyperlink to more detailed supporting documents (e.g. methodology documents)

source

<xs:element name="DescriptionLink" type="xs:string" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Description of the hyperlink to more detailed supporting documents (e.g. methodology documents)</xs:documentation>
</xs:annotation>
</xs:element>

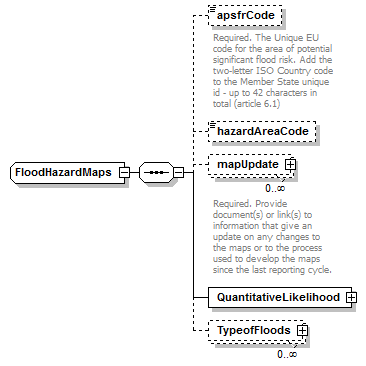

element FHRM/FloodHazardMaps

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FloodHazardMaps

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

apsfrCode hazardAreaCode mapUpdate QuantitativeLikelihood TypeofFloods

source

<xs:element name="FloodHazardMaps" type="FloodHazardMaps" maxOccurs="unbounded"/>

element FHRM/Summary3

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Summary3

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

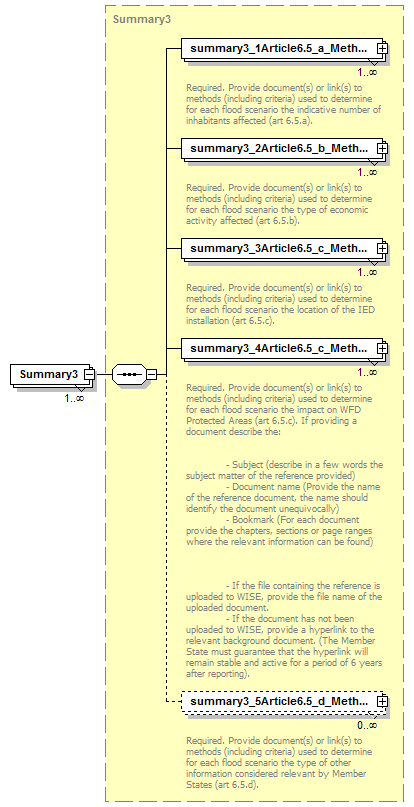

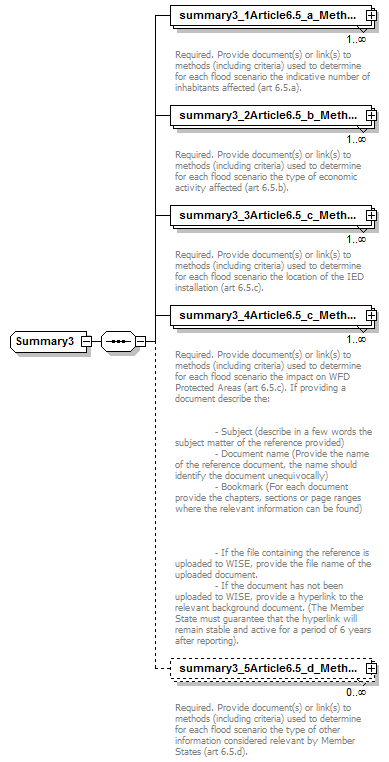

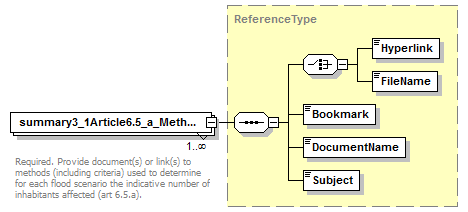

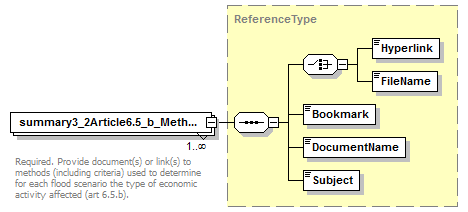

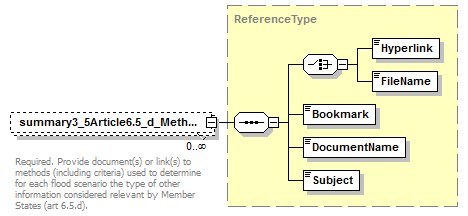

summary3_1Article6.5_a_MethodInhabitantsAffectedReference summary3_2Article6.5_b_MethodEconomicActivityAffectedReference summary3_3Article6.5_c_MethodLocationIedInstallationReference summary3_4Article6.5_c_MethodWfdProtectedAreasReference summary3_5Article6.5_d_MethodOtherInformationReference

source

<xs:element name="Summary3" type="Summary3" maxOccurs="unbounded"/>

element FHRM/Summary4

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Summary4

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

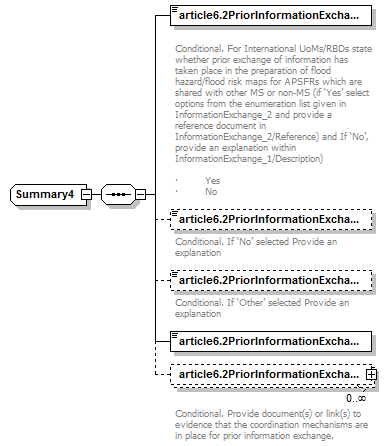

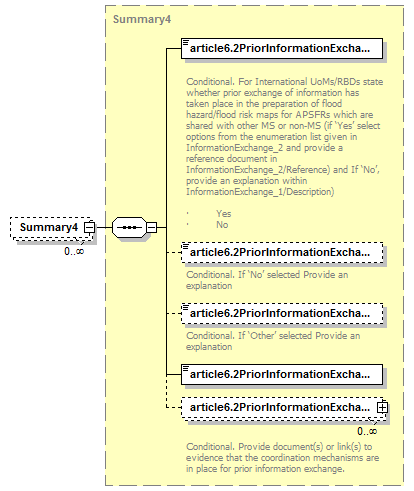

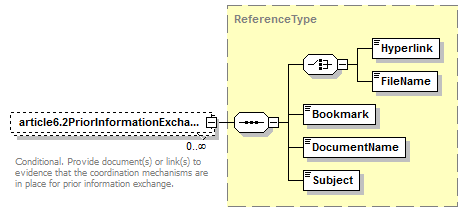

article6.2PriorInformationExchangeOccurred article6.2PriorInformationExchangeDescription article6.2PriorInformationExchange article6.2PriorInformationExchangeOtherDescription article6.2PriorInformationExchangeReference

source

<xs:element name="Summary4" type="Summary4" minOccurs="0" maxOccurs="unbounded"/>

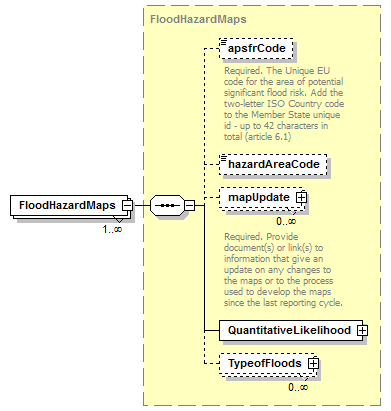

complexType FloodHazardMaps

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

apsfrCode hazardAreaCode mapUpdate QuantitativeLikelihood TypeofFloods

<xs:complexType name="FloodHazardMaps">
<xs:sequence>
    <xs:element name="apsfrCode" type="fd:FeatureUniqueCodeType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Required. The Unique EU code for the area of potential significant flood risk. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total (article 6.1)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="hazardAreaCode" type="fd:FeatureUniqueCodeType" minOccurs="0"/>
    <xs:element name="mapUpdate" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) to information that give an update on any changes to the maps or to the process used to develop the maps since the last reporting cycle. </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="QuantitativeLikelihood" type="QuantitativeLikelihood"/>
    <xs:element name="TypeofFloods" type="TypeofFloods" minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>

element FloodHazardMaps/apsfrCode

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FeatureUniqueCodeType

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	40
whiteSpace	collapse

annotation

documentation

Required. The Unique EU code for the area of potential significant flood risk. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total (article 6.1)

source

<xs:element name="apsfrCode" type="fd:FeatureUniqueCodeType" minOccurs="0">
<xs:annotation>
<xs:documentation>Required. The Unique EU code for the area of potential significant flood risk. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total (article 6.1)</xs:documentation>
</xs:annotation>
</xs:element>

element FloodHazardMaps/hazardAreaCode

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FeatureUniqueCodeType

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	40
whiteSpace	collapse

source

<xs:element name="hazardAreaCode" type="fd:FeatureUniqueCodeType" minOccurs="0"/>

element FloodHazardMaps/mapUpdate

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

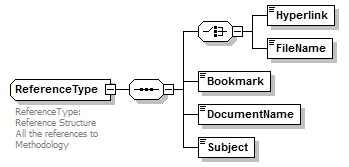

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

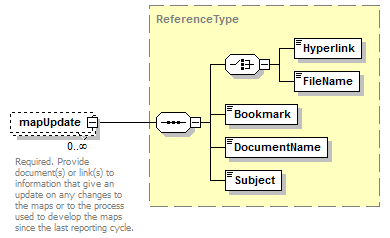

Required. Provide document(s) or link(s) to information that give an update on any changes to the maps or to the process used to develop the maps since the last reporting cycle.

source

<xs:element name="mapUpdate" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide document(s) or link(s) to information that give an update on any changes to the maps or to the process used to develop the maps since the last reporting cycle. </xs:documentation>
</xs:annotation>
</xs:element>

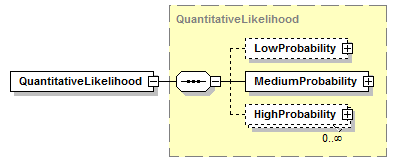

element FloodHazardMaps/QuantitativeLikelihood

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

QuantitativeLikelihood

properties

isRef	0
content	complex

children

LowProbability MediumProbability HighProbability

source

<xs:element name="QuantitativeLikelihood" type="QuantitativeLikelihood"/>

element FloodHazardMaps/TypeofFloods

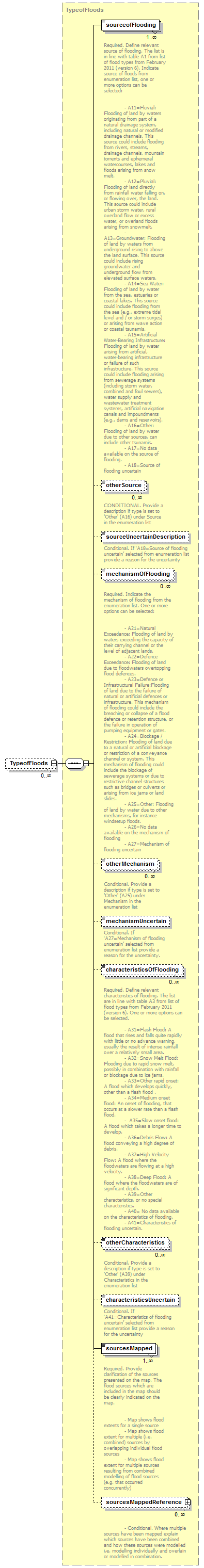

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

TypeofFloods

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

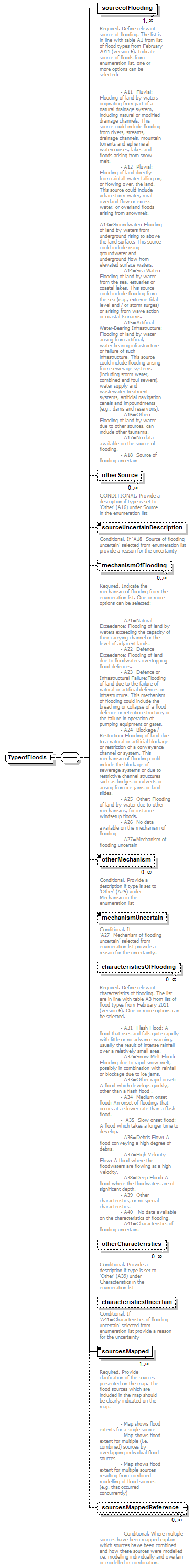

sourceofFlooding otherSource sourceUncertainDescription mechanismOfFlooding otherMechanism mechanismUncertain characteristicsOfFlooding otherCharacteristics characteristicsUncertain sourcesMapped sourcesMappedReference

source

<xs:element name="TypeofFloods" type="TypeofFloods" minOccurs="0" maxOccurs="unbounded"/>

complexType FloodRiskMap

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

LowProbability/FloodRiskMap HighProbability/HighProbability.FloodRiskMap MediumProbability/MediumProbability.FloodRiskMap

source

<xs:complexType name="FloodRiskMap">
<xs:sequence>
<xs:element name="ExposedElement" type="ExposedElement"/>
</xs:sequence>
</xs:complexType>

element FloodRiskMap/ExposedElement

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ExposedElement

properties

isRef	0
content	complex

children

Environment InhabitantsAffected OtherInformation EconomicActivity OtherConsequences

source

<xs:element name="ExposedElement" type="ExposedElement"/>

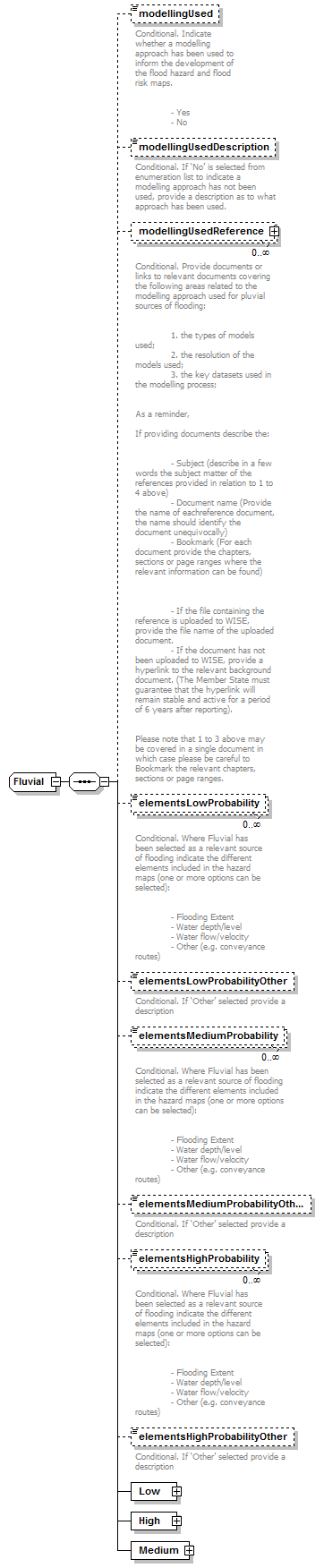

complexType Fluvial

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

used by

elements

RelevantSourcesSelected/Fluvial HazardElements/Fluvial

source

element Fluvial/modellingUsed

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

YesNoCode

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
enumeration	Y
enumeration	N
enumeration

annotation

documentation

Conditional. Indicate whether a modelling approach has been used to inform the development of the flood hazard and flood risk maps.

- Yes
- No

source

element Fluvial/modellingUsedDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘No’ is selected from enumeration list to indicate a modelling approach has not been used, provide a description as to what approach has been used.

source

element Fluvial/modellingUsedReference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Conditional. Provide documents or links to relevant documents covering the following areas related to the modelling approach used for pluvial sources of flooding:

1. the types of models used;
2. the resolution of the models used;
3. the key datasets used in the modelling process;

As a reminder,

If providing documents describe the:

- Subject (describe in a few words the subject matter of the references provided in relation to 1 to 4 above)
- Document name (Provide the name of eachreference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the chapters, sections or page ranges where the relevant information can be found)

- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).

Please note that 1 to 3 above may be covered in a single document in which case please be careful to Bookmark the relevant chapters, sections or page ranges.

source

<xs:element name="modellingUsedReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Provide documents or links to relevant documents covering the following areas related to the modelling approach used for pluvial sources of flooding:

1. the types of models used;
2. the resolution of the models used;
3. the key datasets used in the modelling process;

As a reminder,

If providing documents describe the:

- Subject (describe in a few words the subject matter of the references provided in relation to 1 to 4 above)
- Document name (Provide the name of eachreference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the chapters, sections or page ranges where the relevant information can be found)

- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).

Please note that 1 to 3 above may be covered in a single document in which case please be careful to Bookmark the relevant chapters, sections or page ranges. </xs:documentation>
</xs:annotation>
</xs:element>

element Fluvial/elementsLowProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ElementsProbability_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

Conditional. Where Fluvial has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)

source

<xs:element name="elementsLowProbability" type="fd:ElementsProbability_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Where Fluvial has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
</xs:element>

element Fluvial/elementsLowProbabilityOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected provide a description

source

<xs:element name="elementsLowProbabilityOther" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘Other’ selected provide a description</xs:documentation>
</xs:annotation>
</xs:element>

element Fluvial/elementsMediumProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ElementsProbability_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

source

<xs:element name="elementsMediumProbability" type="fd:ElementsProbability_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Where Fluvial has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
</xs:element>

element Fluvial/elementsMediumProbabilityOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected provide a description

source

<xs:element name="elementsMediumProbabilityOther" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘Other’ selected provide a description</xs:documentation>
</xs:annotation>
</xs:element>

element Fluvial/elementsHighProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ElementsProbability_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

source

<xs:element name="elementsHighProbability" type="fd:ElementsProbability_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Where Fluvial has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
</xs:element>

element Fluvial/elementsHighProbabilityOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected provide a description

source

<xs:element name="elementsHighProbabilityOther" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘Other’ selected provide a description</xs:documentation>
</xs:annotation>
</xs:element>

element Fluvial/Low

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Low

properties

isRef	0
content	complex

children

FloodingExtent DepthsOrWaterLevels VelocitiesOrFlows Other

source

<xs:element name="Low" type="Low"/>

element Fluvial/High

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

High

properties

isRef	0
content	complex

children

FloodingExtent DepthsOrWaterLevels VelocitiesOrFlows Other

source

<xs:element name="High" type="High"/>

element Fluvial/Medium

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Medium

properties

isRef	0
content	complex

children

FloodingExtent DepthsOrWaterLevels VelocitiesOrFlows Other

source

<xs:element name="Medium" type="Medium"/>

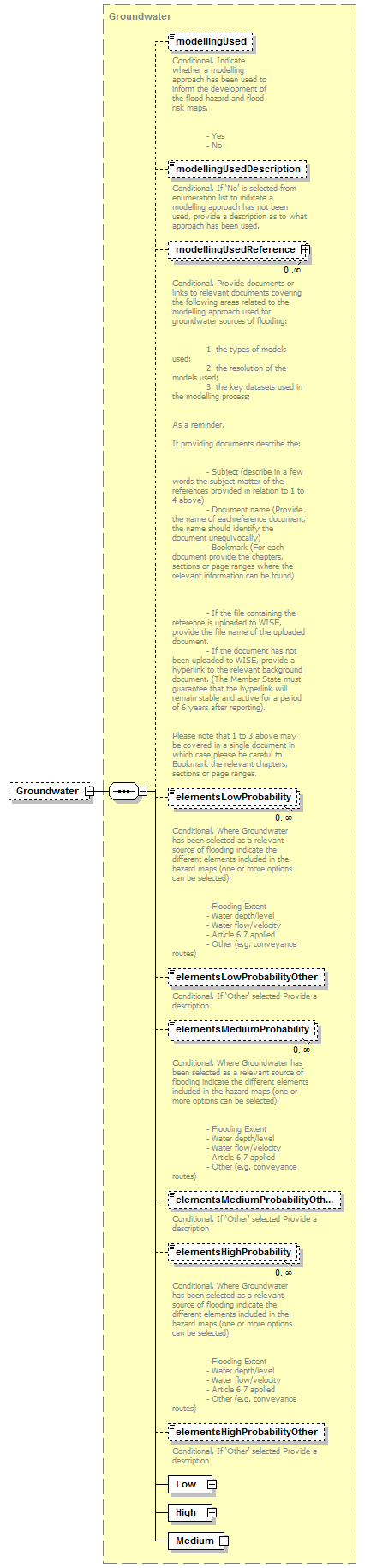

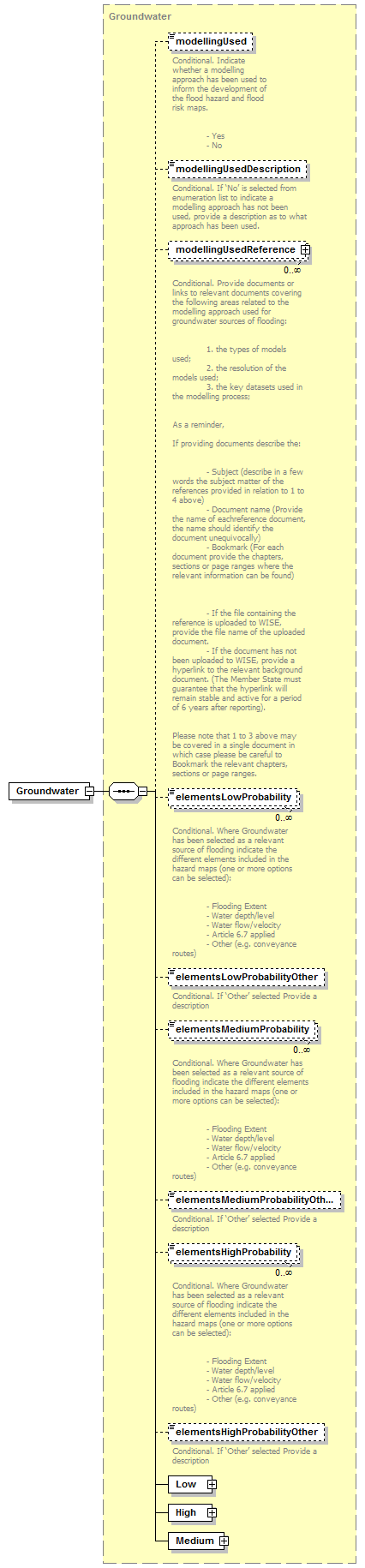

complexType Groundwater

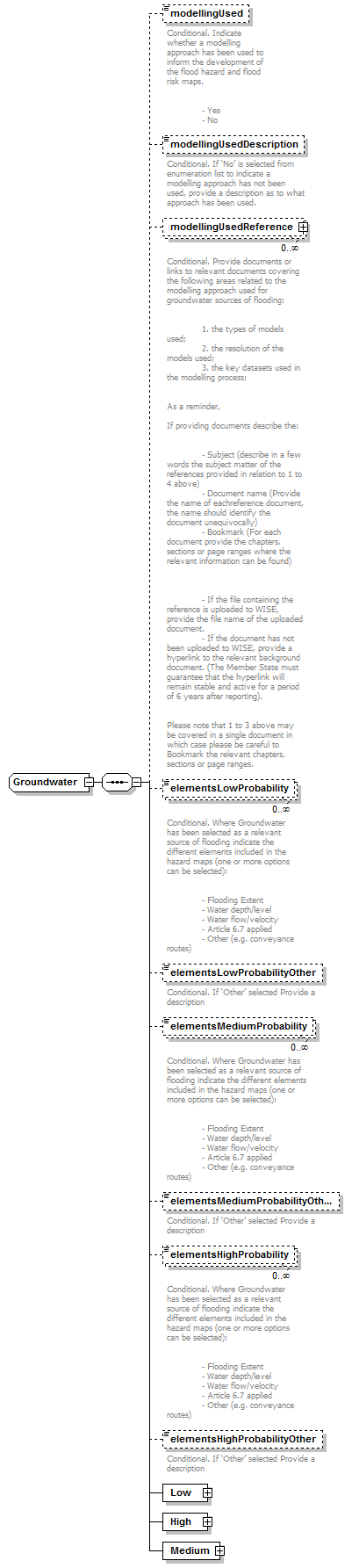

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

used by

elements

RelevantSourcesSelected/Groundwater HazardElements/Groundwater

source

element Groundwater/modellingUsed

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

YesNoCode

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
enumeration	Y
enumeration	N
enumeration

annotation

documentation

Conditional. Indicate whether a modelling approach has been used to inform the development of the flood hazard and flood risk maps.

- Yes
- No

source

element Groundwater/modellingUsedDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘No’ is selected from enumeration list to indicate a modelling approach has not been used, provide a description as to what approach has been used.

source

element Groundwater/modellingUsedReference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Conditional. Provide documents or links to relevant documents covering the following areas related to the modelling approach used for groundwater sources of flooding:

1. the types of models used;
2. the resolution of the models used;
3. the key datasets used in the modelling process;

As a reminder,

If providing documents describe the:

- Subject (describe in a few words the subject matter of the references provided in relation to 1 to 4 above)
- Document name (Provide the name of eachreference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the chapters, sections or page ranges where the relevant information can be found)

- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).

Please note that 1 to 3 above may be covered in a single document in which case please be careful to Bookmark the relevant chapters, sections or page ranges.

source

<xs:element name="modellingUsedReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Provide documents or links to relevant documents covering the following areas related to the modelling approach used for groundwater sources of flooding:

1. the types of models used;
2. the resolution of the models used;
3. the key datasets used in the modelling process;

As a reminder,

If providing documents describe the:

- Subject (describe in a few words the subject matter of the references provided in relation to 1 to 4 above)
- Document name (Provide the name of eachreference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the chapters, sections or page ranges where the relevant information can be found)

- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).

Please note that 1 to 3 above may be covered in a single document in which case please be careful to Bookmark the relevant chapters, sections or page ranges. </xs:documentation>
</xs:annotation>
</xs:element>

element Groundwater/elementsLowProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ElementsProbability_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

Conditional. Where Groundwater has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Article 6.7 applied
- Other (e.g. conveyance routes)

source

<xs:element name="elementsLowProbability" type="fd:ElementsProbability_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Where Groundwater has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Article 6.7 applied
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
</xs:element>

element Groundwater/elementsLowProbabilityOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected Provide a description

source

element Groundwater/elementsMediumProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ElementsProbability_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

source

<xs:element name="elementsMediumProbability" type="fd:ElementsProbability_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Where Groundwater has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Article 6.7 applied
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
</xs:element>

element Groundwater/elementsMediumProbabilityOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected Provide a description

source

element Groundwater/elementsHighProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ElementsProbability_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

source

<xs:element name="elementsHighProbability" type="fd:ElementsProbability_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Where Groundwater has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Article 6.7 applied
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
</xs:element>

element Groundwater/elementsHighProbabilityOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected Provide a description

source

element Groundwater/Low

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Low

properties

isRef	0
content	complex

children

FloodingExtent DepthsOrWaterLevels VelocitiesOrFlows Other

source

<xs:element name="Low" type="Low"/>

element Groundwater/High

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

High

properties

isRef	0
content	complex

children

FloodingExtent DepthsOrWaterLevels VelocitiesOrFlows Other

source

<xs:element name="High" type="High"/>

element Groundwater/Medium

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Medium

properties

isRef	0
content	complex

children

FloodingExtent DepthsOrWaterLevels VelocitiesOrFlows Other

source

<xs:element name="Medium" type="Medium"/>

complexType HazardElements

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

Fluvial Groundwater Pluvial SeaWater ArtificialWaterBearingInfrastructure

used by

element

Summary1/HazardElements

source

<xs:complexType name="HazardElements">
<xs:sequence>
    <xs:element name="Fluvial" type="Fluvial"/>
    <xs:element name="Groundwater" type="Groundwater"/>
    <xs:element name="Pluvial" type="Pluvial"/>
    <xs:element name="SeaWater" type="SeaWater"/>
    <xs:element name="ArtificialWaterBearingInfrastructure" type="ArtificialWaterBearingInfrastructure"/>
</xs:sequence>
</xs:complexType>

element HazardElements/Fluvial

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Fluvial

properties

isRef	0
content	complex

children

source

<xs:element name="Fluvial" type="Fluvial"/>

element HazardElements/Groundwater

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Groundwater

properties

isRef	0
content	complex

children

source

<xs:element name="Groundwater" type="Groundwater"/>

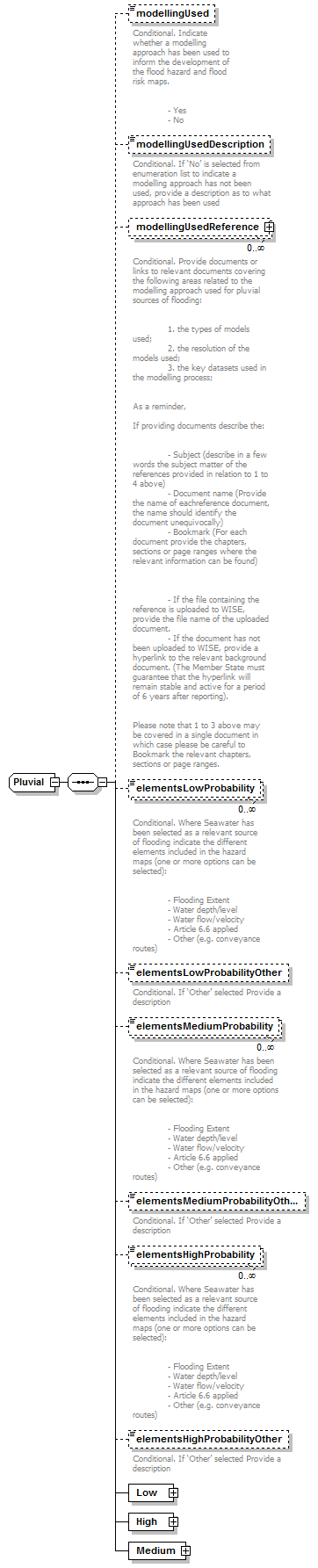

element HazardElements/Pluvial

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Pluvial

properties

isRef	0
content	complex

children

source

<xs:element name="Pluvial" type="Pluvial"/>

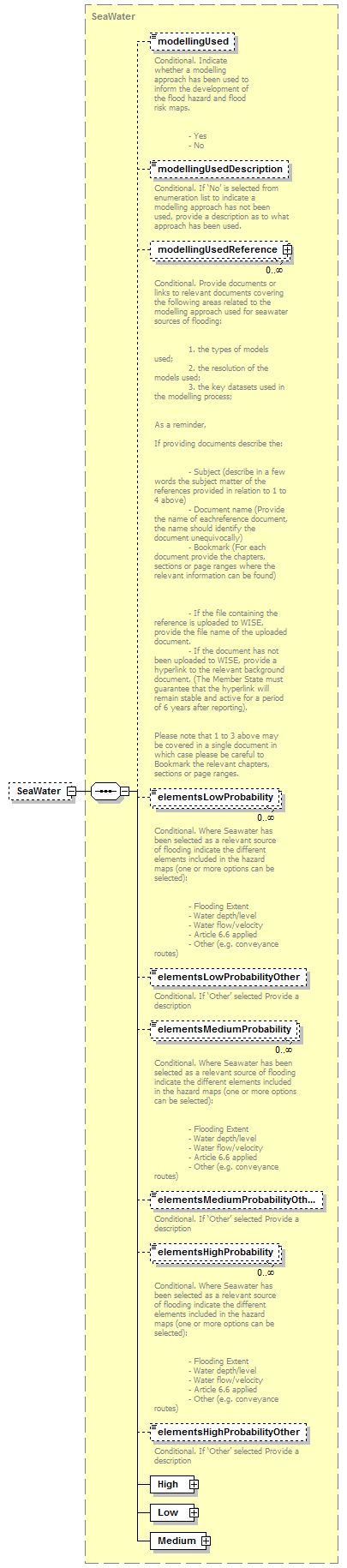

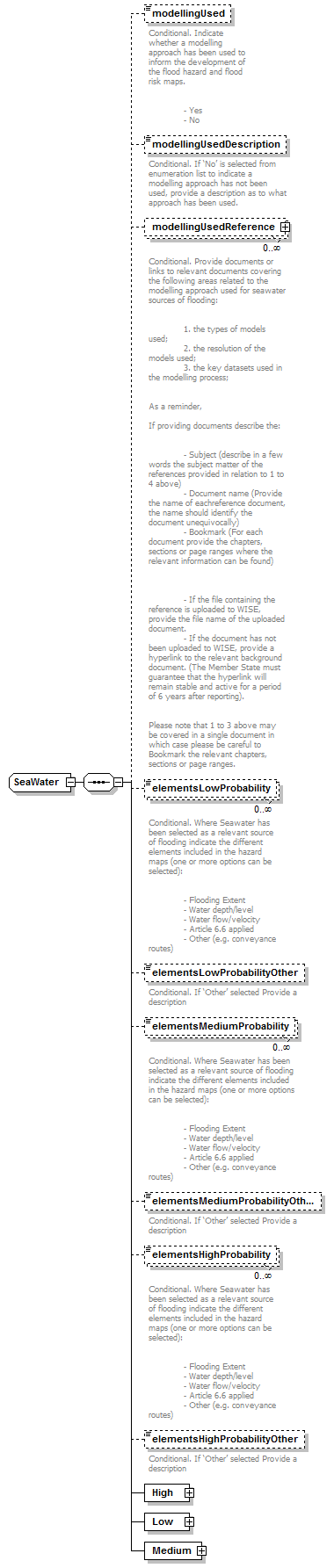

element HazardElements/SeaWater

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

SeaWater

properties

isRef	0
content	complex

children

source

<xs:element name="SeaWater" type="SeaWater"/>

element HazardElements/ArtificialWaterBearingInfrastructure

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ArtificialWaterBearingInfrastructure

properties

isRef	0
content	complex

children

source

<xs:element name="ArtificialWaterBearingInfrastructure" type="ArtificialWaterBearingInfrastructure"/>

complexType High

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

FloodingExtent DepthsOrWaterLevels VelocitiesOrFlows Other

used by

elements

Fluvial/High Pluvial/High SeaWater/High ArtificialWaterBearingInfrastructure/High Groundwater/High

source

<xs:complexType name="High">
<xs:sequence>
    <xs:element name="FloodingExtent" type="xs:string"/>
    <xs:element name="DepthsOrWaterLevels" type="xs:string"/>
    <xs:element name="VelocitiesOrFlows" type="xs:string"/>
    <xs:element name="Other" type="xs:string"/>
</xs:sequence>
</xs:complexType>

element High/FloodingExtent

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:string

properties

isRef	0
content	simple

source

<xs:element name="FloodingExtent" type="xs:string"/>

element High/DepthsOrWaterLevels

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:string

properties

isRef	0
content	simple

source

<xs:element name="DepthsOrWaterLevels" type="xs:string"/>

element High/VelocitiesOrFlows

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:string

properties

isRef	0
content	simple

source

<xs:element name="VelocitiesOrFlows" type="xs:string"/>

element High/Other

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:string

properties

isRef	0
content	simple

source

<xs:element name="Other" type="xs:string"/>

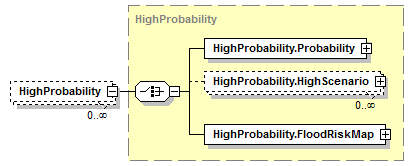

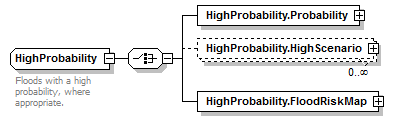

complexType HighProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

HighProbability.Probability HighProbability.HighScenario HighProbability.FloodRiskMap

used by

element

QuantitativeLikelihood/HighProbability

annotation

documentation

Floods with a high probability, where appropriate.

source

<xs:complexType name="HighProbability">
<xs:annotation>
    <xs:documentation>Floods with a high probability, where appropriate. </xs:documentation>
</xs:annotation>
<xs:choice>
    <xs:element name="HighProbability.Probability" type="Probability"/>
    <xs:element name="HighProbability.HighScenario" type="HighScenario" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="HighProbability.FloodRiskMap" type="FloodRiskMap"/>
</xs:choice>
</xs:complexType>

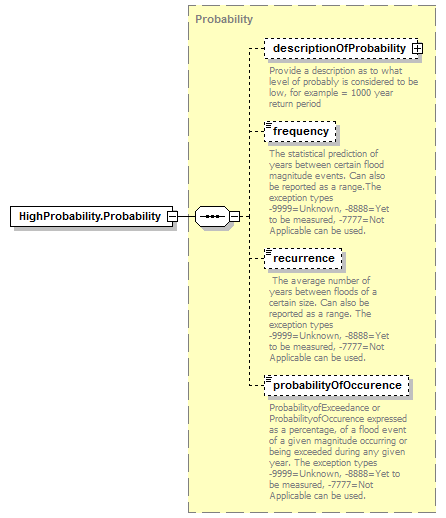

element HighProbability/HighProbability.Probability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Probability

properties

isRef	0
content	complex

children

descriptionOfProbability frequency recurrence probabilityOfOccurence

source

<xs:element name="HighProbability.Probability" type="Probability"/>

element HighProbability/HighProbability.HighScenario

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

HighScenario

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

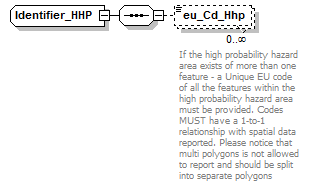

Identifier_HHP

source

<xs:element name="HighProbability.HighScenario" type="HighScenario" minOccurs="0" maxOccurs="unbounded"/>

element HighProbability/HighProbability.FloodRiskMap

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FloodRiskMap

properties

isRef	0
content	complex

children

ExposedElement

source

<xs:element name="HighProbability.FloodRiskMap" type="FloodRiskMap"/>

complexType HighScenario

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

HighProbability/HighProbability.HighScenario

source

<xs:complexType name="HighScenario">
<xs:sequence>
<xs:element name="Identifier_HHP" type="Identifier_HHP" minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>

element HighScenario/Identifier_HHP

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Identifier_HHP

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

eu_Cd_Hhp

source

<xs:element name="Identifier_HHP" type="Identifier_HHP" minOccurs="0" maxOccurs="unbounded"/>

complexType Identifier_HHP

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

HighScenario/Identifier_HHP

source

<xs:complexType name="Identifier_HHP">
<xs:sequence>
    <xs:element name="eu_Cd_Hhp" type="fd:FeatureUniqueCodeType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>If the high probability hazard area exists of more than one feature - a Unique EU code of all the features within the high probability hazard area must be provided. Codes MUST have a 1-to-1 relationship with spatial data reported. Please notice that multi polygons is not allowed to report and should be split into separate polygons</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element Identifier_HHP/eu_Cd_Hhp

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FeatureUniqueCodeType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	40
whiteSpace	collapse

annotation

documentation

If the high probability hazard area exists of more than one feature - a Unique EU code of all the features within the high probability hazard area must be provided. Codes MUST have a 1-to-1 relationship with spatial data reported. Please notice that multi polygons is not allowed to report and should be split into separate polygons

source

<xs:element name="eu_Cd_Hhp" type="fd:FeatureUniqueCodeType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>If the high probability hazard area exists of more than one feature - a Unique EU code of all the features within the high probability hazard area must be provided. Codes MUST have a 1-to-1 relationship with spatial data reported. Please notice that multi polygons is not allowed to report and should be split into separate polygons</xs:documentation>
</xs:annotation>
</xs:element>

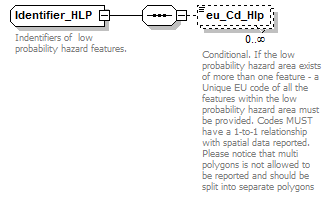

complexType Identifier_HLP

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

LowProbability/Identifier_HLP

annotation

documentation

Indentifiers of low probability hazard features.

source

<xs:complexType name="Identifier_HLP">
<xs:annotation>
    <xs:documentation>Indentifiers of low probability hazard features.</xs:documentation>
</xs:annotation>
<xs:sequence>
    <xs:element name="eu_Cd_Hlp" type="fd:FeatureUniqueCodeType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Conditional. If the low probability hazard area exists of more than one feature - a Unique EU code of all the features within the low probability hazard area must be provided. Codes MUST have a 1-to-1 relationship with spatial data reported. Please notice that multi polygons is not allowed to be reported and should be split into separate polygons </xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element Identifier_HLP/eu_Cd_Hlp

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FeatureUniqueCodeType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	40
whiteSpace	collapse

annotation

documentation

Conditional. If the low probability hazard area exists of more than one feature - a Unique EU code of all the features within the low probability hazard area must be provided. Codes MUST have a 1-to-1 relationship with spatial data reported. Please notice that multi polygons is not allowed to be reported and should be split into separate polygons

source

<xs:element name="eu_Cd_Hlp" type="fd:FeatureUniqueCodeType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. If the low probability hazard area exists of more than one feature - a Unique EU code of all the features within the low probability hazard area must be provided. Codes MUST have a 1-to-1 relationship with spatial data reported. Please notice that multi polygons is not allowed to be reported and should be split into separate polygons </xs:documentation>
</xs:annotation>
</xs:element>

complexType Identifier_HMP

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

MediumScenario/Identifier_HMP

annotation

documentation

Indentifiers of medium probability hazard features.

source

<xs:complexType name="Identifier_HMP">
<xs:annotation>
    <xs:documentation>Indentifiers of medium probability hazard features.</xs:documentation>
</xs:annotation>
<xs:sequence>
    <xs:element name="eu_Cd_Hmp" type="fd:FeatureUniqueCodeType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>If the medium probability hazard area exists of more than one feature (area) - a Unique EU code of all the features within the medium probability hazard area must be provided. Codes MUST have a 1- To -1 relationship with spatial data reported. Please notice that multi polygons is not allowed to report and should be split into separate polygons</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element Identifier_HMP/eu_Cd_Hmp

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FeatureUniqueCodeType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	40
whiteSpace	collapse

annotation

documentation

If the medium probability hazard area exists of more than one feature (area) - a Unique EU code of all the features within the medium probability hazard area must be provided. Codes MUST have a 1- To -1 relationship with spatial data reported. Please notice that multi polygons is not allowed to report and should be split into separate polygons

source

<xs:element name="eu_Cd_Hmp" type="fd:FeatureUniqueCodeType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>If the medium probability hazard area exists of more than one feature (area) - a Unique EU code of all the features within the medium probability hazard area must be provided. Codes MUST have a 1- To -1 relationship with spatial data reported. Please notice that multi polygons is not allowed to report and should be split into separate polygons</xs:documentation>
</xs:annotation>
</xs:element>

complexType IEDInstallations

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

affectedIedInstallations EPRTRCodes TypeIEDInstallations

used by

element

Environment/IEDInstallations

source

<xs:complexType name="IEDInstallations">
<xs:sequence>
    <xs:element name="affectedIedInstallations" type="fd:NumberNonNegativeIntegerType">
      <xs:annotation>
        <xs:documentation>Optional. Number of IED installations potentially affected. The exception types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="EPRTRCodes" type="EPRTRCodes" minOccurs="0"/>
    <xs:element name="TypeIEDInstallations" type="TypeIEDInstallations" minOccurs="0"/>
</xs:sequence>
</xs:complexType>

element IEDInstallations/affectedIedInstallations

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

NumberNonNegativeIntegerType

properties

isRef	0
content	simple

annotation

documentation

Optional. Number of IED installations potentially affected. The exception types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.

source

<xs:element name="affectedIedInstallations" type="fd:NumberNonNegativeIntegerType">
<xs:annotation>
<xs:documentation>Optional. Number of IED installations potentially affected. The exception types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
</xs:annotation>
</xs:element>

element IEDInstallations/EPRTRCodes

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

EPRTRCodes

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

eprtrCode

source

<xs:element name="EPRTRCodes" type="EPRTRCodes" minOccurs="0"/>

element IEDInstallations/TypeIEDInstallations

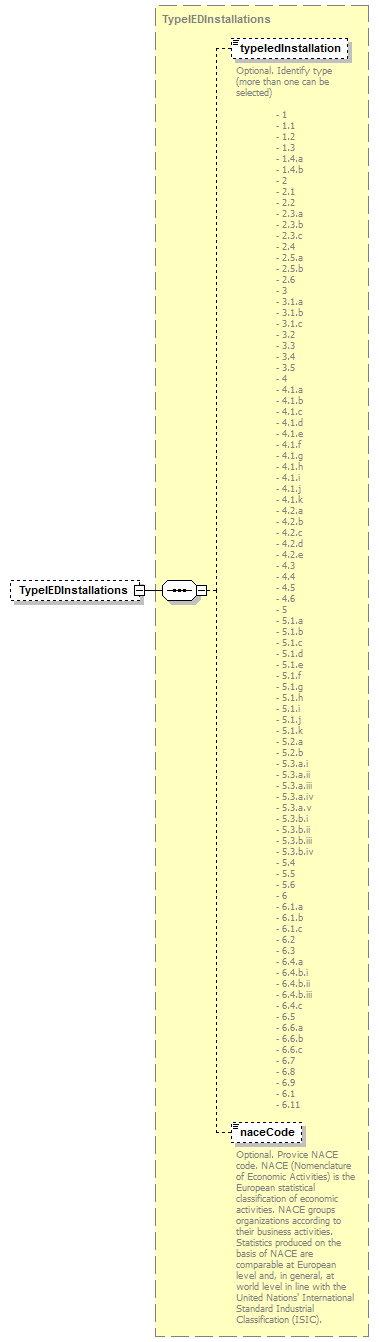

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

TypeIEDInstallations

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

typeIedInstallation naceCode

source

<xs:element name="TypeIEDInstallations" type="TypeIEDInstallations" minOccurs="0"/>

complexType InhabitantsAffected

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

overAll_InhabitantsAffected day night transitoryPopulation otherPeople

used by

element

ExposedElement/InhabitantsAffected

annotation

documentation

Information on potential adverse consequences associated with the particular flood scenarios expressed as in terms of indicative number of people potentially affected

source

<xs:complexType name="InhabitantsAffected">
<xs:annotation>
    <xs:documentation>Information on potential adverse consequences associated with the particular flood scenarios expressed as in terms of indicative number of people potentially affected</xs:documentation>
</xs:annotation>
<xs:sequence>
    <xs:element name="overAll_InhabitantsAffected" type="fd:NumberNonNegativeIntegerType">
      <xs:annotation>
        <xs:documentation>Required. The overall indicative number of people in the area potentially affected. The exception types
-9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="day" type="fd:NumberNonNegativeIntegerType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Indicative number of people potentially affected during daytime</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="night" type="fd:NumberNonNegativeIntegerType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Indicative number of people potentially affected during nighttime</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="transitoryPopulation" type="fd:NumberNonNegativeIntegerType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Indicative number of transitory people potentially affected. Eg. tourists likely to be in the location, visitors at camping sites, etc</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherPeople" type="fd:NumberNonNegativeIntegerType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Indicative number of other people potentially affected </xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element InhabitantsAffected/overAll_InhabitantsAffected

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

NumberNonNegativeIntegerType

properties

isRef	0
content	simple

annotation

documentation

Required. The overall indicative number of people in the area potentially affected. The exception types
-9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.

source

<xs:element name="overAll_InhabitantsAffected" type="fd:NumberNonNegativeIntegerType">
<xs:annotation>
<xs:documentation>Required. The overall indicative number of people in the area potentially affected. The exception types
-9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
</xs:annotation>
</xs:element>

element InhabitantsAffected/day

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

NumberNonNegativeIntegerType

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

Optional. Indicative number of people potentially affected during daytime

source

<xs:element name="day" type="fd:NumberNonNegativeIntegerType" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Indicative number of people potentially affected during daytime</xs:documentation>
</xs:annotation>
</xs:element>

element InhabitantsAffected/night

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

NumberNonNegativeIntegerType

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

Optional. Indicative number of people potentially affected during nighttime

source

<xs:element name="night" type="fd:NumberNonNegativeIntegerType" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Indicative number of people potentially affected during nighttime</xs:documentation>
</xs:annotation>
</xs:element>

element InhabitantsAffected/transitoryPopulation

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

NumberNonNegativeIntegerType

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

Optional. Indicative number of transitory people potentially affected. Eg. tourists likely to be in the location, visitors at camping sites, etc

source

<xs:element name="transitoryPopulation" type="fd:NumberNonNegativeIntegerType" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Indicative number of transitory people potentially affected. Eg. tourists likely to be in the location, visitors at camping sites, etc</xs:documentation>
</xs:annotation>
</xs:element>

element InhabitantsAffected/otherPeople

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

NumberNonNegativeIntegerType

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

Indicative number of other people potentially affected

source

<xs:element name="otherPeople" type="fd:NumberNonNegativeIntegerType" minOccurs="0">
<xs:annotation>
<xs:documentation>Indicative number of other people potentially affected </xs:documentation>
</xs:annotation>
</xs:element>

complexType Low

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

FloodingExtent DepthsOrWaterLevels VelocitiesOrFlows Other

used by

elements

Fluvial/Low Pluvial/Low SeaWater/Low ArtificialWaterBearingInfrastructure/Low Groundwater/Low

source

<xs:complexType name="Low">
<xs:sequence>
    <xs:element name="FloodingExtent" type="xs:string"/>
    <xs:element name="DepthsOrWaterLevels" type="xs:string"/>
    <xs:element name="VelocitiesOrFlows" type="xs:string"/>
    <xs:element name="Other" type="xs:string"/>
</xs:sequence>
</xs:complexType>

element Low/FloodingExtent

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:string

properties

isRef	0
content	simple

source

<xs:element name="FloodingExtent" type="xs:string"/>

element Low/DepthsOrWaterLevels

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:string

properties

isRef	0
content	simple

source

<xs:element name="DepthsOrWaterLevels" type="xs:string"/>

element Low/VelocitiesOrFlows

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:string

properties

isRef	0
content	simple

source

<xs:element name="VelocitiesOrFlows" type="xs:string"/>

element Low/Other

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:string

properties

isRef	0
content	simple

source

<xs:element name="Other" type="xs:string"/>

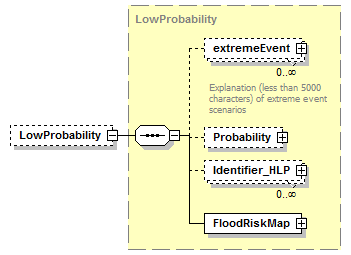

complexType LowProbability

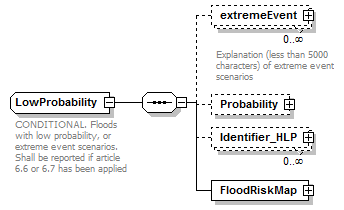

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

extremeEvent Probability Identifier_HLP FloodRiskMap

used by

element

QuantitativeLikelihood/LowProbability

annotation

documentation

CONDITIONAL. Floods with low probability, or extreme event scenarios. Shall be reported if article 6.6 or 6.7 has been applied

source

<xs:complexType name="LowProbability">
<xs:annotation>
    <xs:documentation>CONDITIONAL. Floods with low probability, or extreme event scenarios. Shall be reported if article 6.6 or 6.7 has been applied</xs:documentation>
</xs:annotation>
<xs:sequence>
    <xs:element name="extremeEvent" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Explanation (less than 5000 characters) of extreme event scenarios</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Probability" type="Probability" minOccurs="0"/>
    <xs:element name="Identifier_HLP" type="Identifier_HLP" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="FloodRiskMap" type="FloodRiskMap"/>
</xs:sequence>
</xs:complexType>

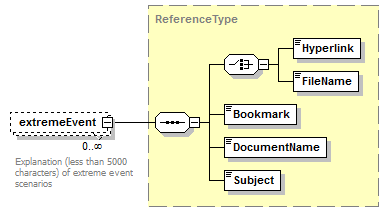

element LowProbability/extremeEvent

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Explanation (less than 5000 characters) of extreme event scenarios

source

<xs:element name="extremeEvent" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Explanation (less than 5000 characters) of extreme event scenarios</xs:documentation>
</xs:annotation>
</xs:element>

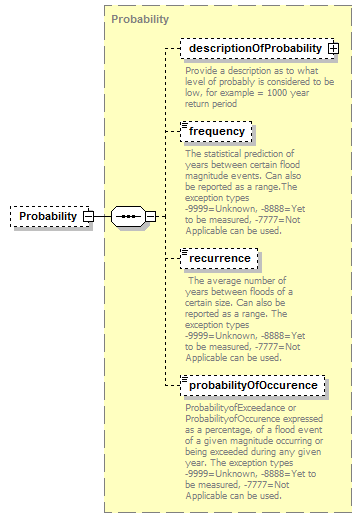

element LowProbability/Probability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Probability

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

descriptionOfProbability frequency recurrence probabilityOfOccurence

source

<xs:element name="Probability" type="Probability" minOccurs="0"/>

element LowProbability/Identifier_HLP

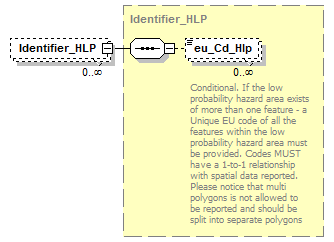

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Identifier_HLP

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

eu_Cd_Hlp

source

<xs:element name="Identifier_HLP" type="Identifier_HLP" minOccurs="0" maxOccurs="unbounded"/>

element LowProbability/FloodRiskMap

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FloodRiskMap

properties

isRef	0
content	complex

children

ExposedElement

source

<xs:element name="FloodRiskMap" type="FloodRiskMap"/>

complexType Medium

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

FloodingExtent DepthsOrWaterLevels VelocitiesOrFlows Other

used by

elements

Fluvial/Medium Pluvial/Medium SeaWater/Medium ArtificialWaterBearingInfrastructure/Medium Groundwater/Medium

source

<xs:complexType name="Medium">
<xs:sequence>
    <xs:element name="FloodingExtent" type="xs:string"/>
    <xs:element name="DepthsOrWaterLevels" type="xs:string"/>
    <xs:element name="VelocitiesOrFlows" type="xs:string"/>
    <xs:element name="Other" type="xs:string"/>
</xs:sequence>
</xs:complexType>

element Medium/FloodingExtent

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:string

properties

isRef	0
content	simple

source

<xs:element name="FloodingExtent" type="xs:string"/>

element Medium/DepthsOrWaterLevels

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:string

properties

isRef	0
content	simple

source

<xs:element name="DepthsOrWaterLevels" type="xs:string"/>

element Medium/VelocitiesOrFlows

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:string

properties

isRef	0
content	simple

source

<xs:element name="VelocitiesOrFlows" type="xs:string"/>

element Medium/Other

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:string

properties

isRef	0
content	simple

source

<xs:element name="Other" type="xs:string"/>

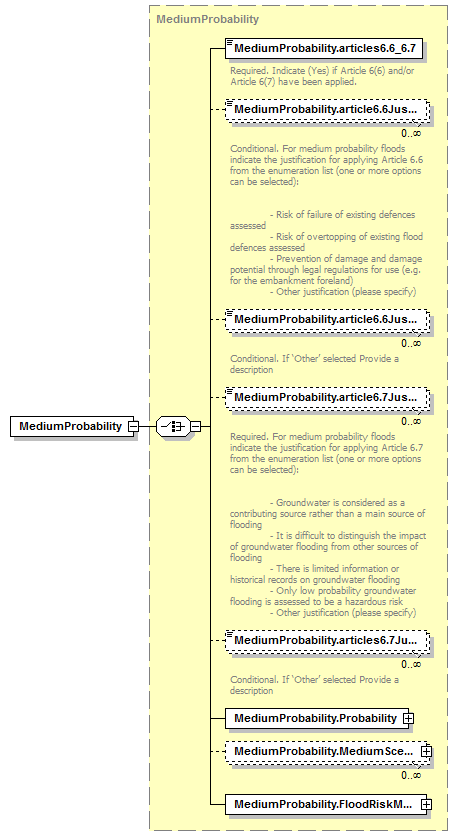

complexType MediumProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

MediumProbability.articles6.6_6.7 MediumProbability.article6.6Justification MediumProbability.article6.6JustificationOther MediumProbability.article6.7Justification MediumProbability.articles6.7JustificationOther MediumProbability.Probability MediumProbability.MediumScenario MediumProbability.FloodRiskMap

used by

element

QuantitativeLikelihood/MediumProbability

annotation

documentation

Flood with a medium probability (likely return period = 100 years). Indicate whether article 6(6) and or article 6(7) have been aplied

source

<xs:complexType name="MediumProbability">
<xs:annotation>
    <xs:documentation>Flood with a medium probability (likely return period = 100 years). Indicate whether article 6(6) and or article 6(7) have been aplied</xs:documentation>
</xs:annotation>
<xs:choice>
    <xs:element name="MediumProbability.articles6.6_6.7" type="fd:YesNoCode">
      <xs:annotation>
        <xs:documentation>Required. Indicate (Yes) if Article 6(6) and/or Article 6(7) have been applied.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MediumProbability.article6.6Justification" type="fd:Article_6.6_Justification_Enum" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Conditional. For medium probability floods indicate the justification for applying Article 6.6 from the enumeration list (one or more options can be selected):

- Risk of failure of existing defences assessed
- Risk of overtopping of existing flood defences assessed
- Prevention of damage and damage potential through legal regulations for use (e.g. for the embankment foreland)
- Other justification (please specify)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MediumProbability.article6.6JustificationOther" type="fd:String1000Type" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘Other’ selected Provide a description</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MediumProbability.article6.7Justification" type="fd:Article_6.7_Justification_Enum" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. For medium probability floods indicate the justification for applying Article 6.7 from the enumeration list (one or more options can be selected):

- Groundwater is considered as a contributing source rather than a main source of flooding
- It is difficult to distinguish the impact of groundwater flooding from other sources of flooding
- There is limited information or historical records on groundwater flooding
- Only low probability groundwater flooding is assessed to be a hazardous risk
- Other justification (please specify)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MediumProbability.articles6.7JustificationOther" type="fd:String1000Type" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘Other’ selected Provide a description</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MediumProbability.Probability" type="Probability"/>
    <xs:element name="MediumProbability.MediumScenario" type="MediumScenario" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="MediumProbability.FloodRiskMap" type="FloodRiskMap"/>
</xs:choice>
</xs:complexType>

element MediumProbability/MediumProbability.articles6.6_6.7

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

YesNoCode

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	Y
enumeration	N
enumeration

annotation

documentation

Required. Indicate (Yes) if Article 6(6) and/or Article 6(7) have been applied.

source

<xs:element name="MediumProbability.articles6.6_6.7" type="fd:YesNoCode">
<xs:annotation>
<xs:documentation>Required. Indicate (Yes) if Article 6(6) and/or Article 6(7) have been applied.</xs:documentation>
</xs:annotation>
</xs:element>

element MediumProbability/MediumProbability.article6.6Justification

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Article_6.6_Justification_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Other justification (please specify)
enumeration	Prevention of damage and damge potential through legal regulations for use (e.g. for the embankment foreland)
enumeration	Risk of failure of existing defences assessed
enumeration	Risk of overtopping of existing flood defences assessed

annotation

documentation

Conditional. For medium probability floods indicate the justification for applying Article 6.6 from the enumeration list (one or more options can be selected):

- Risk of failure of existing defences assessed
- Risk of overtopping of existing flood defences assessed
- Prevention of damage and damage potential through legal regulations for use (e.g. for the embankment foreland)
- Other justification (please specify)

source

<xs:element name="MediumProbability.article6.6Justification" type="fd:Article_6.6_Justification_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. For medium probability floods indicate the justification for applying Article 6.6 from the enumeration list (one or more options can be selected):

- Risk of failure of existing defences assessed
- Risk of overtopping of existing flood defences assessed
- Prevention of damage and damage potential through legal regulations for use (e.g. for the embankment foreland)
- Other justification (please specify)</xs:documentation>
</xs:annotation>
</xs:element>

element MediumProbability/MediumProbability.article6.6JustificationOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected Provide a description

source

<xs:element name="MediumProbability.article6.6JustificationOther" type="fd:String1000Type" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. If ‘Other’ selected Provide a description</xs:documentation>
</xs:annotation>
</xs:element>

element MediumProbability/MediumProbability.article6.7Justification

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Article_6.7_Justification_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Groundwater is considered as a contributing source rather than a main source of flooding
enumeration	It is difficult to distinguish the impact of groundwater flooding from other sources of flooding
enumeration	Only low probability groundwater flooding is assessed to be a hazardous risk
enumeration	Other justification
enumeration	There is limited information or historical records on groundwater flooding

annotation

documentation

Required. For medium probability floods indicate the justification for applying Article 6.7 from the enumeration list (one or more options can be selected):

- Groundwater is considered as a contributing source rather than a main source of flooding
- It is difficult to distinguish the impact of groundwater flooding from other sources of flooding
- There is limited information or historical records on groundwater flooding
- Only low probability groundwater flooding is assessed to be a hazardous risk
- Other justification (please specify)

source

<xs:element name="MediumProbability.article6.7Justification" type="fd:Article_6.7_Justification_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. For medium probability floods indicate the justification for applying Article 6.7 from the enumeration list (one or more options can be selected):

- Groundwater is considered as a contributing source rather than a main source of flooding
- It is difficult to distinguish the impact of groundwater flooding from other sources of flooding
- There is limited information or historical records on groundwater flooding
- Only low probability groundwater flooding is assessed to be a hazardous risk
- Other justification (please specify)</xs:documentation>
</xs:annotation>
</xs:element>

element MediumProbability/MediumProbability.articles6.7JustificationOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected Provide a description

source

<xs:element name="MediumProbability.articles6.7JustificationOther" type="fd:String1000Type" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. If ‘Other’ selected Provide a description</xs:documentation>
</xs:annotation>
</xs:element>

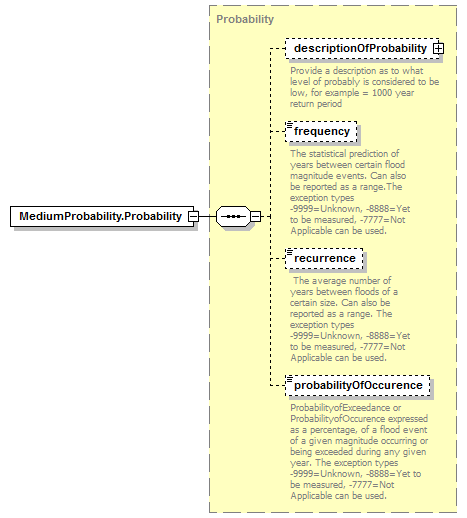

element MediumProbability/MediumProbability.Probability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Probability

properties

isRef	0
content	complex

children

descriptionOfProbability frequency recurrence probabilityOfOccurence

source

<xs:element name="MediumProbability.Probability" type="Probability"/>

element MediumProbability/MediumProbability.MediumScenario

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

MediumScenario

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Identifier_HMP

source

<xs:element name="MediumProbability.MediumScenario" type="MediumScenario" minOccurs="0" maxOccurs="unbounded"/>

element MediumProbability/MediumProbability.FloodRiskMap

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FloodRiskMap

properties

isRef	0
content	complex

children

ExposedElement

source

<xs:element name="MediumProbability.FloodRiskMap" type="FloodRiskMap"/>

complexType MediumScenario

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

MediumProbability/MediumProbability.MediumScenario

source

<xs:complexType name="MediumScenario">
<xs:sequence>
<xs:element name="Identifier_HMP" type="Identifier_HMP" minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>

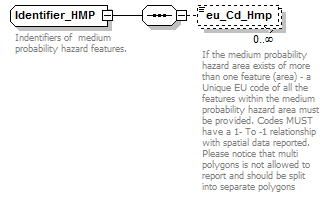

element MediumScenario/Identifier_HMP

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Identifier_HMP

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

eu_Cd_Hmp

source

<xs:element name="Identifier_HMP" type="Identifier_HMP" minOccurs="0" maxOccurs="unbounded"/>

complexType NACECodes

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

EconomicActivity/NACECodes

source

<xs:complexType name="NACECodes">
<xs:sequence>
    <xs:element name="naceCode" type="fd:String100Type" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Optional. Provice NACE code. NACE (Nomenclature of Economic Activities) is the European statistical classification of economic activities. NACE groups organizations according to their business activities. Statistics produced on the basis of NACE are comparable at European level and, in general, at world level in line with the United Nations' International Standard Industrial Classification (ISIC).</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element NACECodes/naceCode

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String100Type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	100

annotation

documentation

Optional. Provice NACE code. NACE (Nomenclature of Economic Activities) is the European statistical classification of economic activities. NACE groups organizations according to their business activities. Statistics produced on the basis of NACE are comparable at European level and, in general, at world level in line with the United Nations' International Standard Industrial Classification (ISIC).

source

<xs:element name="naceCode" type="fd:String100Type" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Optional. Provice NACE code. NACE (Nomenclature of Economic Activities) is the European statistical classification of economic activities. NACE groups organizations according to their business activities. Statistics produced on the basis of NACE are comparable at European level and, in general, at world level in line with the United Nations' International Standard Industrial Classification (ISIC).</xs:documentation>
</xs:annotation>
</xs:element>

complexType OtherConsequences

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

OtherTypeofPotentialConsequences CulturalHeritageConsequence

used by

element

ExposedElement/OtherConsequences

source

<xs:complexType name="OtherConsequences">
<xs:sequence>
<xs:element name="OtherTypeofPotentialConsequences" type="OtherTypeofPotentialConsequences" minOccurs="0"/>
<xs:element name="CulturalHeritageConsequence" type="CulturalHeritageConsequence"/>
</xs:sequence>
</xs:complexType>

element OtherConsequences/OtherTypeofPotentialConsequences

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

OtherTypeofPotentialConsequences

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

typeOfPotentialConsequence explanationPotentialConsequence

source

<xs:element name="OtherTypeofPotentialConsequences" type="OtherTypeofPotentialConsequences" minOccurs="0"/>

element OtherConsequences/CulturalHeritageConsequence

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

CulturalHeritageConsequence

properties

isRef	0
content	complex

children

typeCulturalHeritage otherConsequenceDescription

source

<xs:element name="CulturalHeritageConsequence" type="CulturalHeritageConsequence"/>

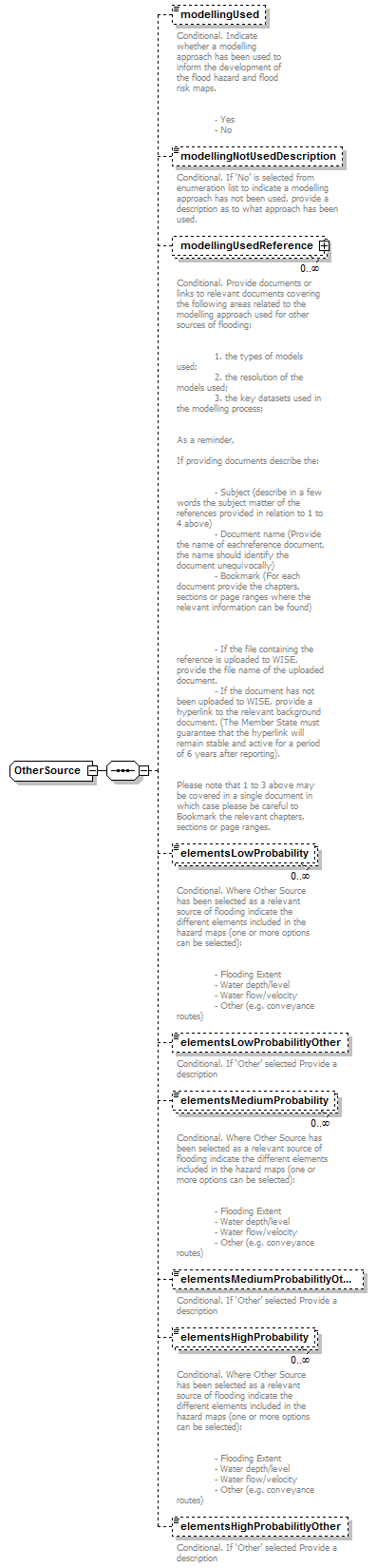

complexType OtherSource

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

modellingUsed modellingNotUsedDescription modellingUsedReference elementsLowProbability elementsLowProbabilitlyOther elementsMediumProbability elementsMediumProbabilitlyOther elementsHighProbability elementsHighProbabilitlyOther

used by

element

RelevantSourcesSelected/OtherSource

source

element OtherSource/modellingUsed

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

YesNoCode

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
enumeration	Y
enumeration	N
enumeration

annotation

documentation

Conditional. Indicate whether a modelling approach has been used to inform the development of the flood hazard and flood risk maps.

- Yes
- No

source

element OtherSource/modellingNotUsedDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘No’ is selected from enumeration list to indicate a modelling approach has not been used, provide a description as to what approach has been used.

source

<xs:element name="modellingNotUsedDescription" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘No’ is selected from enumeration list to indicate a modelling approach has not been used, provide a description as to what approach has been used.</xs:documentation>
</xs:annotation>
</xs:element>

element OtherSource/modellingUsedReference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Conditional. Provide documents or links to relevant documents covering the following areas related to the modelling approach used for other sources of flooding:

1. the types of models used;
2. the resolution of the models used;
3. the key datasets used in the modelling process;

As a reminder,

If providing documents describe the:

- Subject (describe in a few words the subject matter of the references provided in relation to 1 to 4 above)
- Document name (Provide the name of eachreference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the chapters, sections or page ranges where the relevant information can be found)

- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).

Please note that 1 to 3 above may be covered in a single document in which case please be careful to Bookmark the relevant chapters, sections or page ranges.

source

<xs:element name="modellingUsedReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Provide documents or links to relevant documents covering the following areas related to the modelling approach used for other sources of flooding:

1. the types of models used;
2. the resolution of the models used;
3. the key datasets used in the modelling process;

As a reminder,

If providing documents describe the:

- Subject (describe in a few words the subject matter of the references provided in relation to 1 to 4 above)
- Document name (Provide the name of eachreference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the chapters, sections or page ranges where the relevant information can be found)

- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).

Please note that 1 to 3 above may be covered in a single document in which case please be careful to Bookmark the relevant chapters, sections or page ranges. </xs:documentation>
</xs:annotation>
</xs:element>

element OtherSource/elementsLowProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ElementsProbability_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

Conditional. Where Other Source has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)

source

<xs:element name="elementsLowProbability" type="fd:ElementsProbability_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Where Other Source has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
</xs:element>

element OtherSource/elementsLowProbabilitlyOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected Provide a description

source

<xs:element name="elementsLowProbabilitlyOther" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘Other’ selected Provide a description</xs:documentation>
</xs:annotation>
</xs:element>

element OtherSource/elementsMediumProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ElementsProbability_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

source

<xs:element name="elementsMediumProbability" type="fd:ElementsProbability_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Where Other Source has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
</xs:element>

element OtherSource/elementsMediumProbabilitlyOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected Provide a description

source

<xs:element name="elementsMediumProbabilitlyOther" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘Other’ selected Provide a description</xs:documentation>
</xs:annotation>
</xs:element>

element OtherSource/elementsHighProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ElementsProbability_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

source

<xs:element name="elementsHighProbability" type="fd:ElementsProbability_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Where Other Source has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
</xs:element>

element OtherSource/elementsHighProbabilitlyOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected Provide a description

source

<xs:element name="elementsHighProbabilitlyOther" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘Other’ selected Provide a description</xs:documentation>
</xs:annotation>
</xs:element>

complexType OtherTypeofPotentialConsequences

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

typeOfPotentialConsequence explanationPotentialConsequence

used by

element

OtherConsequences/OtherTypeofPotentialConsequences

source

<xs:complexType name="OtherTypeofPotentialConsequences">
<xs:sequence>
    <xs:element name="typeOfPotentialConsequence" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Type in a potential consequence if not part of provided enumeration lists under HumanHealthSocial, Environment or Cultural Heritage.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="explanationPotentialConsequence" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Optional. Please provide an explanation of any newly defined potential consequence</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element OtherTypeofPotentialConsequences/typeOfPotentialConsequence

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String250Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	250

annotation

documentation

Optional. Type in a potential consequence if not part of provided enumeration lists under HumanHealthSocial, Environment or Cultural Heritage.

source

<xs:element name="typeOfPotentialConsequence" type="fd:String250Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Type in a potential consequence if not part of provided enumeration lists under HumanHealthSocial, Environment or Cultural Heritage.</xs:documentation>
</xs:annotation>
</xs:element>

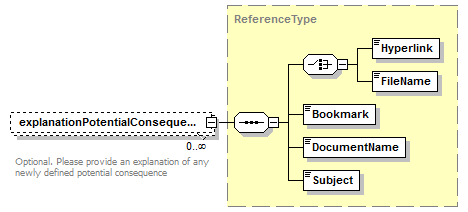

element OtherTypeofPotentialConsequences/explanationPotentialConsequence

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Optional. Please provide an explanation of any newly defined potential consequence

source

<xs:element name="explanationPotentialConsequence" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Optional. Please provide an explanation of any newly defined potential consequence</xs:documentation>
</xs:annotation>
</xs:element>

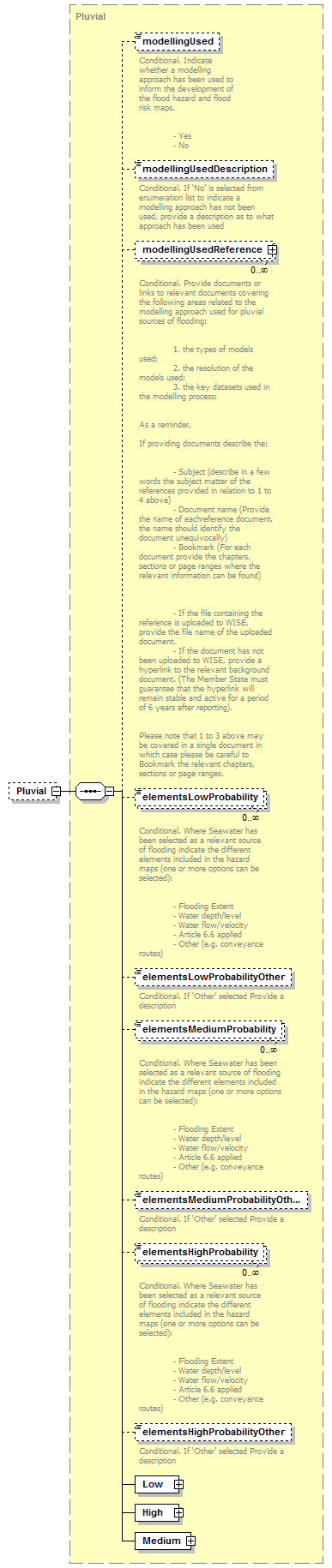

complexType Pluvial

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

used by

elements

RelevantSourcesSelected/Pluvial HazardElements/Pluvial

source

element Pluvial/modellingUsed

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

YesNoCode

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
enumeration	Y
enumeration	N
enumeration

annotation

documentation

Conditional. Indicate whether a modelling approach has been used to inform the development of the flood hazard and flood risk maps.

- Yes
- No

source

element Pluvial/modellingUsedDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘No’ is selected from enumeration list to indicate a modelling approach has not been used, provide a description as to what approach has been used

source

element Pluvial/modellingUsedReference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

source

<xs:element name="modellingUsedReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Provide documents or links to relevant documents covering the following areas related to the modelling approach used for pluvial sources of flooding:

1. the types of models used;
2. the resolution of the models used;
3. the key datasets used in the modelling process;

As a reminder,

If providing documents describe the:

- Subject (describe in a few words the subject matter of the references provided in relation to 1 to 4 above)
- Document name (Provide the name of eachreference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the chapters, sections or page ranges where the relevant information can be found)

- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).

Please note that 1 to 3 above may be covered in a single document in which case please be careful to Bookmark the relevant chapters, sections or page ranges. </xs:documentation>
</xs:annotation>
</xs:element>

element Pluvial/elementsLowProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ElementsProbability_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

source

<xs:element name="elementsLowProbability" type="fd:ElementsProbability_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Where Seawater has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Article 6.6 applied
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
</xs:element>

element Pluvial/elementsLowProbabilityOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected Provide a description

source

element Pluvial/elementsMediumProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ElementsProbability_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

source

<xs:element name="elementsMediumProbability" type="fd:ElementsProbability_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Where Seawater has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Article 6.6 applied
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
</xs:element>

element Pluvial/elementsMediumProbabilityOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected Provide a description

source

element Pluvial/elementsHighProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ElementsProbability_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

source

<xs:element name="elementsHighProbability" type="fd:ElementsProbability_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Where Seawater has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Article 6.6 applied
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
</xs:element>

element Pluvial/elementsHighProbabilityOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected Provide a description

http://water.eionet.europa.eu/schemas/dir200760ec

type

Low

properties

isRef	0
content	complex

children

FloodingExtent DepthsOrWaterLevels VelocitiesOrFlows Other

source

<xs:element name="Low" type="Low"/>

element Pluvial/High

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

High

properties

isRef	0
content	complex

children

FloodingExtent DepthsOrWaterLevels VelocitiesOrFlows Other

source

<xs:element name="High" type="High"/>

element Pluvial/Medium

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Medium

properties

isRef	0
content	complex

children

FloodingExtent DepthsOrWaterLevels VelocitiesOrFlows Other

source

<xs:element name="Medium" type="Medium"/>

complexType Probability

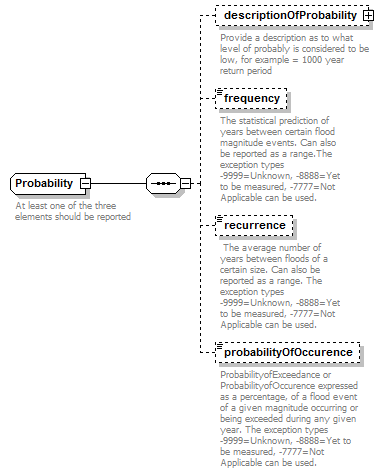

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

descriptionOfProbability frequency recurrence probabilityOfOccurence

used by

elements

HighProbability/HighProbability.Probability MediumProbability/MediumProbability.Probability LowProbability/Probability

annotation

documentation

At least one of the three elements should be reported

source

<xs:complexType name="Probability">
<xs:annotation>
    <xs:documentation>At least one of the three elements should be reported</xs:documentation>
</xs:annotation>
<xs:sequence>
    <xs:element name="descriptionOfProbability" type="fd:ReferenceType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Provide a description as to what level of probably is considered to be low, for example = 1000 year return period</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="frequency" type="fd:String50Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The statistical prediction of years between certain flood magnitude events. Can also be reported as a range.The exception types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="recurrence" type="fd:String50Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation> The average number of years between floods of a certain size. Can also be reported as a range. The exception types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="probabilityOfOccurence" type="fd:String50Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>ProbabilityofExceedance or ProbabilityofOccurence expressed as a percentage, of a flood event of a given magnitude occurring or being exceeded during any given year. The exception types
-9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

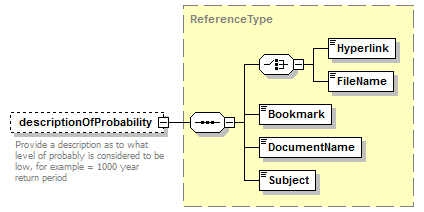

element Probability/descriptionOfProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Provide a description as to what level of probably is considered to be low, for example = 1000 year return period

source

<xs:element name="descriptionOfProbability" type="fd:ReferenceType" minOccurs="0">
<xs:annotation>
<xs:documentation>Provide a description as to what level of probably is considered to be low, for example = 1000 year return period</xs:documentation>
</xs:annotation>
</xs:element>

element Probability/frequency

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String50Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	50

annotation

documentation

The statistical prediction of years between certain flood magnitude events. Can also be reported as a range.The exception types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.

source

<xs:element name="frequency" type="fd:String50Type" minOccurs="0">
<xs:annotation>
<xs:documentation>The statistical prediction of years between certain flood magnitude events. Can also be reported as a range.The exception types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
</xs:annotation>
</xs:element>

element Probability/recurrence

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String50Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	50

annotation

documentation

The average number of years between floods of a certain size. Can also be reported as a range. The exception types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.

source

<xs:element name="recurrence" type="fd:String50Type" minOccurs="0">
<xs:annotation>
<xs:documentation> The average number of years between floods of a certain size. Can also be reported as a range. The exception types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
</xs:annotation>
</xs:element>

element Probability/probabilityOfOccurence

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String50Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	50

annotation

documentation

ProbabilityofExceedance or ProbabilityofOccurence expressed as a percentage, of a flood event of a given magnitude occurring or being exceeded during any given year. The exception types
-9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.

source

<xs:element name="probabilityOfOccurence" type="fd:String50Type" minOccurs="0">
<xs:annotation>
<xs:documentation>ProbabilityofExceedance or ProbabilityofOccurence expressed as a percentage, of a flood event of a given magnitude occurring or being exceeded during any given year. The exception types
-9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
</xs:annotation>
</xs:element>

complexType ProtectedAreas

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

protectedAreaType protectedAreaID

used by

element

Environment/ProtectedAreas

source

<xs:complexType name="ProtectedAreas">
<xs:sequence>
    <xs:element name="protectedAreaType" type="fd:ProtectedAreaType_Enum" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Potentially affected protected areas identified in Annex IV(1)(i), (iii) and (v) to Directive 2000/60/EC. Choose from the enumeration list:

- Bathing
- Birds
- Habitats
- Nitrates
- UWWT
- Article 7 Abstraction for drinking water
- WFD_WaterBodies
- EuropeanOther
- National
- Local</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="protectedAreaID" type="fd:String100Type" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>The ProtectedAreaID (uniqueID) as this has been reported under relevant directives</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element ProtectedAreas/protectedAreaType

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ProtectedAreaType_Enum

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
enumeration	Bathing
enumeration	Birds
enumeration	Habitats
enumeration	Nitrates
enumeration	UWWT
enumeration	Article 7 Abstraction for drinking water
enumeration	WFD_WaterBodies
enumeration	EuropeanOther
enumeration	National
enumeration	Local

annotation

documentation

Optional. Potentially affected protected areas identified in Annex IV(1)(i), (iii) and (v) to Directive 2000/60/EC. Choose from the enumeration list:

- Bathing
- Birds
- Habitats
- Nitrates
- UWWT
- Article 7 Abstraction for drinking water
- WFD_WaterBodies
- EuropeanOther
- National
- Local

source

<xs:element name="protectedAreaType" type="fd:ProtectedAreaType_Enum" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Potentially affected protected areas identified in Annex IV(1)(i), (iii) and (v) to Directive 2000/60/EC. Choose from the enumeration list:

- Bathing
- Birds
- Habitats
- Nitrates
- UWWT
- Article 7 Abstraction for drinking water
- WFD_WaterBodies
- EuropeanOther
- National
- Local</xs:documentation>
</xs:annotation>
</xs:element>

element ProtectedAreas/protectedAreaID

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String100Type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	100

annotation

documentation

The ProtectedAreaID (uniqueID) as this has been reported under relevant directives

source

<xs:element name="protectedAreaID" type="fd:String100Type" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>The ProtectedAreaID (uniqueID) as this has been reported under relevant directives</xs:documentation>
</xs:annotation>
</xs:element>

complexType QuantitativeLikelihood

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

LowProbability MediumProbability HighProbability

used by

element

FloodHazardMaps/QuantitativeLikelihood

source

<xs:complexType name="QuantitativeLikelihood">
<xs:sequence>
    <xs:element name="LowProbability" type="LowProbability" minOccurs="0"/>
    <xs:element name="MediumProbability" type="MediumProbability"/>
    <xs:element name="HighProbability" type="HighProbability" minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>

element QuantitativeLikelihood/LowProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

LowProbability

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

extremeEvent Probability Identifier_HLP FloodRiskMap

source

<xs:element name="LowProbability" type="LowProbability" minOccurs="0"/>

element QuantitativeLikelihood/MediumProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

MediumProbability

properties

isRef	0
content	complex

children

source

<xs:element name="MediumProbability" type="MediumProbability"/>

element QuantitativeLikelihood/HighProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

HighProbability

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

HighProbability.Probability HighProbability.HighScenario HighProbability.FloodRiskMap

source

<xs:element name="HighProbability" type="HighProbability" minOccurs="0" maxOccurs="unbounded"/>

complexType RelevantSourcesSelected

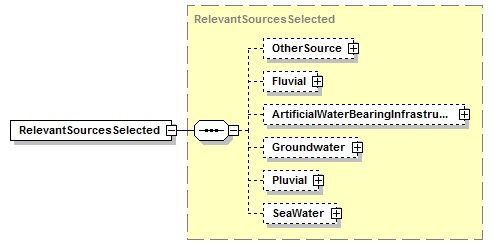

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

OtherSource Fluvial ArtificialWaterBearingInfrastructure Groundwater Pluvial SeaWater

used by

element

Summary1/RelevantSourcesSelected

source

<xs:complexType name="RelevantSourcesSelected">
<xs:sequence>
    <xs:element name="OtherSource" type="OtherSource" minOccurs="0"/>
    <xs:element name="Fluvial" type="Fluvial" minOccurs="0"/>
    <xs:element name="ArtificialWaterBearingInfrastructure" type="ArtificialWaterBearingInfrastructure" minOccurs="0"/>
    <xs:element name="Groundwater" type="Groundwater" minOccurs="0"/>
    <xs:element name="Pluvial" type="Pluvial" minOccurs="0"/>
    <xs:element name="SeaWater" type="SeaWater" minOccurs="0"/>
</xs:sequence>
</xs:complexType>

element RelevantSourcesSelected/OtherSource

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

OtherSource

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

source

<xs:element name="OtherSource" type="OtherSource" minOccurs="0"/>

element RelevantSourcesSelected/Fluvial

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Fluvial

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

source

<xs:element name="Fluvial" type="Fluvial" minOccurs="0"/>

element RelevantSourcesSelected/ArtificialWaterBearingInfrastructure

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ArtificialWaterBearingInfrastructure

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

source

<xs:element name="ArtificialWaterBearingInfrastructure" type="ArtificialWaterBearingInfrastructure" minOccurs="0"/>

element RelevantSourcesSelected/Groundwater

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Groundwater

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

source

<xs:element name="Groundwater" type="Groundwater" minOccurs="0"/>

element RelevantSourcesSelected/Pluvial

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Pluvial

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

source

<xs:element name="Pluvial" type="Pluvial" minOccurs="0"/>

element RelevantSourcesSelected/SeaWater

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

SeaWater

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

source

<xs:element name="SeaWater" type="SeaWater" minOccurs="0"/>

complexType SeaWater

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

used by

elements

RelevantSourcesSelected/SeaWater HazardElements/SeaWater

source

element SeaWater/modellingUsed

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

YesNoCode

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
enumeration	Y
enumeration	N
enumeration

annotation

documentation

Conditional. Indicate whether a modelling approach has been used to inform the development of the flood hazard and flood risk maps.

- Yes
- No

source

element SeaWater/modellingUsedDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘No’ is selected from enumeration list to indicate a modelling approach has not been used, provide a description as to what approach has been used.

source

element SeaWater/modellingUsedReference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Conditional. Provide documents or links to relevant documents covering the following areas related to the modelling approach used for seawater sources of flooding:

1. the types of models used;
2. the resolution of the models used;
3. the key datasets used in the modelling process;

As a reminder,

If providing documents describe the:

- Subject (describe in a few words the subject matter of the references provided in relation to 1 to 4 above)
- Document name (Provide the name of eachreference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the chapters, sections or page ranges where the relevant information can be found)

- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).

Please note that 1 to 3 above may be covered in a single document in which case please be careful to Bookmark the relevant chapters, sections or page ranges.

source

<xs:element name="modellingUsedReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Provide documents or links to relevant documents covering the following areas related to the modelling approach used for seawater sources of flooding:

1. the types of models used;
2. the resolution of the models used;
3. the key datasets used in the modelling process;

As a reminder,

If providing documents describe the:

- Subject (describe in a few words the subject matter of the references provided in relation to 1 to 4 above)
- Document name (Provide the name of eachreference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the chapters, sections or page ranges where the relevant information can be found)

- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).

Please note that 1 to 3 above may be covered in a single document in which case please be careful to Bookmark the relevant chapters, sections or page ranges. </xs:documentation>
</xs:annotation>
</xs:element>

element SeaWater/elementsLowProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ElementsProbability_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

source

<xs:element name="elementsLowProbability" type="fd:ElementsProbability_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Where Seawater has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Article 6.6 applied
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
</xs:element>

element SeaWater/elementsLowProbabilityOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected Provide a description

source

element SeaWater/elementsMediumProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ElementsProbability_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

source

<xs:element name="elementsMediumProbability" type="fd:ElementsProbability_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Where Seawater has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Article 6.6 applied
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
</xs:element>

element SeaWater/elementsMediumProbabilityOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected Provide a description

source

element SeaWater/elementsHighProbability

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ElementsProbability_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

source

<xs:element name="elementsHighProbability" type="fd:ElementsProbability_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Where Seawater has been selected as a relevant source of flooding indicate the different elements included in the hazard maps (one or more options can be selected):

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Article 6.6 applied
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
</xs:element>

element SeaWater/elementsHighProbabilityOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected Provide a description

source

element SeaWater/High

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

High

properties

isRef	0
content	complex

children

FloodingExtent DepthsOrWaterLevels VelocitiesOrFlows Other

source

<xs:element name="High" type="High"/>

element SeaWater/Low

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Low

properties

isRef	0
content	complex

children

FloodingExtent DepthsOrWaterLevels VelocitiesOrFlows Other

source

<xs:element name="Low" type="Low"/>

element SeaWater/Medium

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Medium

properties

isRef	0
content	complex

children

FloodingExtent DepthsOrWaterLevels VelocitiesOrFlows Other

source

<xs:element name="Medium" type="Medium"/>

complexType Summary1

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

Summary (less than 10.000 characters) on methods used to identify, assess or calculate: flooding extent (including resolution of digital terrain models); flooding probabilities (including information as to why particular probabilities have been selected) or return periods; depths or water levels; velocities or flows (where appropriate); models used, datasets, uncertainties, if and if so how, climate change has been taking into account in the mapping (article 6)

source

element Summary1/mappingApproachReferences

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Required. Provide documents or links to relevant documents covering the following areas related to the approach used in the mapping of flood hazard and flood risk:

1. Whether and how flood defences are considered;
2. Whether and how flood defence failure scenarios are considered;
3. Whether and how existing buildings and infrastructure are considered;
4. How uncertaintly has been taken account of (what approach has been used to attempt to quantify uncertianty in the mapping of flood hazard and flood risk)

As a reminder,

If providing documents describe the:

- Subject (describe in a few words the subject matter of the references provided in relation to 1 to 4 above)
- Document name (Provide the name of eachreference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the chapters, sections or page ranges where the relevant information can be found)

- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).

Please note that 1 to 4 above may be covered in a single document in which case please be careful to Bookmark the relevant chapters, sections or page ranges.

source

<xs:element name="mappingApproachReferences" type="fd:ReferenceType" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide documents or links to relevant documents covering the following areas related to the approach used in the mapping of flood hazard and flood risk:

1. Whether and how flood defences are considered;
2. Whether and how flood defence failure scenarios are considered;
3. Whether and how existing buildings and infrastructure are considered;
4. How uncertaintly has been taken account of (what approach has been used to attempt to quantify uncertianty in the mapping of flood hazard and flood risk)

As a reminder,

If providing documents describe the:

- Subject (describe in a few words the subject matter of the references provided in relation to 1 to 4 above)
- Document name (Provide the name of eachreference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the chapters, sections or page ranges where the relevant information can be found)

- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).

Please note that 1 to 4 above may be covered in a single document in which case please be careful to Bookmark the relevant chapters, sections or page ranges. </xs:documentation>
</xs:annotation>
</xs:element>

element Summary1/article14.4ClimateChange

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

YesNoCode

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
enumeration	Y
enumeration	N
enumeration

annotation

documentation

Required. Has climate change been taken into account in the mapping of flood hazard/risk? (more than one option can be selected)

- Yes
- No
- Yes but not all sources

- Yes but not for all maps

source

<xs:element name="article14.4ClimateChange" type="fd:YesNoCode" minOccurs="0">
<xs:annotation>
<xs:documentation>Required. Has climate change been taken into account in the mapping of flood hazard/risk? (more than one option can be selected)

- Yes
- No
- Yes but not all sources

- Yes but not for all maps</xs:documentation>
</xs:annotation>
</xs:element>

element Summary1/article14.4ClimateChangeReference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Required. Provide document(s) or link(s) detailing how climate change has (or links to a document providing an explanation if it has not) been taken into account in the assessment of flood hazard/risk.

source

<xs:element name="article14.4ClimateChangeReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide document(s) or link(s) detailing how climate change has (or links to a document providing an explanation if it has not) been taken into account in the assessment of flood hazard/risk. </xs:documentation>
</xs:annotation>
</xs:element>

element Summary1/relavantSource

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

RelavantSources_Enum

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Fluvial
enumeration	Pluvial
enumeration	Groundwater
enumeration	Seawater
enumeration	Artificial Water Bearing Infrastructure
enumeration	Other Source

annotation

documentation

Required. Indicate which sources of flooding are considered to be relevant to this UoM or RBD (one or more options can be selected):

- Fluvial
- Pluvial
- Groundwater
- Seawater
- Artificial Water-Bearing Infrastructure

- Other Source

source

<xs:element name="relavantSource" type="fd:RelavantSources_Enum" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Indicate which sources of flooding are considered to be relevant to this UoM or RBD (one or more options can be selected):

- Fluvial
- Pluvial
- Groundwater
- Seawater
- Artificial Water-Bearing Infrastructure

- Other Source</xs:documentation>
</xs:annotation>
</xs:element>

element Summary1/relevantSourcesOtherDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other Source’ is selected from enumeration list provide a description (this may relate to one other source or several other sources)

source

<xs:element name="relevantSourcesOtherDescription" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘Other Source’ is selected from enumeration list provide a description (this may relate to one other source or several other sources)</xs:documentation>
</xs:annotation>
</xs:element>

element Summary1/sameSourcesAsApsfr

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

YesNoCode

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	Y
enumeration	N
enumeration

annotation

documentation

Required. Indicate whether the sources mapped are the same as those considered in the APSFR. Areas for which flood hazard/risk maps should be prepared are indicated at the APSFR stage.

- Yes

- No

source

<xs:element name="sameSourcesAsApsfr" type="fd:YesNoCode">
<xs:annotation>
<xs:documentation>Required. Indicate whether the sources mapped are the same as those considered in the APSFR. Areas for which flood hazard/risk maps should be prepared are indicated at the APSFR stage.

- Yes

- No</xs:documentation>
</xs:annotation>
</xs:element>

element Summary1/sameSourcesAsApsfrDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘No’ is selected from enumeration list provide an explanation as to why the sources mapped are different to those considered in the APSFR

source

<xs:element name="sameSourcesAsApsfrDescription" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘No’ is selected from enumeration list provide an explanation as to why the sources mapped are different to those considered in the APSFR</xs:documentation>
</xs:annotation>
</xs:element>

element Summary1/returnPeriondAndProbabiltiesApproach

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReturnperiondandprobabiltiesApproach_Enum

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Expert judgment
enumeration	Other
enumeration	Statistical analysis on historical countsdata
enumeration	Statistical analysis on hydraulic modelling
enumeration	Statistical analysis on hydrological modelling
enumeration	Statistical analysis on observed/ gauging data
enumeration	Statistical analysis on rainfall data

annotation

documentation

Required. Provide an indication of the approach taken to the calculation of flood return periods and probabilities (one or more options can be selected):

- Expert judgment
- (Statistical analysis on) historical counts
- (Statistical analysis on) gauging data
- (Statistical analysison rainfall data
- (Statistical analysis on) hydrological modelling
- (Statistical analysis on) hydraulic modelling

- Other (e.g. uncertain)

source

<xs:element name="returnPeriondAndProbabiltiesApproach" type="fd:ReturnperiondandprobabiltiesApproach_Enum" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide an indication of the approach taken to the calculation of flood return periods and probabilities (one or more options can be selected):

- Expert judgment
- (Statistical analysis on) historical counts
- (Statistical analysis on) gauging data
- (Statistical analysison rainfall data
- (Statistical analysis on) hydrological modelling
- (Statistical analysis on) hydraulic modelling

- Other (e.g. uncertain)</xs:documentation>
</xs:annotation>
</xs:element>

element Summary1/returnPeriodsAndProbabilitiesApproachExpertJudgementDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String100Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	100

annotation

documentation

Conditional. If ‘Expert Judgement’ Has been selected from enumeration list, provide a brief description as to how expert judgement was used to determine flood return periods and probabilities.

source

<xs:element name="returnPeriodsAndProbabilitiesApproachExpertJudgementDescription" type="fd:String100Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘Expert Judgement’ Has been selected from enumeration list, provide a brief description as to how expert judgement was used to determine flood return periods and probabilities.</xs:documentation>
</xs:annotation>
</xs:element>

element Summary1/returnPeriodsAndProbabilitiesApproachOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ is selected from enumeration list provide a description as to why this is the case (it is acceptable to use ‘Uncertain’ but an explanation (however brief) is required)

source

<xs:element name="returnPeriodsAndProbabilitiesApproachOther" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘Other’ is selected from enumeration list provide a description as to why this is the case (it is acceptable to use ‘Uncertain’ but an explanation (however brief) is required)</xs:documentation>
</xs:annotation>
</xs:element>

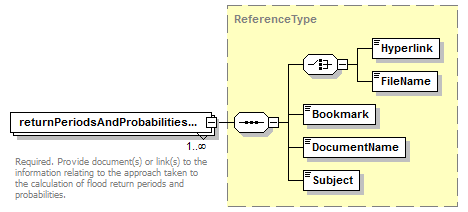

element Summary1/returnPeriodsAndProbabilitiesApproachReference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Required. Provide document(s) or link(s) to the information relating to the approach taken to the calculation of flood return periods and probabilities.

source

<xs:element name="returnPeriodsAndProbabilitiesApproachReference" type="fd:ReferenceType" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide document(s) or link(s) to the information relating to the approach taken to the calculation of flood return periods and probabilities. </xs:documentation>
</xs:annotation>
</xs:element>

element Summary1/HazardElements

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

HazardElements

properties

isRef	0
content	complex

children

Fluvial Groundwater Pluvial SeaWater ArtificialWaterBearingInfrastructure

source

<xs:element name="HazardElements" type="HazardElements"/>

element Summary1/RelevantSourcesSelected

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

RelevantSourcesSelected

properties

isRef	0
content	complex

children

OtherSource Fluvial ArtificialWaterBearingInfrastructure Groundwater Pluvial SeaWater

source

<xs:element name="RelevantSourcesSelected" type="RelevantSourcesSelected"/>

complexType Summary3

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

<xs:complexType name="Summary3">
<xs:sequence>
    <xs:element name="summary3_1Article6.5_a_MethodInhabitantsAffectedReference" type="fd:ReferenceType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) to methods (including criteria) used to determine for each flood scenario the indicative number of inhabitants affected (art 6.5.a).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="summary3_2Article6.5_b_MethodEconomicActivityAffectedReference" type="fd:ReferenceType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) to methods (including criteria) used to determine for each flood scenario the type of economic activity affected (art 6.5.b). </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="summary3_3Article6.5_c_MethodLocationIedInstallationReference" type="fd:ReferenceType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) to methods (including criteria) used to determine for each flood scenario the location of the IED installation (art 6.5.c). </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="summary3_4Article6.5_c_MethodWfdProtectedAreasReference" type="fd:ReferenceType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) to methods (including criteria) used to determine for each flood scenario the impact on WFD Protected Areas (art 6.5.c). If providing a document describe the:

- Subject (describe in a few words the subject matter of the reference provided)
- Document name (Provide the name of the reference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the chapters, sections or page ranges where the relevant information can be found)

- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="summary3_5Article6.5_d_MethodOtherInformationReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) to methods (including criteria) used to determine for each flood scenario the type of other information considered relevant by Member States (art 6.5.d). </xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element Summary3/summary3_1Article6.5_a_MethodInhabitantsAffectedReference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Required. Provide document(s) or link(s) to methods (including criteria) used to determine for each flood scenario the indicative number of inhabitants affected (art 6.5.a).

source

<xs:element name="summary3_1Article6.5_a_MethodInhabitantsAffectedReference" type="fd:ReferenceType" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide document(s) or link(s) to methods (including criteria) used to determine for each flood scenario the indicative number of inhabitants affected (art 6.5.a).</xs:documentation>
</xs:annotation>
</xs:element>

element Summary3/summary3_2Article6.5_b_MethodEconomicActivityAffectedReference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Required. Provide document(s) or link(s) to methods (including criteria) used to determine for each flood scenario the type of economic activity affected (art 6.5.b).

source

<xs:element name="summary3_2Article6.5_b_MethodEconomicActivityAffectedReference" type="fd:ReferenceType" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide document(s) or link(s) to methods (including criteria) used to determine for each flood scenario the type of economic activity affected (art 6.5.b). </xs:documentation>
</xs:annotation>
</xs:element>

element Summary3/summary3_3Article6.5_c_MethodLocationIedInstallationReference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Required. Provide document(s) or link(s) to methods (including criteria) used to determine for each flood scenario the location of the IED installation (art 6.5.c).

source

<xs:element name="summary3_3Article6.5_c_MethodLocationIedInstallationReference" type="fd:ReferenceType" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide document(s) or link(s) to methods (including criteria) used to determine for each flood scenario the location of the IED installation (art 6.5.c). </xs:documentation>
</xs:annotation>
</xs:element>

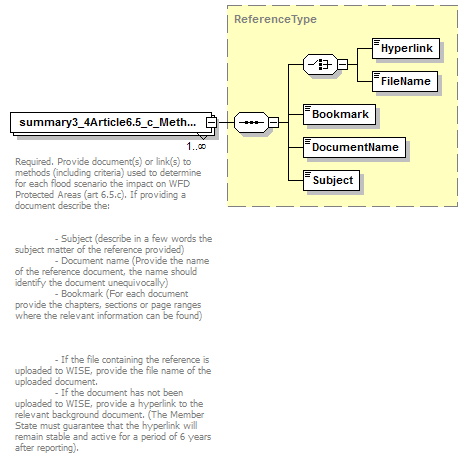

element Summary3/summary3_4Article6.5_c_MethodWfdProtectedAreasReference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Required. Provide document(s) or link(s) to methods (including criteria) used to determine for each flood scenario the impact on WFD Protected Areas (art 6.5.c). If providing a document describe the:

- Subject (describe in a few words the subject matter of the reference provided)
- Document name (Provide the name of the reference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the chapters, sections or page ranges where the relevant information can be found)

- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).

source

<xs:element name="summary3_4Article6.5_c_MethodWfdProtectedAreasReference" type="fd:ReferenceType" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide document(s) or link(s) to methods (including criteria) used to determine for each flood scenario the impact on WFD Protected Areas (art 6.5.c). If providing a document describe the:

- Subject (describe in a few words the subject matter of the reference provided)
- Document name (Provide the name of the reference document, the name should identify the document unequivocally)
- Bookmark (For each document provide the chapters, sections or page ranges where the relevant information can be found)

- If the file containing the reference is uploaded to WISE, provide the file name of the uploaded document.
- If the document has not been uploaded to WISE, provide a hyperlink to the relevant background document. (The Member State must guarantee that the hyperlink will remain stable and active for a period of 6 years after reporting).</xs:documentation>
</xs:annotation>
</xs:element>

element Summary3/summary3_5Article6.5_d_MethodOtherInformationReference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Required. Provide document(s) or link(s) to methods (including criteria) used to determine for each flood scenario the type of other information considered relevant by Member States (art 6.5.d).

source

<xs:element name="summary3_5Article6.5_d_MethodOtherInformationReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide document(s) or link(s) to methods (including criteria) used to determine for each flood scenario the type of other information considered relevant by Member States (art 6.5.d). </xs:documentation>
</xs:annotation>
</xs:element>

complexType Summary4

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

<xs:complexType name="Summary4">
<xs:sequence>
    <xs:element name="article6.2PriorInformationExchangeOccurred" type="fd:YesNoCode">
      <xs:annotation>
        <xs:documentation>
Conditional. For International UoMs/RBDs state whether prior exchange of information has taken place in the preparation of flood hazard/flood risk maps for APSFRs which are shared with other MS or non-MS (if ‘Yes’ select options from the enumeration list given in InformationExchange_2 and provide a reference document in InformationExchange_2/Reference) and If ‘No’, provide an explanation within InformationExchange_1/Description)

·         Yes
·         No</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="article6.2PriorInformationExchangeDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘No’ selected Provide an explanation</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="article6.2PriorInformationExchange" type="fd:YesNoCode" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘Other’ selected Provide an explanation</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="article6.2PriorInformationExchangeOtherDescription" type="fd:String1000Type"/>
    <xs:element name="article6.2PriorInformationExchangeReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Conditional. Provide document(s) or link(s) to evidence that the coordination mechanisms are in place for prior information exchange. </xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element Summary4/article6.2PriorInformationExchangeOccurred

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

YesNoCode

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	Y
enumeration	N
enumeration

annotation

documentation

Conditional. For International UoMs/RBDs state whether prior exchange of information has taken place in the preparation of flood hazard/flood risk maps for APSFRs which are shared with other MS or non-MS (if ‘Yes’ select options from the enumeration list given in InformationExchange_2 and provide a reference document in InformationExchange_2/Reference) and If ‘No’, provide an explanation within InformationExchange_1/Description)

· Yes
· No

source

<xs:element name="article6.2PriorInformationExchangeOccurred" type="fd:YesNoCode">
<xs:annotation>
    <xs:documentation>
Conditional. For International UoMs/RBDs state whether prior exchange of information has taken place in the preparation of flood hazard/flood risk maps for APSFRs which are shared with other MS or non-MS (if ‘Yes’ select options from the enumeration list given in InformationExchange_2 and provide a reference document in InformationExchange_2/Reference) and If ‘No’, provide an explanation within InformationExchange_1/Description)

·         Yes
·         No</xs:documentation>
</xs:annotation>
</xs:element>

element Summary4/article6.2PriorInformationExchangeDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘No’ selected Provide an explanation

source

<xs:element name="article6.2PriorInformationExchangeDescription" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘No’ selected Provide an explanation</xs:documentation>
</xs:annotation>
</xs:element>

element Summary4/article6.2PriorInformationExchange

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

YesNoCode

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
enumeration	Y
enumeration	N
enumeration

annotation

documentation

Conditional. If ‘Other’ selected Provide an explanation

source

<xs:element name="article6.2PriorInformationExchange" type="fd:YesNoCode" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘Other’ selected Provide an explanation</xs:documentation>
</xs:annotation>
</xs:element>

element Summary4/article6.2PriorInformationExchangeOtherDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

source

<xs:element name="article6.2PriorInformationExchangeOtherDescription" type="fd:String1000Type"/>

element Summary4/article6.2PriorInformationExchangeReference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Conditional. Provide document(s) or link(s) to evidence that the coordination mechanisms are in place for prior information exchange.

source

<xs:element name="article6.2PriorInformationExchangeReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Provide document(s) or link(s) to evidence that the coordination mechanisms are in place for prior information exchange. </xs:documentation>
</xs:annotation>
</xs:element>

complexType Summary5

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

summary5MapExplanationReference

<xs:complexType name="Summary5">
<xs:sequence>
    <xs:element name="summary5MapExplanationReference" type="fd:ReferenceType">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) to information that gives an explanation (to be made available to the public through WISE) on how to understand the flood maps in terms of contents, scale, purpose/use, accuracy, legends, date of publication, responsible authorities and links to further information. </xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element Summary5/summary5MapExplanationReference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Required. Provide document(s) or link(s) to information that gives an explanation (to be made available to the public through WISE) on how to understand the flood maps in terms of contents, scale, purpose/use, accuracy, legends, date of publication, responsible authorities and links to further information.

source

<xs:element name="summary5MapExplanationReference" type="fd:ReferenceType">
<xs:annotation>
<xs:documentation>Required. Provide document(s) or link(s) to information that gives an explanation (to be made available to the public through WISE) on how to understand the flood maps in terms of contents, scale, purpose/use, accuracy, legends, date of publication, responsible authorities and links to further information. </xs:documentation>
</xs:annotation>
</xs:element>

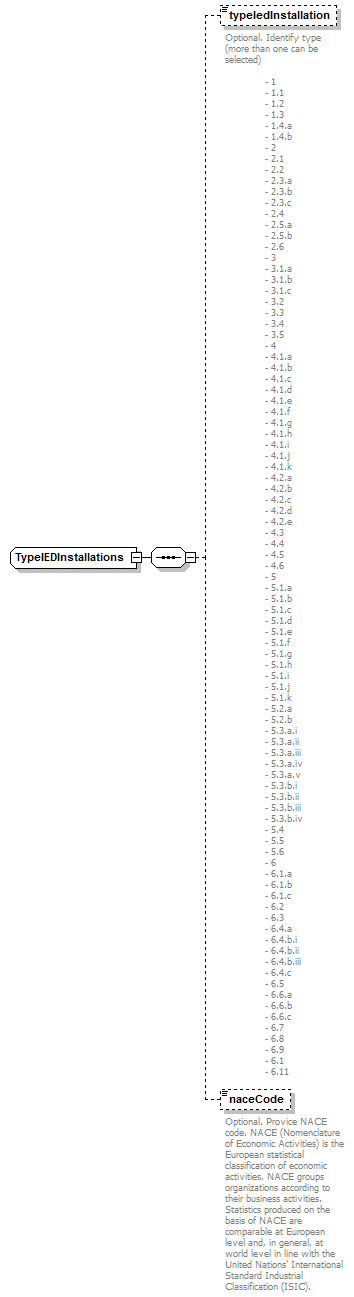

complexType TypeIEDInstallations

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

typeIedInstallation naceCode

used by

element

IEDInstallations/TypeIEDInstallations

source

<xs:complexType name="TypeIEDInstallations">
<xs:sequence>
    <xs:element name="typeIedInstallation" type="fd:NumberNonNegativeIntegerType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Identify type (more than one can be selected)

- 1
- 1.1
- 1.2
- 1.3
- 1.4.a
- 1.4.b
- 2
- 2.1
- 2.2
- 2.3.a
- 2.3.b
- 2.3.c
- 2.4
- 2.5.a
- 2.5.b
- 2.6
- 3
- 3.1.a
- 3.1.b
- 3.1.c
- 3.2
- 3.3
- 3.4
- 3.5
- 4
- 4.1.a
- 4.1.b
- 4.1.c
- 4.1.d
- 4.1.e
- 4.1.f
- 4.1.g
- 4.1.h
- 4.1.i
- 4.1.j
- 4.1.k
- 4.2.a
- 4.2.b
- 4.2.c
- 4.2.d
- 4.2.e
- 4.3
- 4.4
- 4.5
- 4.6
- 5
- 5.1.a
- 5.1.b
- 5.1.c
- 5.1.d
- 5.1.e
- 5.1.f
- 5.1.g
- 5.1.h
- 5.1.i
- 5.1.j
- 5.1.k
- 5.2.a
- 5.2.b
- 5.3.a.i
- 5.3.a.ii
- 5.3.a.iii
- 5.3.a.iv
- 5.3.a.v
- 5.3.b.i
- 5.3.b.ii
- 5.3.b.iii
- 5.3.b.iv
- 5.4
- 5.5
- 5.6
- 6
- 6.1.a
- 6.1.b
- 6.1.c
- 6.2
- 6.3
- 6.4.a
- 6.4.b.i
- 6.4.b.ii
- 6.4.b.iii
- 6.4.c
- 6.5
- 6.6.a
- 6.6.b
- 6.6.c
- 6.7
- 6.8
- 6.9
- 6.1
- 6.11</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="naceCode" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Provice NACE code. NACE (Nomenclature of Economic Activities) is the European statistical classification of economic activities. NACE groups organizations according to their business activities. Statistics produced on the basis of NACE are comparable at European level and, in general, at world level in line with the United Nations' International Standard Industrial Classification (ISIC).</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element TypeIEDInstallations/typeIedInstallation

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

NumberNonNegativeIntegerType

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

Optional. Identify type (more than one can be selected)

- 1
- 1.1
- 1.2
- 1.3
- 1.4.a
- 1.4.b
- 2
- 2.1
- 2.2
- 2.3.a
- 2.3.b
- 2.3.c
- 2.4
- 2.5.a
- 2.5.b
- 2.6
- 3
- 3.1.a
- 3.1.b
- 3.1.c
- 3.2
- 3.3
- 3.4
- 3.5
- 4
- 4.1.a
- 4.1.b
- 4.1.c
- 4.1.d
- 4.1.e
- 4.1.f
- 4.1.g
- 4.1.h
- 4.1.i
- 4.1.j
- 4.1.k
- 4.2.a
- 4.2.b
- 4.2.c
- 4.2.d
- 4.2.e
- 4.3
- 4.4
- 4.5
- 4.6
- 5
- 5.1.a
- 5.1.b
- 5.1.c
- 5.1.d
- 5.1.e
- 5.1.f
- 5.1.g
- 5.1.h
- 5.1.i
- 5.1.j
- 5.1.k
- 5.2.a
- 5.2.b
- 5.3.a.i
- 5.3.a.ii
- 5.3.a.iii
- 5.3.a.iv
- 5.3.a.v
- 5.3.b.i
- 5.3.b.ii
- 5.3.b.iii
- 5.3.b.iv
- 5.4
- 5.5
- 5.6
- 6
- 6.1.a
- 6.1.b
- 6.1.c
- 6.2
- 6.3
- 6.4.a
- 6.4.b.i
- 6.4.b.ii
- 6.4.b.iii
- 6.4.c
- 6.5
- 6.6.a
- 6.6.b
- 6.6.c
- 6.7
- 6.8
- 6.9
- 6.1
- 6.11

source

<xs:element name="typeIedInstallation" type="fd:NumberNonNegativeIntegerType" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Identify type (more than one can be selected)

- 1
- 1.1
- 1.2
- 1.3
- 1.4.a
- 1.4.b
- 2
- 2.1
- 2.2
- 2.3.a
- 2.3.b
- 2.3.c
- 2.4
- 2.5.a
- 2.5.b
- 2.6
- 3
- 3.1.a
- 3.1.b
- 3.1.c
- 3.2
- 3.3
- 3.4
- 3.5
- 4
- 4.1.a
- 4.1.b
- 4.1.c
- 4.1.d
- 4.1.e
- 4.1.f
- 4.1.g
- 4.1.h
- 4.1.i
- 4.1.j
- 4.1.k
- 4.2.a
- 4.2.b
- 4.2.c
- 4.2.d
- 4.2.e
- 4.3
- 4.4
- 4.5
- 4.6
- 5
- 5.1.a
- 5.1.b
- 5.1.c
- 5.1.d
- 5.1.e
- 5.1.f
- 5.1.g
- 5.1.h
- 5.1.i
- 5.1.j
- 5.1.k
- 5.2.a
- 5.2.b
- 5.3.a.i
- 5.3.a.ii
- 5.3.a.iii
- 5.3.a.iv
- 5.3.a.v
- 5.3.b.i
- 5.3.b.ii
- 5.3.b.iii
- 5.3.b.iv
- 5.4
- 5.5
- 5.6
- 6
- 6.1.a
- 6.1.b
- 6.1.c
- 6.2
- 6.3
- 6.4.a
- 6.4.b.i
- 6.4.b.ii
- 6.4.b.iii
- 6.4.c
- 6.5
- 6.6.a
- 6.6.b
- 6.6.c
- 6.7
- 6.8
- 6.9
- 6.1
- 6.11</xs:documentation>
</xs:annotation>
</xs:element>

element TypeIEDInstallations/naceCode

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String250Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	250

annotation

documentation

source

<xs:element name="naceCode" type="fd:String250Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Provice NACE code. NACE (Nomenclature of Economic Activities) is the European statistical classification of economic activities. NACE groups organizations according to their business activities. Statistics produced on the basis of NACE are comparable at European level and, in general, at world level in line with the United Nations' International Standard Industrial Classification (ISIC).</xs:documentation>
</xs:annotation>
</xs:element>

complexType TypeofFloods

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

used by

element

FloodHazardMaps/TypeofFloods

source

element TypeofFloods/sourceofFlooding

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

SourceofFlooding_Enum

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	A11 - Fluvial
enumeration	A12 - Pluvial
enumeration	A13 - Groundwater
enumeration	A14 - Sea Water
enumeration	A15 - Artificial Water-Bearing Infrastructure
enumeration	A16 - Other
enumeration	A17 - No data available on the source of flooding
enumeration	A18 - Source of flooding uncertain

annotation

documentation

Required. Define relevant source of flooding. The list is in line with table A1 from list of flood types from February 2011 (version 6). Indicate source of floods from enumeration list, one or more options can be selected:

- A11=Fluvial: Flooding of land by waters originating from part of a natural drainage system, including natural or modified drainage channels. This source could include flooding from rivers, streams, drainage channels, mountain torrents and ephemeral watercourses, lakes and floods arising from snow melt.
- A12=Pluvial: Flooding of land directly from rainfall water falling on, or flowing over, the land. This source could include urban storm water, rural overland flow or excess water, or overland floods arising from snowmelt.
- A13=Groundwater: Flooding of land by waters from underground rising to above the land surface. This source could include rising groundwater and underground flow from elevated surface waters.
- A14=Sea Water: Flooding of land by water from the sea, estuaries or coastal lakes. This source could include flooding from the sea (e.g., extreme tidal level and / or storm surges) or arising from wave action or coastal tsunamis.
- A15=Artificial Water-Bearing Infrastructure: Flooding of land by water arising from artificial, water-bearing infrastructure or failure of such infrastructure. This source could include flooding arising from sewerage systems (including storm water, combined and foul sewers), water supply and wastewater treatment systems, artificial navigation canals and impoundments (e.g., dams and reservoirs).
- A16=Other: Flooding of land by water due to other sources, can include other tsunamis.
- A17=No data available on the source of flooding.
- A18=Source of flooding uncertain

source

<xs:element name="sourceofFlooding" type="fd:SourceofFlooding_Enum" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Define relevant source of flooding. The list is in line with table A1 from list of flood types from February 2011 (version 6). Indicate source of floods from enumeration list, one or more options can be selected:

- A11=Fluvial: Flooding of land by waters originating from part of a natural drainage system, including natural or modified drainage channels. This source could include flooding from rivers, streams, drainage channels, mountain torrents and ephemeral watercourses, lakes and floods arising from snow melt.
- A12=Pluvial: Flooding of land directly from rainfall water falling on, or flowing over, the land. This source could include urban storm water, rural overland flow or excess water, or overland floods arising from snowmelt.
- A13=Groundwater: Flooding of land by waters from underground rising to above the land surface. This source could include rising groundwater and underground flow from elevated surface waters.
- A14=Sea Water: Flooding of land by water from the sea, estuaries or coastal lakes. This source could include flooding from the sea (e.g., extreme tidal level and / or storm surges) or arising from wave action or coastal tsunamis.
- A15=Artificial Water-Bearing Infrastructure: Flooding of land by water arising from artificial, water-bearing infrastructure or failure of such infrastructure. This source could include flooding arising from sewerage systems (including storm water, combined and foul sewers), water supply and wastewater treatment systems, artificial navigation canals and impoundments (e.g., dams and reservoirs).
- A16=Other: Flooding of land by water due to other sources, can include other tsunamis.
- A17=No data available on the source of flooding.
- A18=Source of flooding uncertain</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFloods/otherSource

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

CONDITIONAL. Provide a description if type is set to 'Other' (A16) under Source in the enumeration list

source

<xs:element name="otherSource" type="fd:String1000Type" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>CONDITIONAL. Provide a description if type is set to 'Other' (A16) under Source in the enumeration list</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFloods/sourceUncertainDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘A18=Source of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty

source

<xs:element name="sourceUncertainDescription" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘A18=Source of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty</xs:documentation>
</xs:annotation>
</xs:element>

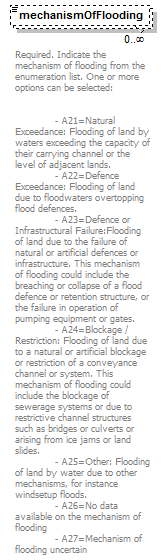

element TypeofFloods/mechanismOfFlooding

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

MechanismofFlooding_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	A21 - Natural Exceedance
enumeration	A22 - Defence Exceedance
enumeration	A23 - Defence or Infrastructural Failure
enumeration	A24 - Blockage / Restriction
enumeration	A25 - Other
enumeration	A26 - No data available on the mechanism of flooding
enumeration	A27 - Mechanism of flooding uncertain

annotation

documentation

Required. Indicate the mechanism of flooding from the enumeration list. One or more options can be selected:

- A21=Natural Exceedance: Flooding of land by waters exceeding the capacity of their carrying channel or the level of adjacent lands.
- A22=Defence Exceedance: Flooding of land due to floodwaters overtopping flood defences.
- A23=Defence or Infrastructural Failure:Flooding of land due to the failure of natural or artificial defences or infrastructure. This mechanism of flooding could include the breaching or collapse of a flood defence or retention structure, or the failure in operation of pumping equipment or gates.
- A24=Blockage / Restriction: Flooding of land due to a natural or artificial blockage or restriction of a conveyance channel or system. This mechanism of flooding could include the blockage of sewerage systems or due to restrictive channel structures such as bridges or culverts or arising from ice jams or land slides.
- A25=Other: Flooding of land by water due to other mechanisms, for instance windsetup floods.
- A26=No data available on the mechanism of flooding
- A27=Mechanism of flooding uncertain

source

<xs:element name="mechanismOfFlooding" type="fd:MechanismofFlooding_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Indicate the mechanism of flooding from the enumeration list. One or more options can be selected:

- A21=Natural Exceedance: Flooding of land by waters exceeding the capacity of their carrying channel or the level of adjacent lands.
- A22=Defence Exceedance: Flooding of land due to floodwaters overtopping flood defences.
- A23=Defence or Infrastructural Failure:Flooding of land due to the failure of natural or artificial defences or infrastructure. This mechanism of flooding could include the breaching or collapse of a flood defence or retention structure, or the failure in operation of pumping equipment or gates.
- A24=Blockage / Restriction: Flooding of land due to a natural or artificial blockage or restriction of a conveyance channel or system. This mechanism of flooding could include the blockage of sewerage systems or due to restrictive channel structures such as bridges or culverts or arising from ice jams or land slides.
- A25=Other: Flooding of land by water due to other mechanisms, for instance windsetup floods.
- A26=No data available on the mechanism of flooding
- A27=Mechanism of flooding uncertain</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFloods/otherMechanism

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. Provide a description if type is set to 'Other' (A25) under Mechanism in the enumeration list

source

<xs:element name="otherMechanism" type="fd:String1000Type" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Provide a description if type is set to 'Other' (A25) under Mechanism in the enumeration list</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFloods/mechanismUncertain

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘A27=Mechanism of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty.

source

<xs:element name="mechanismUncertain" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘A27=Mechanism of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty.</xs:documentation>
</xs:annotation>
</xs:element>

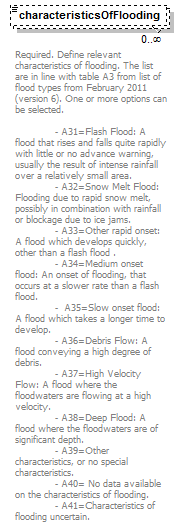

element TypeofFloods/characteristicsOfFlooding

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

CharacteristicsofFlooding_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	A31 - Flash Flood
enumeration	A32 - Snow Melt Flood
enumeration	A33 - Other rapid onset
enumeration	A34 - Medium onset flood
enumeration	A35 - Slow onset flood
enumeration	A36 - Debris Flow
enumeration	A37 - High Velocity Flow
enumeration	A38 - Deep Flood
enumeration	A39 - Other
enumeration	A40 - No data available on characteristics of flooding
enumeration	A41 - Characteristics of flooding uncertain

annotation

documentation

Required. Define relevant characteristics of flooding. The list are in line with table A3 from list of flood types from February 2011 (version 6). One or more options can be selected.

- A31=Flash Flood: A flood that rises and falls quite rapidly with little or no advance warning, usually the result of intense rainfall over a relatively small area.
- A32=Snow Melt Flood: Flooding due to rapid snow melt, possibly in combination with rainfall or blockage due to ice jams.
- A33=Other rapid onset: A flood which develops quickly, other than a flash flood .
- A34=Medium onset flood: An onset of flooding, that occurs at a slower rate than a flash flood.
- A35=Slow onset flood: A flood which takes a longer time to develop.
- A36=Debris Flow: A flood conveying a high degree of debris.
- A37=High Velocity Flow: A flood where the floodwaters are flowing at a high velocity.
- A38=Deep Flood: A flood where the floodwaters are of significant depth.
- A39=Other characteristics, or no special characteristics.
- A40= No data available on the characteristics of flooding.
- A41=Characteristics of flooding uncertain.

source

<xs:element name="characteristicsOfFlooding" type="fd:CharacteristicsofFlooding_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Define relevant characteristics of flooding. The list are in line with table A3 from list of flood types from February 2011 (version 6). One or more options can be selected.

- A31=Flash Flood: A flood that rises and falls quite rapidly with little or no advance warning, usually the result of intense rainfall over a relatively small area.
- A32=Snow Melt Flood: Flooding due to rapid snow melt, possibly in combination with rainfall or blockage due to ice jams.
- A33=Other rapid onset: A flood which develops quickly, other than a flash flood .
- A34=Medium onset flood: An onset of flooding, that occurs at a slower rate than a flash flood.
- A35=Slow onset flood: A flood which takes a longer time to develop.
- A36=Debris Flow: A flood conveying a high degree of debris.
- A37=High Velocity Flow: A flood where the floodwaters are flowing at a high velocity.
- A38=Deep Flood: A flood where the floodwaters are of significant depth.
- A39=Other characteristics, or no special characteristics.
- A40= No data available on the characteristics of flooding.
- A41=Characteristics of flooding uncertain.</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFloods/otherCharacteristics

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. Provide a description if type is set to 'Other' (A39) under Characteristics in the enumeration list

source

<xs:element name="otherCharacteristics" type="fd:String1000Type" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Provide a description if type is set to 'Other' (A39) under Characteristics in the enumeration list</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFloods/characteristicsUncertain

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

Conditional. If ‘A41=Characteristics of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty

source

<xs:element name="characteristicsUncertain" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘A41=Characteristics of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFloods/sourcesMapped

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FloodSourcesMapped_Enum

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Map shows flood extents for a single source
enumeration	Map shows flood extent for multiple
enumeration	Map shows flood extent for multiple sources resulting from combined modelling of flood sources

annotation

documentation

Required. Provide clarification of the sources presented on the map. The flood sources which are included in the map should be clearly indicated on the map.

- Map shows flood extents for a single source
- Map shows flood extent for multiple (i.e. combined) sources by overlapping individual flood sources
- Map shows flood extent for multiple sources resulting from combined modelling of flood sources (e.g. that occurred concurrently)

source

<xs:element name="sourcesMapped" type="fd:FloodSourcesMapped_Enum" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide clarification of the sources presented on the map. The flood sources which are included in the map should be clearly indicated on the map.

- Map shows flood extents for a single source
- Map shows flood extent for multiple (i.e. combined) sources by overlapping individual flood sources
- Map shows flood extent for multiple sources resulting from combined modelling of flood sources (e.g. that occurred concurrently)</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFloods/sourcesMappedReference

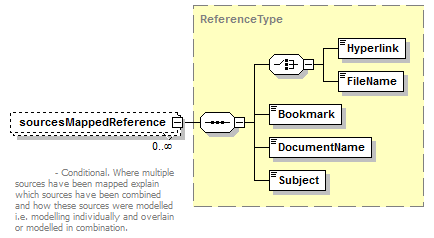

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

- Conditional. Where multiple sources have been mapped explain which sources have been combined and how these sources were modelled i.e. modelling individually and overlain or modelled in combination.

source

<xs:element name="sourcesMappedReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>
- Conditional. Where multiple sources have been mapped explain which sources have been combined and how these sources were modelled i.e. modelling individually and overlain or modelled in combination. </xs:documentation>
</xs:annotation>
</xs:element>

complexType ReferenceType

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

children

Hyperlink FileName Bookmark DocumentName Subject

used by

elements

Summary1/article14.4ClimateChangeReference Summary4/article6.2PriorInformationExchangeReference Probability/descriptionOfProbability OtherTypeofPotentialConsequences/explanationPotentialConsequence LowProbability/extremeEvent Summary1/mappingApproachReferences FloodHazardMaps/mapUpdate Fluvial/modellingUsedReference Pluvial/modellingUsedReference OtherSource/modellingUsedReference Groundwater/modellingUsedReference ArtificialWaterBearingInfrastructure/modellingUsedReference SeaWater/modellingUsedReference Environment/otherInformation Summary1/returnPeriodsAndProbabilitiesApproachReference TypeofFloods/sourcesMappedReference Summary3/summary3_1Article6.5_a_MethodInhabitantsAffectedReference Summary3/summary3_2Article6.5_b_MethodEconomicActivityAffectedReference Summary3/summary3_3Article6.5_c_MethodLocationIedInstallationReference Summary3/summary3_4Article6.5_c_MethodWfdProtectedAreasReference Summary3/summary3_5Article6.5_d_MethodOtherInformationReference Summary5/summary5MapExplanationReference

annotation

documentation

ReferenceType: Reference Structure
All the references to Methodology

source

<xs:complexType name="ReferenceType">
<xs:annotation>
    <xs:documentation>ReferenceType: Reference Structure
All the references to Methodology</xs:documentation>
</xs:annotation>
<xs:sequence>
    <xs:choice>
      <xs:element name="Hyperlink" type="URLType"/>
      <xs:element name="FileName" type="String50Type"/>
    </xs:choice>
    <xs:element name="Bookmark" type="String50Type"/>
    <xs:element name="DocumentName" type="String250Type"/>
    <xs:element name="Subject" type="String250Type"/>
</xs:sequence>
</xs:complexType>

element ReferenceType/Hyperlink

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

URLType

properties

isRef	0
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	250
pattern	https?://.*

source

<xs:element name="Hyperlink" type="URLType"/>

element ReferenceType/FileName

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

String50Type

properties

isRef	0
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	50

source

<xs:element name="FileName" type="String50Type"/>

element ReferenceType/Bookmark

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

String50Type

properties

isRef	0
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	50

source

<xs:element name="Bookmark" type="String50Type"/>

element ReferenceType/DocumentName

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

String250Type

properties

isRef	0
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	250

source

<xs:element name="DocumentName" type="String250Type"/>

element ReferenceType/Subject

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

String250Type

properties

isRef	0
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	250

source

<xs:element name="Subject" type="String250Type"/>

simpleType Article_6.6_Justification_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

MediumProbability/MediumProbability.article6.6Justification

facets

Kind	Value	annotation
enumeration	Other justification (please specify)
enumeration	Prevention of damage and damge potential through legal regulations for use (e.g. for the embankment foreland)
enumeration	Risk of failure of existing defences assessed
enumeration	Risk of overtopping of existing flood defences assessed

source

<xs:simpleType name="Article_6.6_Justification_Enum">
<xs:restriction base="xs:string">
    <xs:enumeration value="Other justification (please specify)"/>
    <xs:enumeration value="Prevention of damage and damge potential through legal regulations for use (e.g. for the embankment foreland)"/>
    <xs:enumeration value="Risk of failure of existing defences assessed"/>
    <xs:enumeration value="Risk of overtopping of existing flood defences assessed"/>
</xs:restriction>
</xs:simpleType>

simpleType Article_6.7_Justification_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

MediumProbability/MediumProbability.article6.7Justification

facets

Kind	Value	annotation
enumeration	Groundwater is considered as a contributing source rather than a main source of flooding
enumeration	It is difficult to distinguish the impact of groundwater flooding from other sources of flooding
enumeration	Only low probability groundwater flooding is assessed to be a hazardous risk
enumeration	Other justification
enumeration	There is limited information or historical records on groundwater flooding

source

<xs:simpleType name="Article_6.7_Justification_Enum">
<xs:restriction base="xs:string">
    <xs:enumeration value="Groundwater is considered as a contributing source rather than a main source of flooding"/>
    <xs:enumeration value="It is difficult to distinguish the impact of groundwater flooding from other sources of flooding"/>
    <xs:enumeration value="Only low probability groundwater flooding is assessed to be a hazardous risk"/>
    <xs:enumeration value="Other justification"/>
    <xs:enumeration value="There is limited information or historical records on groundwater flooding"/>
</xs:restriction>
</xs:simpleType>

simpleType CategoryFloods_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Past flood
enumeration	Potential future floods

annotation

documentation

Can be past flood (past) or potential future flood (future)

source

<xs:simpleType name="CategoryFloods_Enum">
<xs:annotation>
    <xs:documentation>Can be past flood (past) or potential future flood (future)</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="Past flood"/>
    <xs:enumeration value="Potential future floods"/>
</xs:restriction>
</xs:simpleType>

simpleType CharacteristicsofFlooding_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

TypeofFloods/characteristicsOfFlooding

facets

Kind	Value	annotation
enumeration	A31 - Flash Flood
enumeration	A32 - Snow Melt Flood
enumeration	A33 - Other rapid onset
enumeration	A34 - Medium onset flood
enumeration	A35 - Slow onset flood
enumeration	A36 - Debris Flow
enumeration	A37 - High Velocity Flow
enumeration	A38 - Deep Flood
enumeration	A39 - Other
enumeration	A40 - No data available on characteristics of flooding
enumeration	A41 - Characteristics of flooding uncertain

annotation

documentation

Define relevant characteristics of flooding. The list are in line with table A3 from list of flood types from February 2011 (version 6).
One or more options can be selected.

A31=Flash Flood: A flood that rises and falls quite rapidly with little or no advance warning, usually the result of intense rainfall over a relatively small area.

A36=Debris Flow: A flood conveying a high degree of debris.

A39=Other characteristics, or no special characteristics.

A40=No data available on characteristics of flooding,

A41=Characteristics of flooding uncertain.

source

simpleType ClimateChange_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	No
enumeration	Yes
enumeration	Yes but not all sources
enumeration	Yes but not for all maps

source

<xs:simpleType name="ClimateChange_Enum">
<xs:restriction base="xs:string">
    <xs:enumeration value="No"/>
    <xs:enumeration value="Yes"/>
    <xs:enumeration value="Yes but not all sources"/>
    <xs:enumeration value="Yes but not for all maps"/>
</xs:restriction>
</xs:simpleType>

simpleType ConsultationStakeholdersInvolved_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Civil Protection Authorities
enumeration	Flood Warning/ Defence Authorities
enumeration	Drainage Authorities
enumeration	Emergency services
enumeration	Water supply and sanitation
enumeration	Agriculture/farmers
enumeration	Energy/hydropower
enumeration	Navigation/ports
enumeration	Fisheries/aquaculture
enumeration	Industry
enumeration	NGO's /nature protection
enumeration	Consumer Groups
enumeration	Local/Regional authorities
enumeration	Academia/Research Institutions
enumeration	Other

annotation

documentation

Table summarising across MS, the groups of stakeholders who have been actively involved in the development of the FRMPs

source

simpleType ConsultationStakeholdersInvolvedMechanisms_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Establishment of advisory groups
enumeration	Provision of information at relevant public exhibitions or providing notices on public sites
enumeration	Stakeholder involvement in drafting
enumeration	Formation of alliances
enumeration	Other outreach activities with opportunities for discussion and dialogue
enumeration	Other

annotation

documentation

Table summarising across MS, the mechanisms used to encourage the active involvement of stakeholders in the development of the FRMPs

source

<xs:simpleType name="ConsultationStakeholdersInvolvedMechanisms_Enum">
<xs:annotation>
    <xs:documentation>Table summarising across MS, the mechanisms used to encourage the active involvement of stakeholders in the development of the FRMPs</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="Establishment of advisory groups"/>
    <xs:enumeration value="Provision of information at relevant public exhibitions or providing notices on public sites"/>
    <xs:enumeration value="Stakeholder involvement in drafting"/>
    <xs:enumeration value="Formation of alliances"/>
    <xs:enumeration value="Other outreach activities with opportunities for discussion and dialogue"/>
    <xs:enumeration value="Other"/>
</xs:restriction>
</xs:simpleType>

simpleType CoordinateType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
pattern	\-{0,1}[0-9]{1,2}\.[0-9]{1,5}

annotation

documentation

Format Decimal degrees (-)dd.ddddd

source

<xs:simpleType name="CoordinateType">
<xs:annotation>
<xs:documentation>Format Decimal degrees (-)dd.ddddd</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
<xs:pattern value="\-{0,1}[0-9]{1,2}\.[0-9]{1,5}"/>
</xs:restriction>
</xs:simpleType>

simpleType CoordinationFRMPandRBMP_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Integration of FRMP and RBMP into a single document
enumeration	Joint consultation of draft FRMP and RBMP
enumeration	Coordination between authorities responsible for developing FRMP and RBMP
enumeration	The objectives of the FD have been considered in the WFD RBMPs and PoMs
enumeration	Coordination with the environmental objectives in Art.4 of the WFD
enumeration	Planning of win-win and no regret measures in FRMP and RBMP have included drought management measures
enumeration	Planning of win-win and no regret measures in FRMP and RBMP have included Natural water retention and green infrastructure measures
enumeration	Permitting or consenting of flood risk activities (e.g. dredging, flood defence management) requires prior consideration of WFD objectives and RBMPs
enumeration	Consistent and compliant application of Article 7 and designation of HMWBs with measures taken under the FD e.g. flood defence infrastructure
enumeration	The design of new and existing structural measures such as flood defences, storage dams and tidal barriers have been adapted to take into account WFD Environmental Objectives
enumeration	The use of sustainable drainage systems, such as the construction of wetlands and porous pavements, have been considered to reduce urban flooding and also to contribute to the achievement of WFD objectives
enumeration	Other

source

simpleType CountryCode_enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

Kind	Value	annotation
enumeration	AT
enumeration	BE
enumeration	BG
enumeration	CH
enumeration	CZ
enumeration	CY
enumeration	DE
enumeration	DK
enumeration	EE
enumeration	EL
enumeration	ES
enumeration	FI
enumeration	FR
enumeration	HR
enumeration	HU
enumeration	IE
enumeration	IS
enumeration	IT
enumeration	LT
enumeration	LU
enumeration	LV
enumeration	MT
enumeration	NO
enumeration	NL
enumeration	PL
enumeration	PT
enumeration	RO
enumeration	SE
enumeration	SI
enumeration	SK
enumeration	TR
enumeration	UK

annotation

documentation

Unique 2 character ISO Code for the EU Member States

source

simpleType CriteriaForDeterminationFloodRisk_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Flood levels flow velocity depth
enumeration	Level of damage caused - High
enumeration	Level of damage caused - Low
enumeration	Level of damage caused - Medium
enumeration	Number of buildings affected
enumeration	Number of inhabitants potentially affected
enumeration	Number of properties affected
enumeration	Specific weighting systems defined to assess significance
enumeration	The presence of contaminated sited in flood prone areas
enumeration	Number of fatalities
enumeration	Value of property affected
enumeration	Area of land covered by water
enumeration	Economic losses realised
enumeration	Area of crops destroyed
enumeration	Damage to the environment and WFD protected areas
enumeration	Damage to cultural heritage
enumeration	Recurrence periods
enumeration	Recurrence periods in combination with land use
enumeration	Product of velocity and depth
enumeration	Whether floods have occurred in the past
enumeration	Predictive modelling
enumeration	Other

source

simpleType CriteriaForExclusionOrInclusion_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Changes in land use hace increased vulnerability of the area to flooding
enumeration	engineered system now in place
enumeration	Flood defences
enumeration	Flood defences not in place of not fully
enumeration	High level of damage expected
enumeration	Potential risk to cultural heritage
enumeration	Potential risk to economic activity
enumeration	Potential risk to human health
enumeration	Potential risk to the environment
enumeration	Risk from a particular source is no longer relevant
enumeration	Other non-structural mitigation measures fully implemented
enumeration	Drainage systems improved
enumeration	Low damage expected
enumeration	Risk not significant based on historic record
enumeration	Other

source

simpleType DataConfidentialityClassificationCode_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

attribute

FHRM/@classificationCode

facets

Kind	Value	annotation
enumeration	001 - Unclassified
enumeration	003 - Confidential

annotation

documentation

Codes for data security classification:
001 = Unclassified - available for general circulation and public
003 = Confidential - available for EC reporting only

source

<xs:simpleType name="DataConfidentialityClassificationCode_Enum">
<xs:annotation>
    <xs:documentation>Codes for data security classification:
001 = Unclassified - available for general circulation and public
003 = Confidential - available for EC reporting only
</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="001 - Unclassified"/>
    <xs:enumeration value="003 - Confidential"/>
</xs:restriction>
</xs:simpleType>

simpleType DateTypeYearType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

union of (xs:date, xs:gYear, xs:gYearMonth, NumberExceptionType)

annotation

documentation

Both date type yyyy-mm-dd, yyyy-mm and yyyy allowed and the exception types (-9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable)

source

<xs:simpleType name="DateTypeYearType">
<xs:annotation>
<xs:documentation>Both date type yyyy-mm-dd, yyyy-mm and yyyy allowed and the exception types (-9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable)</xs:documentation>
</xs:annotation>
<xs:union memberTypes="xs:date xs:gYear xs:gYearMonth NumberExceptionType"/>
</xs:simpleType>

simpleType ElementsProbability_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

elements

OtherSource/elementsHighProbability Fluvial/elementsHighProbability Groundwater/elementsHighProbability Pluvial/elementsHighProbability ArtificialWaterBearingInfrastructure/elementsHighProbability SeaWater/elementsHighProbability OtherSource/elementsLowProbability Groundwater/elementsLowProbability ArtificialWaterBearingInfrastructure/elementsLowProbability SeaWater/elementsLowProbability Pluvial/elementsLowProbability Fluvial/elementsLowProbability SeaWater/elementsMediumProbability ArtificialWaterBearingInfrastructure/elementsMediumProbability Pluvial/elementsMediumProbability Groundwater/elementsMediumProbability Fluvial/elementsMediumProbability OtherSource/elementsMediumProbability

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other
enumeration	Water depth/level
enumeration	Water flow/velocity

source

<xs:simpleType name="ElementsProbability_Enum">
<xs:restriction base="xs:string">
    <xs:enumeration value="Article 6.6 applied"/>
    <xs:enumeration value="Article 6.7 applied"/>
    <xs:enumeration value="Flooding Extent"/>
    <xs:enumeration value="Other"/>
    <xs:enumeration value="Water depth/level"/>
    <xs:enumeration value="Water flow/velocity"/>
</xs:restriction>
</xs:simpleType>

simpleType FeatureUniqueCodeType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

elements	FloodHazardMaps/apsfrCode Identifier_HHP/eu_Cd_Hhp Identifier_HLP/eu_Cd_Hlp Identifier_HMP/eu_Cd_Hmp FloodHazardMaps/hazardAreaCode
simpleType	FeatureUniqueCodeTypeEX

facets

Kind	Value	annotation
minLength	1
maxLength	40
whiteSpace	collapse

annotation

documentation

Type for unique code within the Member State for the feature

source

<xs:simpleType name="FeatureUniqueCodeType">
<xs:annotation>
    <xs:documentation>Type for unique code within the Member State for the feature</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="40"/>
    <xs:whiteSpace value="collapse"/>
</xs:restriction>
</xs:simpleType>

simpleType FeatureUniqueCodeTypeEX

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

union of (FeatureUniqueCodeType, NumberExceptionType)

annotation

documentation

Type for unique code within the Member State for the feature with options for exceptions. -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable.

source

<xs:simpleType name="FeatureUniqueCodeTypeEX">
<xs:annotation>
<xs:documentation>Type for unique code within the Member State for the feature with options for exceptions. -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable.</xs:documentation>
</xs:annotation>
<xs:union memberTypes="FeatureUniqueCodeType NumberExceptionType"/>
</xs:simpleType>

simpleType FeatureUniqueEUCodeType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

Kind	Value	annotation
minLength	3
maxLength	42

annotation

documentation

Type for EU code, allows up to 42 characters (unique code within MS prefixed with country ISO 2 character code

source

<xs:simpleType name="FeatureUniqueEUCodeType">
<xs:annotation>
    <xs:documentation>Type for EU code, allows up to 42 characters (unique code within MS prefixed with country ISO 2 character code</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="3"/>
    <xs:maxLength value="42"/>
</xs:restriction>
</xs:simpleType>

simpleType FloodSourcesMapped_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

TypeofFloods/sourcesMapped

facets

Kind	Value	annotation
enumeration	Map shows flood extents for a single source
enumeration	Map shows flood extent for multiple
enumeration	Map shows flood extent for multiple sources resulting from combined modelling of flood sources

source

<xs:simpleType name="FloodSourcesMapped_Enum">
<xs:restriction base="xs:string">
    <xs:enumeration value="Map shows flood extents for a single source"/>
    <xs:enumeration value="Map shows flood extent for multiple"/>
    <xs:enumeration value="Map shows flood extent for multiple sources resulting from combined modelling of flood sources"/>
</xs:restriction>
</xs:simpleType>

simpleType GeographicScale_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	A
enumeration	B

source

<xs:simpleType name="GeographicScale_Enum">
<xs:restriction base="xs:string">
<xs:enumeration value="A"/>
<xs:enumeration value="B"/>
</xs:restriction>
</xs:simpleType>

simpleType HistorialSignificantFloodsCriteria_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Flooded area
enumeration	Level of damage - High
enumeration	Level of damage - Low
enumeration	Level of damage - Medium
enumeration	Number of buildings affected
enumeration	Required amount of money in compensation
enumeration	Residents in flooded area
enumeration	Required common of moeny in compesation
enumeration	Return period, extent and duration of occurrence
enumeration	Whether a specific flood warning level was triggered
enumeration	Specific weighting systems defined to assess significance
enumeration	Expert Judgement
enumeration	Other

source

simpleType ImpactPublicParticipation_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Addition of new information
enumeration	Adjustment to specific measures
enumeration	Changes to selection of measures
enumeration	Changes to the methodology used
enumeration	Commitment to action in the next RBMP cycle
enumeration	Commitment to further research
enumeration	Other outcome

source

<xs:simpleType name="ImpactPublicParticipation_Enum">
<xs:restriction base="xs:string">
    <xs:enumeration value="Addition of new information"/>
    <xs:enumeration value="Adjustment to specific measures"/>
    <xs:enumeration value="Changes to selection of measures"/>
    <xs:enumeration value="Changes to the methodology used"/>
    <xs:enumeration value="Commitment to action in the next RBMP cycle"/>
    <xs:enumeration value="Commitment to further research"/>
    <xs:enumeration value="Other outcome"/>
</xs:restriction>
</xs:simpleType>

simpleType InternationalInformationExchange_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Bilateral border water commissions
enumeration	Informal arrangements (groups discussions and exchange of information)
enumeration	International coordination and working groups
enumeration	International River Commission
enumeration	Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action
enumeration	No information exchange
enumeration	Other
enumeration	Regulations in place to enable exchange of information at international level
enumeration	Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)

source

simpleType IssuesArticle4.2.d_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Areas of economic activity
enumeration	Floodplains as natural retention areas
enumeration	Impacts of climate change on the occurrence of floods
enumeration	Long-term developments: development of infrastructure
enumeration	Long-term developments: development of settlements
enumeration	Long-term developments: rural land-use change
enumeration	Position of watercourses and their general hydrological and geomorphological characteristics
enumeration	The effectiveness of existing man-made flood defence infrastructures
enumeration	The position of populated areas
enumeration	Topography

source

simpleType LanguageCode_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

Kind	Value	annotation
enumeration	bg
enumeration	es
enumeration	cs
enumeration	da
enumeration	de
enumeration	et
enumeration	el
enumeration	en
enumeration	fr
enumeration	ga
enumeration	hr
enumeration	ic
enumeration	it
enumeration	lv
enumeration	lt
enumeration	hu
enumeration	mt
enumeration	nl
enumeration	no
enumeration	pl
enumeration	pt
enumeration	ro
enumeration	sk
enumeration	sl
enumeration	sr
enumeration	tr
enumeration	fi
enumeration	sv

annotation

documentation

Unique 2 character ISO Code for the EU Member States language (the codes used are the ISO codes 639-1 in force, alpha-2 code)

bg=Bulgarian
es=Spanish
cs=Czech
da=Danish
de=German
et=Estonian
el=Greek
en=English
fr=French
ga=Irish
hr=Croatian
ic=Icelandic
it=Italian
lv=Latvian
lt=Lithuanian
hu=Hungarian
mt=Maltese
nl=Dutch
no=Norwegian
pl=Polish
pt=Portuguese
ro=Romanian
sk=Slovak
sl=Slovenian
sr=Serbian
tr=Tyrkish
fi=Finnish
sv=Swedish

source

simpleType LocalNationalInternationalCoordination_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Coordination of FRMPs has taken place at the international UoM/RBD level between Member States/neighbouring countries
enumeration	Coordination of FRMPs has taken place at the UoM/RBD level within the Member State
enumeration	There was a need to refer to the solidarity principle
enumeration	UoM/RBD not international
enumeration	No Coordination has taken place

annotation

documentation

Table showing whether coordination at the appropriate level has taken place across MS

source

<xs:simpleType name="LocalNationalInternationalCoordination_Enum">
<xs:annotation>
    <xs:documentation>Table showing whether coordination at the appropriate level has taken place across MS</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="Coordination of FRMPs has taken place at the international UoM/RBD level between Member States/neighbouring countries"/>
    <xs:enumeration value="Coordination of FRMPs has taken place at the UoM/RBD level within the Member State"/>
    <xs:enumeration value="There was a need to refer to the solidarity principle"/>
    <xs:enumeration value="UoM/RBD not international"/>
    <xs:enumeration value="No Coordination has taken place"/>
</xs:restriction>
</xs:simpleType>

simpleType MeasureAspect_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Aggregated
enumeration	Individual

source

<xs:simpleType name="MeasureAspect_Enum">
<xs:restriction base="xs:string">
<xs:enumeration value="Aggregated"/>
<xs:enumeration value="Individual"/>
</xs:restriction>
</xs:simpleType>

simpleType MeasureCodesProgress_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Not started
enumeration	In preparation (e.g. planning)
enumeration	On-going (one-off e.g. construction works)
enumeration	Completed

source

<xs:simpleType name="MeasureCodesProgress_Enum">
<xs:restriction base="xs:string">
    <xs:enumeration value="Not started"/>
    <xs:enumeration value="In preparation (e.g. planning)"/>
    <xs:enumeration value="On-going (one-off e.g. construction works)"/>
    <xs:enumeration value="Completed"/>
</xs:restriction>
</xs:simpleType>

simpleType MeasureType_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	M11
enumeration	M21
enumeration	M22
enumeration	M23
enumeration	M24
enumeration	M31
enumeration	M32
enumeration	M33
enumeration	M34
enumeration	M35
enumeration	M41
enumeration	M42
enumeration	M43
enumeration	M44
enumeration	M51
enumeration	M52
enumeration	M53
enumeration	M61

annotation

documentation

M11=No Action, No measure is proposed to reduce the flood risk in the APSFR or other defined area ,
M21=Prevention, Avoidance, Measure to prevent the location of new or additional receptors in flood prone areas, such as land use planning policies or regulation
M22=Prevention, Removal or relocation, Measure to remove receptors from flood prone areas, or to relocate receptors to areas of lower probability of flooding and/or of lower hazard
M23=Prevention, Reduction, Measure to adapt receptors to reduce the adverse consequences in the event of a flood actions on buildings, public networks, etc...
M24=Prevention, Other prevention, Other measure to enhance flood risk prevention (may include, flood risk modelling and assessment, flood vulnerability assessment, maintenance programmes or policies etc...)
M31=Protection Natural flood management / runoff and catchment management, Measures to reduce the flow into natural or artificial drainage systems, such as overland flow interceptors and / or storage, enhancement of infiltration, etc and including in-channel , floodplain works and the reforestation of banks, that restore natural systems to help slow flow and store water.
M32=Protection, Water flow regulation, Measures involving physical interventions to regulate flows, such as the construction, modification or removal of water retaining structures (e.g., dams or other on-line storage areas or development of existing flow regulation rules), and which have a significant impact on the hydrological regime.
M33=Protection, Channel, Coastal and Floodplain Works, Measures involving physical interventions in freshwater channels, mountain streams, estuaries, coastal waters and flood-prone areas of land, such as the construction, modification or removal of structures or the alteration of channels, sediment dynamics management, dykes, etc.
M34=Protection, Surface Water Management, Measures involving physical interventions to reduce surface water flooding, typically, but not exclusively, in an urban environment, such as enhancing artificial drainage capacities or though sustainable drainage systems (SuDS).
M35=Protection, Other Protection, Other measure to enhance protection against flooding, which may include flood defence asset maintenance programmes or policies
M41=Preparedness, Flood Forecasting and Warning, Measure to establish or enhance a flood forecasting or warning system
M42=Preparedness, Emergency Event Response Planning / Contingency planning, Measure to establish or enhance flood event institutional emergency response planning
M43=Preparedness, Public Awareness and Preparedness, Measure to establish or enhance the public awareness or preparedness for flood events
M44=Preparedness, Other preparedness, Other measure to establish or enhance preparedness for flood events to reduce adverse consequences
M51=Recovery and Review (Planning for the recovery and review phase is in principle part of preparedness), Individual and societal recovery, Clean-up and restoration activities (buildings, infrastructure, etc)
Health and mental health supporting actions, incl. managing stress
Disaster financial assistance (grants, tax), incl. disaster legal assistance, disaster unemployment assistance
Temporary or permanent relocation
Other
M52=Recovery and Review, Environmental recovery, Clean-up and restoration activities (with several sub-topics as mould protection, well-water safety and securing hazardous materials containers)
M53=Recovery and Review, Other, Other recovery and review Lessons learnt from flood events
Insurance policies
M61=Other

source

simpleType MechanismofFlooding_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

TypeofFloods/mechanismOfFlooding

facets

Kind	Value	annotation
enumeration	A21 - Natural Exceedance
enumeration	A22 - Defence Exceedance
enumeration	A23 - Defence or Infrastructural Failure
enumeration	A24 - Blockage / Restriction
enumeration	A25 - Other
enumeration	A26 - No data available on the mechanism of flooding
enumeration	A27 - Mechanism of flooding uncertain

annotation

documentation

Define relevant mechanism of flooding. The list are in line with table A2 from list of flood types from February 2011 (version 6).
One or more options can be selected.

A21=Natural Exceedance: Flooding of land by waters exceeding the capacity of their carrying channel or the level of adjacent lands.

A22=Defence Exceedance: Flooding of land due to floodwaters overtopping flood defences.

A23=Defence or Infrastructural Failure:Flooding of land due to the failure of natural or artificial defences or infrastructure. This mechanism of flooding could include the breaching or collapse of a flood defence or retention structure, or the failure in operation of pumping equipment or gates.

A24=Blockage / Restriction: Flooding of land due to a natural or artificial blockage or restriction of a conveyance channel or system. This mechanism of flooding could include the blockage of sewerage systems or due to restrictive channel structures such as bridges or culverts or arising from ice jams or land slides.

A25=Other: Flooding of land by water due to other mechanisms, for instance windsetup floods.

A26= No data available on the mechanism of flooding
A27=Mechanism of flooding uncertain

source

<xs:simpleType name="MechanismofFlooding_Enum">
<xs:annotation>
    <xs:documentation>Define relevant mechanism of flooding. The list are in line with table A2 from list of flood types from February 2011 (version 6).
One or more options can be selected.

A21=Natural Exceedance: Flooding of land by waters exceeding the capacity of their carrying channel or the level of adjacent lands.

A22=Defence Exceedance: Flooding of land due to floodwaters overtopping flood defences.

A23=Defence or Infrastructural Failure:Flooding of land due to the failure of natural or artificial defences or infrastructure. This mechanism of flooding could include the breaching or collapse of a flood defence or retention structure, or the failure in operation of pumping equipment or gates.

A24=Blockage / Restriction: Flooding of land due to a natural or artificial blockage or restriction of a conveyance channel or system. This mechanism of flooding could include the blockage of sewerage systems or due to restrictive channel structures such as bridges or culverts or arising from ice jams or land slides.

A25=Other: Flooding of land by water due to other mechanisms, for instance windsetup floods.

A26= No data available on the mechanism of flooding
A27=Mechanism of flooding uncertain</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="A21 - Natural Exceedance"/>
    <xs:enumeration value="A22 - Defence Exceedance"/>
    <xs:enumeration value="A23 - Defence or Infrastructural Failure"/>
    <xs:enumeration value="A24 - Blockage / Restriction"/>
    <xs:enumeration value="A25 - Other"/>
    <xs:enumeration value="A26 - No data available on the mechanism of flooding"/>
    <xs:enumeration value="A27 - Mechanism of flooding uncertain"/>
</xs:restriction>
</xs:simpleType>

simpleType MechanismsOfInternationalCoordination_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Bilateral border water commissions
enumeration	Informal arrangements (groups discussions and exchange of information)
enumeration	International coordination and working groups
enumeration	International River Commission
enumeration	Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action
enumeration	Regulations in place to enable exchange of information at international level
enumeration	Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)
enumeration	Other

source

simpleType NumberDecimalBaseType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:decimal

Kind	Value	annotation
minInclusive	0

source

<xs:simpleType name="NumberDecimalBaseType">
<xs:restriction base="xs:decimal">
<xs:minInclusive value="0"/>
</xs:restriction>
</xs:simpleType>

simpleType NumberDecimalType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

union of (NumberDecimalBaseType, NumberExceptionType)

annotation

documentation

Decimal with options for exceptions. -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable.

source

<xs:simpleType name="NumberDecimalType">
<xs:annotation>
<xs:documentation>Decimal with options for exceptions. -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable.</xs:documentation>
</xs:annotation>
<xs:union memberTypes="NumberDecimalBaseType NumberExceptionType"/>
</xs:simpleType>

simpleType NumberExceptionType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

simpleTypes

DateTypeYearType FeatureUniqueCodeTypeEX NumberDecimalType NumberNonNegativeIntegerType NumberPercentageType

facets

Kind	Value	annotation
minLength	3
maxLength	42

annotation

documentation

Numerical codes for data exceptions: -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable

source

<xs:simpleType name="NumberExceptionType">
<xs:annotation>
    <xs:documentation>Numerical codes for data exceptions: -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="3"/>
    <xs:maxLength value="42"/>
</xs:restriction>
</xs:simpleType>

simpleType NumberNonNegativeIntegerType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

union of (xs:nonNegativeInteger, NumberExceptionType)

used by

elements

IEDInstallations/affectedIedInstallations InhabitantsAffected/day InhabitantsAffected/night InhabitantsAffected/otherPeople InhabitantsAffected/overAll_InhabitantsAffected InhabitantsAffected/transitoryPopulation TypeIEDInstallations/typeIedInstallation

annotation

documentation

Non-negative integer with option for exceptions

source

<xs:simpleType name="NumberNonNegativeIntegerType">
<xs:annotation>
<xs:documentation>Non-negative integer with option for exceptions</xs:documentation>
</xs:annotation>
<xs:union memberTypes="xs:nonNegativeInteger NumberExceptionType"/>
</xs:simpleType>

simpleType NumberPercentageBaseType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:decimal

Kind	Value	annotation
minInclusive	0
maxInclusive	100
fractionDigits	3

annotation

documentation

Percentage with 3 decimal places

source

<xs:simpleType name="NumberPercentageBaseType">
<xs:annotation>
    <xs:documentation>Percentage with 3 decimal places</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:decimal">
    <xs:fractionDigits value="3"/>
    <xs:maxInclusive value="100"/>
    <xs:minInclusive value="0"/>
</xs:restriction>
</xs:simpleType>

simpleType NumberPercentageType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

union of (NumberPercentageBaseType, NumberExceptionType)

annotation

documentation

Percentage with option for exceptions

source

<xs:simpleType name="NumberPercentageType">
<xs:annotation>
<xs:documentation>Percentage with option for exceptions</xs:documentation>
</xs:annotation>
<xs:union memberTypes="NumberPercentageBaseType NumberExceptionType"/>
</xs:simpleType>

simpleType PotentialAdverseConsequencesCriteria_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Damage potential exceeds specific threshold (area)
enumeration	Expert Judgement
enumeration	Number of buildings affected (residential and non-residential)
enumeration	Other
enumeration	Potential adverse consequences on water bodiesSources of pollution triggered from industrial installations
enumeration	Potential adverse consequences to economic activity
enumeration	Potential adverse consequences to infrastructural assets
enumeration	Potential adverse consequences to rural land use
enumeration	Potential adverse impacts on cultural assets and cultural landscapes
enumeration	Recurrence periods
enumeration	Recurrence periods in combination with land use
enumeration	Specific weighting systems defined to assess significance
enumeration	The number of permanent residents affected by the flood extent in flood plains
enumeration	Value of property affected (residential and non-residential)
enumeration	Water level or depth
enumeration	Water velocity
enumeration	Whether floods have occurred in the past

source

simpleType PriorityCategories_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Very high
enumeration	High
enumeration	Critical
enumeration	Moderate
enumeration	Low

source

<xs:simpleType name="PriorityCategories_Enum">
<xs:restriction base="xs:string">
    <xs:enumeration value="Very high"/>
    <xs:enumeration value="High"/>
    <xs:enumeration value="Critical"/>
    <xs:enumeration value="Moderate"/>
    <xs:enumeration value="Low"/>
</xs:restriction>
</xs:simpleType>

simpleType ProtectedAreaType_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

ProtectedAreas/protectedAreaType

facets

Kind	Value	annotation
enumeration	Bathing
enumeration	Birds
enumeration	Habitats
enumeration	Nitrates
enumeration	UWWT
enumeration	Article 7 Abstraction for drinking water
enumeration	WFD_WaterBodies
enumeration	EuropeanOther
enumeration	National
enumeration	Local

annotation

documentation

Defines all Protected Area types for use in the Register of Protected Areas (Article 6)

source

simpleType PublicConsultationsMechanisms_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Media (papers, TV, radio)
enumeration	Internet
enumeration	Social networking sites
enumeration	Printed material
enumeration	Direct mailing
enumeration	Invitations to stakeholders
enumeration	Local Authorities
enumeration	Meetings with local population
enumeration	Written consultation
enumeration	Other

annotation

documentation

Table summarising the key mechanisms used for consultation across MS

source

simpleType RelavantSources_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

Summary1/relavantSource

facets

Kind	Value	annotation
enumeration	Fluvial
enumeration	Pluvial
enumeration	Groundwater
enumeration	Seawater
enumeration	Artificial Water Bearing Infrastructure
enumeration	Other Source

source

<xs:simpleType name="RelavantSources_Enum">
<xs:restriction base="xs:string">
    <xs:enumeration value="Fluvial"/>
    <xs:enumeration value="Pluvial"/>
    <xs:enumeration value="Groundwater"/>
    <xs:enumeration value="Seawater"/>
    <xs:enumeration value="Artificial Water Bearing Infrastructure"/>
    <xs:enumeration value="Other Source"/>
</xs:restriction>
</xs:simpleType>

simpleType ReturnperiondandprobabiltiesApproach_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

Summary1/returnPeriondAndProbabiltiesApproach

facets

Kind	Value	annotation
enumeration	Expert judgment
enumeration	Other
enumeration	Statistical analysis on historical countsdata
enumeration	Statistical analysis on hydraulic modelling
enumeration	Statistical analysis on hydrological modelling
enumeration	Statistical analysis on observed/ gauging data
enumeration	Statistical analysis on rainfall data

annotation

documentation

If ‘no information’ is selected justification must be provided

source

<xs:simpleType name="ReturnperiondandprobabiltiesApproach_Enum">
<xs:annotation>
    <xs:documentation>If ‘no information’ is selected justification must be provided</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="Expert judgment"/>
    <xs:enumeration value="Other"/>
    <xs:enumeration value="Statistical analysis on historical countsdata"/>
    <xs:enumeration value="Statistical analysis on hydraulic modelling"/>
    <xs:enumeration value="Statistical analysis on hydrological modelling"/>
    <xs:enumeration value="Statistical analysis on observed/ gauging data"/>
    <xs:enumeration value="Statistical analysis on rainfall data"/>
</xs:restriction>
</xs:simpleType>

simpleType SourceofFlooding_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

TypeofFloods/sourceofFlooding

facets

Kind	Value	annotation
enumeration	A11 - Fluvial
enumeration	A12 - Pluvial
enumeration	A13 - Groundwater
enumeration	A14 - Sea Water
enumeration	A15 - Artificial Water-Bearing Infrastructure
enumeration	A16 - Other
enumeration	A17 - No data available on the source of flooding
enumeration	A18 - Source of flooding uncertain

annotation

documentation

Define relevant source of flooding. The list are in line with table A1 from list of flood types from February 2011 (version 6).

One or more options can be selected.

A11=Fluvial: Flooding of land by waters originating from part of a natural drainage system, including natural or modified drainage channels. This source could include flooding from rivers, streams, drainage channels, mountain torrents and ephemeral watercourses, lakes and floods arising from snow melt.

A12=Pluvial: Flooding of land directly from rainfall water falling on, or flowing over, the land. This source could include urban storm water, rural overland flow or excess water, or overland floods arising from snowmelt.

A13=Groundwater: Flooding of land by waters from underground rising to above the land surface. This source could include rising groundwater and underground flow from elevated surface waters.

A14=Sea Water: Flooding of land by water from the sea, estuaries or coastal lakes. This source could include flooding from the sea (e.g., extreme tidal level and / or storm surges) or arising from wave action or coastal tsunamis.

A15=Artificial Water-Bearing Infrastructure: Flooding of land by water arising from artificial, water-bearing infrastructure or failure of such infrastructure. This source could include flooding arising from sewerage systems (including storm water, combined and foul sewers), water supply and wastewater treatment systems, artificial navigation canals and impoundments (e.g., dams and reservoirs).

A16=Other: Flooding of land by water due to other sources, can include other tsunamis.

- A17=No data available on the source of flooding
- A18=Source of flooding uncertain

source

simpleType String1000Type

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

elements

Summary4/article6.2PriorInformationExchangeDescription Summary4/article6.2PriorInformationExchangeOtherDescription TypeofFloods/characteristicsUncertain OtherSource/elementsHighProbabilitlyOther Groundwater/elementsHighProbabilityOther ArtificialWaterBearingInfrastructure/elementsHighProbabilityOther Fluvial/elementsHighProbabilityOther SeaWater/elementsHighProbabilityOther Pluvial/elementsHighProbabilityOther OtherSource/elementsLowProbabilitlyOther Groundwater/elementsLowProbabilityOther ArtificialWaterBearingInfrastructure/elementsLowProbabilityOther SeaWater/elementsLowProbabilityOther Pluvial/elementsLowProbabilityOther Fluvial/elementsLowProbabilityOther OtherSource/elementsMediumProbabilitlyOther SeaWater/elementsMediumProbabilityOther Pluvial/elementsMediumProbabilityOther Fluvial/elementsMediumProbabilityOther ArtificialWaterBearingInfrastructure/elementsMediumProbabilityOther Groundwater/elementsMediumProbabilityOther TypeofFloods/mechanismUncertain MediumProbability/MediumProbability.article6.6JustificationOther MediumProbability/MediumProbability.articles6.7JustificationOther OtherSource/modellingNotUsedDescription Groundwater/modellingUsedDescription ArtificialWaterBearingInfrastructure/modellingUsedDescription SeaWater/modellingUsedDescription Pluvial/modellingUsedDescription Fluvial/modellingUsedDescription TypeofFloods/otherCharacteristics TypeofFloods/otherMechanism TypeofFloods/otherSource Summary1/relevantSourcesOtherDescription Summary1/returnPeriodsAndProbabilitiesApproachOther Summary1/sameSourcesAsApsfrDescription TypeofFloods/sourceUncertainDescription

facets

Kind	Value	annotation
minLength	1
maxLength	1000

annotation

documentation

String of up to 1000 characters

source

<xs:simpleType name="String1000Type">
<xs:annotation>
    <xs:documentation>String of up to 1000 characters</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="1000"/>
</xs:restriction>
</xs:simpleType>

simpleType String100Type

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

elements

NACECodes/naceCode ProtectedAreas/protectedAreaID Summary1/returnPeriodsAndProbabilitiesApproachExpertJudgementDescription

facets

Kind	Value	annotation
minLength	1
maxLength	100

annotation

documentation

String of up to 100 characters

source

<xs:simpleType name="String100Type">
<xs:annotation>
    <xs:documentation>String of up to 100 characters</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="100"/>
</xs:restriction>
</xs:simpleType>

simpleType String2000Type

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
minLength	1
maxLength	2000

annotation

documentation

Type to enter string of 1 to 2000 characters

source

<xs:simpleType name="String2000Type">
<xs:annotation>
    <xs:documentation>Type to enter string of 1 to 2000 characters</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="2000"/>
</xs:restriction>
</xs:simpleType>

simpleType String250Type

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

elements

ReferenceType/DocumentName EPRTRCodes/eprtrCode TypeIEDInstallations/naceCode EconomicActivityConsequence/otherConsequenceDescription EnvironmentalConsequences/otherConsequenceDescription CulturalHeritageConsequence/otherConsequenceDescription ReferenceType/Subject OtherTypeofPotentialConsequences/typeOfPotentialConsequence

facets

Kind	Value	annotation
minLength	1
maxLength	250

annotation

documentation

String of up to 250 characters

source

<xs:simpleType name="String250Type">
<xs:annotation>
    <xs:documentation>String of up to 250 characters</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="250"/>
</xs:restriction>
</xs:simpleType>

simpleType String5000Type

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
minLength	1
maxLength	5000

annotation

documentation

Type to enter string of 1 to 5000 characters

source

<xs:simpleType name="String5000Type">
<xs:annotation>
    <xs:documentation>Type to enter string of 1 to 5000 characters</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="5000"/>
</xs:restriction>
</xs:simpleType>

simpleType String50Type

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

elements

ReferenceType/Bookmark ReferenceType/FileName Probability/frequency Probability/probabilityOfOccurence Probability/recurrence

facets

Kind	Value	annotation
minLength	1
maxLength	50

annotation

documentation

String of up to 50 characters

source

<xs:simpleType name="String50Type">
<xs:annotation>
    <xs:documentation>String of up to 50 characters</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="50"/>
</xs:restriction>
</xs:simpleType>

simpleType TotalDamageClass_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	H - High
enumeration	I - Insignificnt
enumeration	L - Low
enumeration	M - Medium
enumeration	NA - Not Applicable
enumeration	U - Unknown
enumeration	VH - Very high

annotation

documentation

For Insignificnt, Low, Medium, High, Very high, Not Applicable, Unknown:
U=Unknown
NA=Not Applicable
I=Insignificnt;
L=Low;
    M=Medium
    H=High
    VH=Very high

source

<xs:simpleType name="TotalDamageClass_Enum">
<xs:annotation>
    <xs:documentation>For Insignificnt, Low, Medium, High, Very high, Not Applicable, Unknown:
U=Unknown
NA=Not Applicable
I=Insignificnt;
L=Low;
    M=Medium
    H=High
    VH=Very high
</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="H - High"/>
    <xs:enumeration value="I - Insignificnt"/>
    <xs:enumeration value="L - Low"/>
    <xs:enumeration value="M - Medium"/>
    <xs:enumeration value="NA - Not Applicable"/>
    <xs:enumeration value="U - Unknown"/>
    <xs:enumeration value="VH - Very high"/>
</xs:restriction>
</xs:simpleType>

simpleType TypeCulturalHeritage_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	B31 - Cultural Assets
enumeration	B32 - Landscape
enumeration	B33 - Other
enumeration	B34 - Not applicable

annotation

documentation

Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B31=Cultural Assets: Adverse consequences to cultural heritage, which could include archaeological sites / monuments, architectural sites, museums, spiritual sites and buildings.

B32=Landscape: Adverse permanent or long-term consequences on cultural landscapes, that is cultural properties which represents the combinesd works of nature and man, such as relics of traditional landscapes, anchor locations or zones.

B33=Other

B34=Not applicable

source

<xs:simpleType name="TypeCulturalHeritage_Enum">
<xs:annotation>
    <xs:documentation>
Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B31=Cultural Assets: Adverse consequences to cultural heritage, which could include archaeological sites / monuments, architectural sites, museums, spiritual sites and buildings.

B32=Landscape: Adverse permanent or long-term consequences on cultural landscapes, that is cultural properties which represents the combinesd works of nature and man, such as relics of traditional landscapes, anchor locations or zones.

B33=Other

B34=Not applicable

</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="B31 - Cultural Assets"/>
    <xs:enumeration value="B32 - Landscape"/>
    <xs:enumeration value="B33 - Other"/>
    <xs:enumeration value="B34 - Not applicable"/>
</xs:restriction>
</xs:simpleType>

simpleType TypeEconomicActivity_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

EconomicActivityConsequence/typeEconomicActivity

facets

Kind	Value	annotation
enumeration	B40
enumeration	B41 - Property
enumeration	B42 - Infrastructure
enumeration	B43 - Rural Land Use
enumeration	B44 - Economic Activity
enumeration	B45 - Other
enumeration	B46 - Not applicable

annotation

documentation

Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B41=Property: Adverse consequences to property, which could include homes.

B42=Infrastructure: Adverse consequences to infrastructural assets such as utilities, power generation, transport, storage and communication.

B43=Rural Land Use: Adverse consequences to uses of the land, such as agricultural activity (livestock, arable and horticulture), forestry, mineral extraction and fishing.

B44=Economic Activity: Adverse consequences to sectors of economic activity, such as manufacturing, construction, retail, services and other sources of employment.

B45=Other

B46=Not applicable

source

<xs:simpleType name="TypeEconomicActivity_Enum">
<xs:annotation>
    <xs:documentation>
Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B41=Property: Adverse consequences to property, which could include homes.

B42=Infrastructure: Adverse consequences to infrastructural assets such as utilities, power generation, transport, storage and communication.

B43=Rural Land Use: Adverse consequences to uses of the land, such as agricultural activity (livestock, arable and horticulture), forestry, mineral extraction and fishing.

B44=Economic Activity: Adverse consequences to sectors of economic activity, such as manufacturing, construction, retail, services and other sources of employment.

B45=Other

B46=Not applicable
</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="B40"/>
    <xs:enumeration value="B41 - Property"/>
    <xs:enumeration value="B42 - Infrastructure"/>
    <xs:enumeration value="B43 - Rural Land Use"/>
    <xs:enumeration value="B44 - Economic Activity"/>
    <xs:enumeration value="B45 - Other"/>
    <xs:enumeration value="B46 - Not applicable"/>
</xs:restriction>
</xs:simpleType>

simpleType TypeEnvironment_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

elements

CulturalHeritageConsequence/typeCulturalHeritage EnvironmentalConsequences/typeEnvironment

facets

Kind	Value	annotation
enumeration	B20
enumeration	B21 - Waterbody Status
enumeration	B22 - Protected Areas
enumeration	B23 - Pollution Sources
enumeration	B24 - Other potential adverse environmental impacts
enumeration	B25 - Not applicable

annotation

documentation

Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B21=Waterbody Status: Adverse consequences ecological or chemical status of surface water bodies or chemical status of ground water bodies affected, as of concern under the WFD. Such consequences may arise from pollution from various sources (point and diffuse) or due to hydromorphological impacts of flooding.

B22=Protected Areas: Adverse consequences to protected areas or waterbodies such as those designated under the Birds and Habitats Directives, bathing waters or drinking water abstraction points.

B23=Pollution Sources: Sources of potential pollution in the event of a flood, such as IPPC and Seveso installations, or point or diffuse sources.

B24=Other potential adverse environmental impacts, such as those on soil, biodiversity, flora and fauna, etc.

B25=Not applicable

.

source

<xs:simpleType name="TypeEnvironment_Enum">
<xs:annotation>
    <xs:documentation>
Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B21=Waterbody Status: Adverse consequences ecological or chemical status of surface water bodies or chemical status of ground water bodies affected, as of concern under the WFD. Such consequences may arise from pollution from various sources (point and diffuse) or due to hydromorphological impacts of flooding.

B22=Protected Areas: Adverse consequences to protected areas or waterbodies such as those designated under the Birds and Habitats Directives, bathing waters or drinking water abstraction points.

B23=Pollution Sources: Sources of potential pollution in the event of a flood, such as IPPC and Seveso installations, or point or diffuse sources.

B24=Other potential adverse environmental impacts, such as those on soil, biodiversity, flora and fauna, etc.

B25=Not applicable

.</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="B20"/>
    <xs:enumeration value="B21 - Waterbody Status"/>
    <xs:enumeration value="B22 - Protected Areas"/>
    <xs:enumeration value="B23 - Pollution Sources"/>
    <xs:enumeration value="B24 - Other potential adverse environmental impacts"/>
    <xs:enumeration value="B25 - Not applicable"/>
</xs:restriction>
</xs:simpleType>

simpleType TypeHumanHealth_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	B10
enumeration	B11 - Human Health
enumeration	B12 - Community
enumeration	B13 - Other
enumeration	B14 - Not applicaple

annotation

documentation

Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B11=Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities.

B12=Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals).

B13=Other

B14=Not applicaple

source

<xs:simpleType name="TypeHumanHealth_Enum">
<xs:annotation>
    <xs:documentation>
Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B11=Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities.

B12=Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals).

B13=Other

B14=Not applicaple

</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="B10"/>
    <xs:enumeration value="B11 - Human Health"/>
    <xs:enumeration value="B12 - Community"/>
    <xs:enumeration value="B13 - Other"/>
    <xs:enumeration value="B14 - Not applicaple"/>
</xs:restriction>
</xs:simpleType>

simpleType URLType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

ReferenceType/Hyperlink

facets

Kind	Value	annotation
minLength	1
maxLength	250
pattern	https?://.*

annotation

documentation

URL string of up to 250 characters

source

<xs:simpleType name="URLType">
<xs:annotation>
    <xs:documentation>URL string of up to 250 characters</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="250"/>
    <xs:pattern value="https?://.*"/>
</xs:restriction>
</xs:simpleType>

simpleType WiseDate

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:date

Kind	Value	annotation
pattern	\d{4}-\d{2}-\d{2}

source

<xs:simpleType name="WiseDate">
<xs:restriction base="xs:date">
<xs:pattern value="\d{4}-\d{2}-\d{2}"/>
</xs:restriction>
</xs:simpleType>

simpleType WiseDateTime

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:dateTime

Kind	Value	annotation
pattern	\d{4}-\d{2}-\d{2}T\d{2}:\d{2}:\d{2}

source

<xs:simpleType name="WiseDateTime">
<xs:restriction base="xs:dateTime">
<xs:pattern value="\d{4}-\d{2}-\d{2}T\d{2}:\d{2}:\d{2}"/>
</xs:restriction>
</xs:simpleType>

simpleType WiseDateTimeType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

union of (WiseDate, WiseDateTime, WiseYear, WiseYearMonth)

annotation

documentation

Dates must be reported using the ISO 8601 extended format: YYYY-MM-DD, for days; YYYY-MM, for months; YYYY, for years. (If necessary, or convenient, time values can be reported. The ISO 8601 extended format for UTC time should be used.)

source

<xs:simpleType name="WiseDateTimeType">
<xs:annotation>
<xs:documentation>Dates must be reported using the ISO 8601 extended format: YYYY-MM-DD, for days; YYYY-MM, for months; YYYY, for years. (If necessary, or convenient, time values can be reported. The ISO 8601 extended format for UTC time should be used.)</xs:documentation>
</xs:annotation>
<xs:union memberTypes="WiseDate WiseDateTime WiseYear WiseYearMonth"/>
</xs:simpleType>

simpleType WiseEvolutionTypeValue

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	aggregation
enumeration	change
enumeration	changeBothAggregationAndSplitting
enumeration	changeCode
enumeration	changeExtendedArea
enumeration	changeReducedArea
enumeration	creation
enumeration	deletion
enumeration	noChange
enumeration	other
enumeration	splitting

source

simpleType WiseLanguageCode_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	alb
enumeration	arm
enumeration	baq
enumeration	bel
enumeration	bul
enumeration	cat
enumeration	cze
enumeration	dan
enumeration	dut
enumeration	eng
enumeration	est
enumeration	fao
enumeration	fin
enumeration	fre
enumeration	geo
enumeration	ger
enumeration	gle
enumeration	glg
enumeration	gre
enumeration	hrv
enumeration	hun
enumeration	ice
enumeration	ita
enumeration	lav
enumeration	lit
enumeration	ltz
enumeration	mac
enumeration	mis
enumeration	mlt
enumeration	nor
enumeration	pol
enumeration	por
enumeration	roh
enumeration	rum
enumeration	rus
enumeration	slo
enumeration	slv
enumeration	spa
enumeration	srp
enumeration	swe
enumeration	tur
enumeration	ukr
